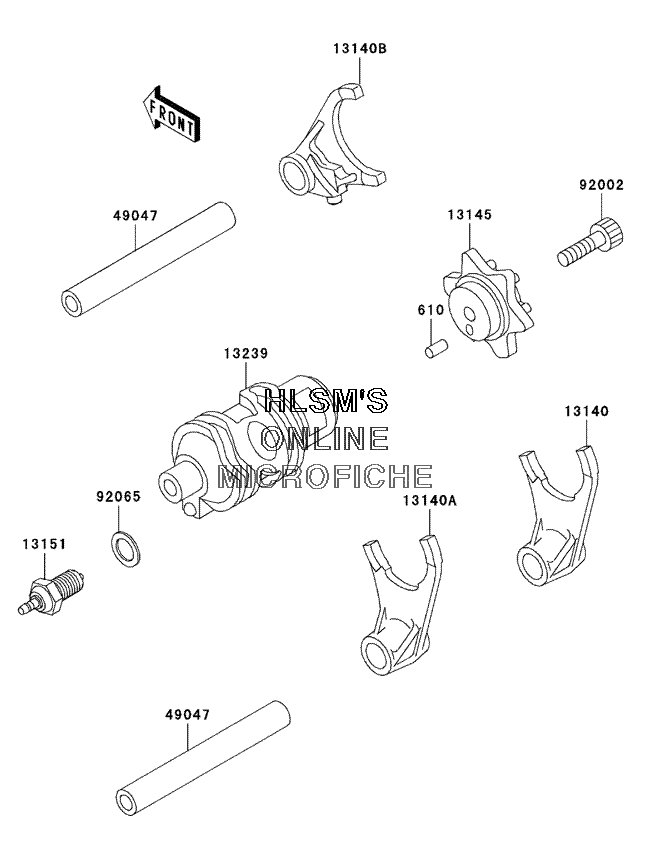

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki KLR650 - 2005 года выпуска
-
№АртикулНазвание
-
610610A0410 ROLLER, 4X10ROLLER, 4X10
-
1314013140-1023 FORK, SHIFT, LOWFORK, SHIFT, LOW
-
13140A13140-1024 FORK, SHIFT, 2ND AND 3RDFORK, SHIFT, 2ND AND 3RD
-
13140B13140-1288 FORK, SHIFT, 4TH AND TOP, 36MMFORK, SHIFT, 4TH AND TOP, 36MM
-
1314513145-1051 CAM, CHANGE DRUMCAM, CHANGE DRUM
-
1315113151-1080 SWITCH, COMP, NEUTRALSWITCH, COMP, NEUTRAL
-
1323913239-1103 DRUM, ASSY, CHANGEDRUM, ASSY, CHANGE
-
4904749047-1003 ROD, SHIFT, L=93.7ROD, SHIFT, L=93.7
-
9200292002-1696 BOLT, SOCKET, 6X25BOLT, SOCKET, 6X25
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
