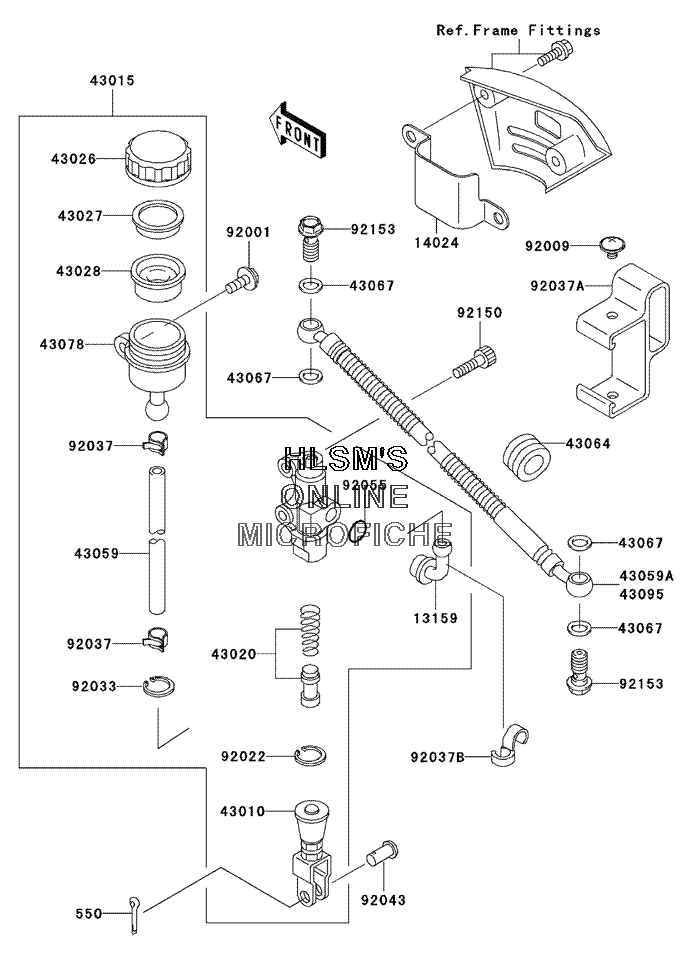

BRAKE - MASTER CYLINDER - REAR для Kawasaki KLR650 - 2005 года выпуска
-
№АртикулНазвание
-
550550D2015 PIN, COTTER, 2.0X15PIN, COTTER, 2.0X15
-
1315913159-1056 CONNECTORCONNECTOR
-
1402414024-1531 COVER, RESERVOIR TANKCOVER, RESERVOIR TANK
-
4301043010-1062 ROD, ASSY, BRAKEROD, ASSY, BRAKE
-
4301543015-1365 CYLINDER, ASSY, MASTER, REARCYLINDER, ASSY, MASTER, REAR
-
4302043020-1063 PISTON, COMP, BRAKEPISTON, COMP, BRAKE
-
4302643026-1064 CAP, BRAKECAP, BRAKE
-
4302743027-1053 PLATE, DIAPHRAGMPLATE, DIAPHRAGM
-
4302843028-1065 DIAPHRAGMDIAPHRAGM
-
4305943059-1408 HOSE, BRAKEHOSE, BRAKE
-
4306443064-007 GROMMET, HOSE CLAMPGROMMET, HOSE CLAMP
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4307843078-1080 RESERVOIRRESERVOIR
-
4309543095-1341 HOSE, BRAKE, REARHOSE, BRAKE, REAR
-
9200192001-1860 BOLT, W/P, 6X16BOLT, W/P, 6X16
-
9200992009-1286 SCREW, 6X10 (WHITE)SCREW, 6X10 (WHITE)
-
9202292022-1601 WASHER, CIRCRIPWASHER, CIRCRIP
-
9203392033-1186 RING, SNAP, 20.5MMRING, SNAP, 20.5MM
-
9203792037-1710 CLAMPCLAMP
-
92037A92037-1895 CLAMP, HOSECLAMP, HOSE
-
92037B92037-1914 CLAMP, HOSECLAMP, HOSE
-
9204392043-1303 PIN, 8MMPIN, 8MM
-
9205592055-1251 O-RING, MASTER CYLINDERO-RING, MASTER CYLINDER
-
9215092150-1843 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
