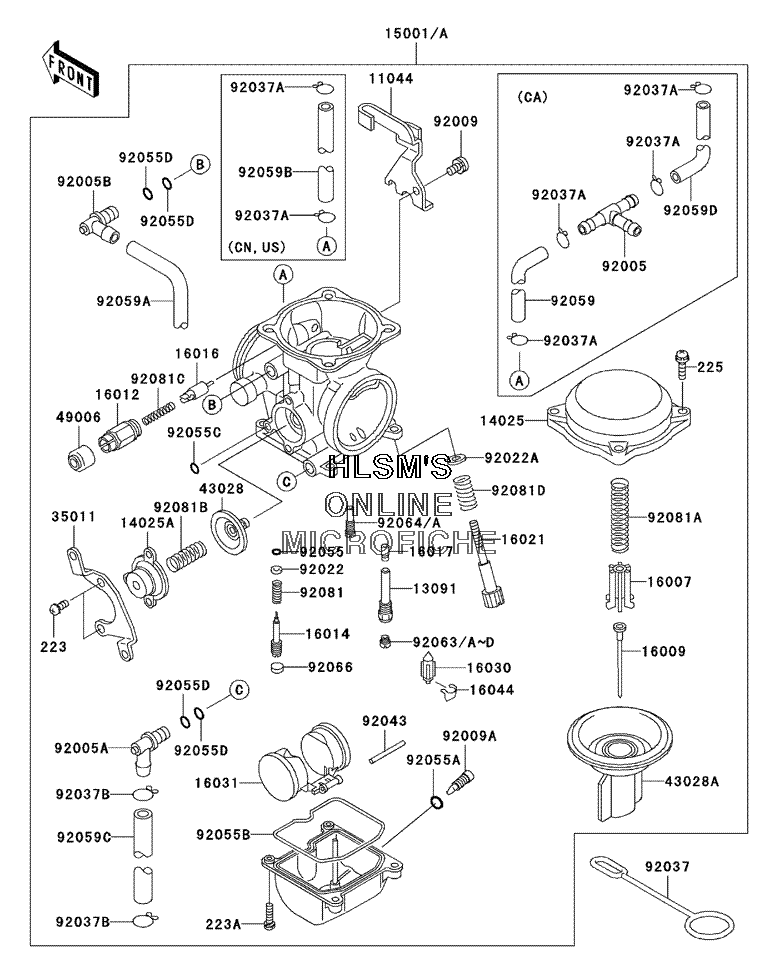

CARBURETOR для Kawasaki KLR650 - 2005 года выпуска

  • №
    Артикул
    Название
  • 11044
    11044-1353 BRACKET, THROTTLE CABLE
    BRACKET, THROTTLE CABLE
  • 13091
    13091-1425 HOLDER, NEEDLE JET
    HOLDER, NEEDLE JET
  • 14025
    14025-1890 COVER, MIXING CHAMBER
    COVER, MIXING CHAMBER
  • 14025A
    14025-1903 COVER, AIR CUT VALVE
    COVER, AIR CUT VALVE
  • 15001
    15001-1327 CARBURETOR, ASSY (EXCEPT CALIF.)
    CARBURETOR, ASSY (EXCEPT CALIF.)
  • 15001A
    15001-1368 CARBURETOR, ASSY (CALIF. ONLY)
    CARBURETOR, ASSY (CALIF. ONLY)
  • 16007
    16007-1113 SEAT, SPRING, DIAPHRAGM VALVE
    SEAT, SPRING, DIAPHRAGM VALVE
  • 16009
    16009-1344 NEEDLE, JET, N31R
    NEEDLE, JET, N31R
  • 16012
    16012-1055 CAP, STARTER PLUNGER
    CAP, STARTER PLUNGER
  • 16014
    16014-1053 SCREW, PILOT AIR
    SCREW, PILOT AIR
  • 16016
    16016-1057 PLUNGER
    PLUNGER
  • 16017
    16017-1254 JET, NEEDLE, #6
    JET, NEEDLE, #6
  • 16021
    16021-1109 SCREW, THROTTLE STOP
    SCREW, THROTTLE STOP
  • 16030
    16030-1057 VALVE, FLOAT
    VALVE, FLOAT
  • 16031
    16031-1056 FLOAT
    FLOAT
  • 16044
    16044-007 CLAMP, FLOAT VALVE
    CLAMP, FLOAT VALVE
  • 35011
    35011-1232 STAY, AIR CUT VALVE
    STAY, AIR CUT VALVE
  • 43028
    43028-1053 DIAPHRAGM, 5.9MM, AIR CUT VALVE
    DIAPHRAGM, 5.9MM, AIR CUT VALVE
  • 43028A
    43028-1062 DIAPHRAGM, VALVE
    DIAPHRAGM, VALVE
  • 49006
    49006-1165 BOOT, STARTER PLUNGER
    BOOT, STARTER PLUNGER
  • 92005
    92005-1112 FITTING, FUEL, T, TYPE (CALIF. ONLY)
    FITTING, FUEL, T, TYPE (CALIF. ONLY)
  • 92005A
    92005-1120 FITTING, L, TYPE
    FITTING, L, TYPE
  • 92005B
    92005-1144 FITTING, L, TYPE
    FITTING, L, TYPE
  • 92009
    92009-1365 SCREW, 5X10
    SCREW, 5X10
  • 92009A
    92009-1551 SCREW, DRAIN, M6X0.75
    SCREW, DRAIN, M6X0.75
  • 92022
    92022-1003 WASHER, PLAIN
    WASHER, PLAIN
  • 92022A
    92022-1587 WASHER, THROTTLE STOP SCREW
    WASHER, THROTTLE STOP SCREW
  • 92037
    92037-134 CLAMP, OVERFLOW TUBE
    CLAMP, OVERFLOW TUBE
  • 92037A
    92037-1477 CLAMP, TUBE (EXCEPT CALIF.)
    CLAMP, TUBE (EXCEPT CALIF.)
  • 92037A
    92037-1477 CLAMP, TUBE (CALIF. ONLY)
    CLAMP, TUBE (CALIF. ONLY)
  • 92037B
    92037-1531 CLAMP, TUBE
    CLAMP, TUBE
  • 223
    223C0410 SCREW, PAN, WS, CROS
    SCREW, PAN, WS, CROS
  • 223A
    223C0416 SCREW, PAN, WS, CROS
    SCREW, PAN, WS, CROS
  • 225
    225C0418 SCREW, PAN, WSP, CROS
    SCREW, PAN, WSP, CROS
  • 92043
    92043-1207 PIN, FLOAT
    PIN, FLOAT
  • 92055
    92055-1002 O-RING, PILOT ADJUST
    O-RING, PILOT ADJUST
  • 92055A
    92055-1053 O-RING
    O-RING
  • 92055B
    92055-1222 O-RING, FLOAT CHAMBER
    O-RING, FLOAT CHAMBER
  • 92055C
    92055-1245 O-RING
    O-RING
  • 92055D
    92055-1246 O-RING
    O-RING
  • 92059
    92059-1713 TUBE, 5X9X120 (CALIF. ONLY)
    TUBE, 5X9X120 (CALIF. ONLY)
  • 92059A
    92059-1727 TUBE, 6.5X9.5X430
    TUBE, 6.5X9.5X430
  • 92059B
    92059-1836 TUBE, 5X9X220 (EXCEPT CALIF.)
    TUBE, 5X9X220 (EXCEPT CALIF.)
  • 92059C
    92059-1837 TUBE, 6.5X11.5X170
    TUBE, 6.5X11.5X170
  • 92059D
    92059-1839 TUBE, 5X9X100 (CALIF. ONLY)
    TUBE, 5X9X100 (CALIF. ONLY)
  • 92063
    92063-1016 JET, MAIN, #142 (OFF ROAD USE ONLY)
    JET, MAIN, #142 (OFF ROAD USE ONLY)
  • 92063A
    92063-1017 JET, MAIN, #145 (OFF ROAD USE ONLY)
    JET, MAIN, #145 (OFF ROAD USE ONLY)
  • 92063B
    92063-1324 JET, MAIN, #148
    JET, MAIN, #148
  • 92063C
    92063-1330 JET, MAIN, #150 (OFF ROAD USE ONLY)
    JET, MAIN, #150 (OFF ROAD USE ONLY)
  • 92063D
    92063-1331 JET, MAIN, #152 (OFF ROAD USE ONLY)
    JET, MAIN, #152 (OFF ROAD USE ONLY)
  • 92064
    92064-1050 JET, PILOT, #38 (OPT)
    JET, PILOT, #38 (OPT)
  • 92064A
    92064-1108 JET, PILOT, #40
    JET, PILOT, #40
  • 92066
    92066-1051 PLUG, PILOT AIR SCREW, 6.9X2
    PLUG, PILOT AIR SCREW, 6.9X2
  • 92081
    92081-1002 SPRING, PILOT ADJUST SCREW
    SPRING, PILOT ADJUST SCREW
  • 92081A
    92081-1718 SPRING, DIAPHRAGM VALVE
    SPRING, DIAPHRAGM VALVE
  • 92081B
    92081-1719 SPRING, AIR CUT VALVE
    SPRING, AIR CUT VALVE
  • 92081C
    92081-1720 SPRING, PLUNGER
    SPRING, PLUNGER
  • 92081D
    92081-1721 SPRING, THROTTLE STOP SCREW
    SPRING, THROTTLE STOP SCREW
