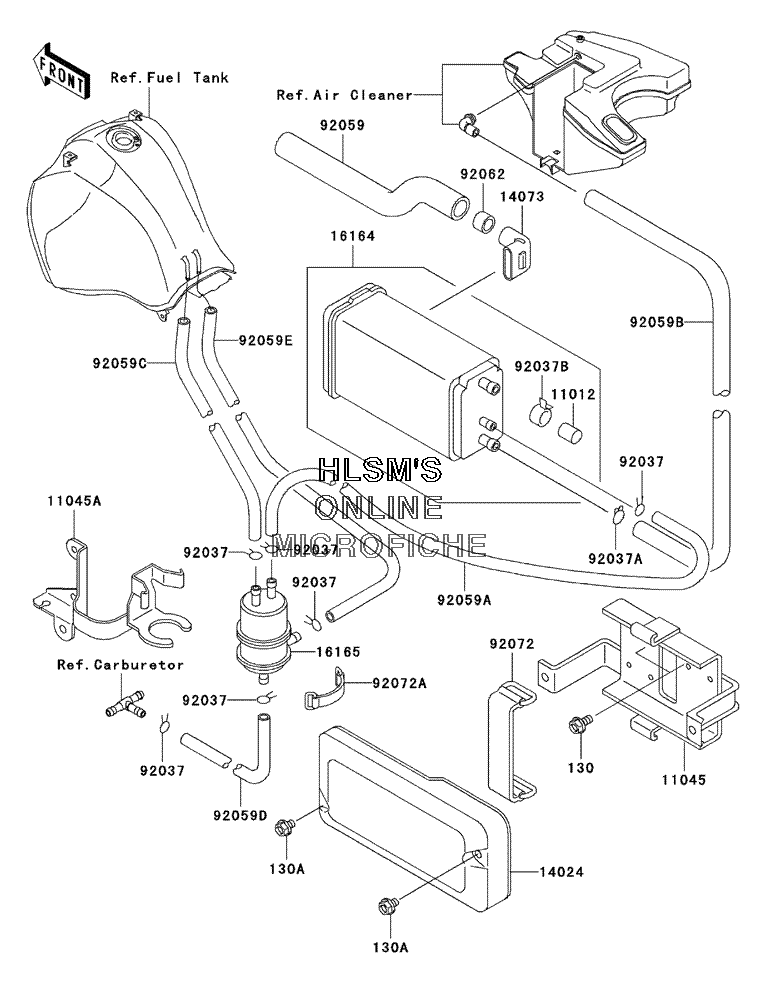

FUEL EVAPORATIVE SYSTEM (CALIF. ONLY) для Kawasaki KLR650 - 2005 года выпуска

  • №
    Артикул
    Название
  • 11012
    11012-1388 CAP, CANISTER (CALIF. ONLY)
    CAP, CANISTER (CALIF. ONLY)
  • 11045
    11045-1416 BRACKET, CANISTER (CALIF. ONLY)
    BRACKET, CANISTER (CALIF. ONLY)
  • 11045A
    11045-1417 BRACKET, SEPARATOR (CALIF. ONLY)
    BRACKET, SEPARATOR (CALIF. ONLY)
  • 14024
    14024-1401 COVER, CANISTER (CALIF. ONLY)
    COVER, CANISTER (CALIF. ONLY)
  • 14073
    14073-1219 DUCT, CANISTER (CALIF. ONLY)
    DUCT, CANISTER (CALIF. ONLY)
  • 16164
    16164-1054 CANISTER (CALIF. ONLY)
    CANISTER (CALIF. ONLY)
  • 16165
    16165-1001 SEPARATOR (CALIF. ONLY)
    SEPARATOR (CALIF. ONLY)
  • 92037
    92037-072 CLAMP, TUBE (CALIF. ONLY)
    CLAMP, TUBE (CALIF. ONLY)
  • 92037A
    92037-1104 CLAMP, HOSE (CALIF. ONLY)
    CLAMP, HOSE (CALIF. ONLY)
  • 92037B
    92037-1512 CLAMP, CANISTER (CALIF. ONLY)
    CLAMP, CANISTER (CALIF. ONLY)
  • 92059
    92059-1800 TUBE, 14X20X200 (CALIF. ONLY)
    TUBE, 14X20X200 (CALIF. ONLY)
  • 92059A
    92059-1801 TUBE, 5X9X890 (BLUE) (CALIF. ONLY)
    TUBE, 5X9X890 (BLUE) (CALIF. ONLY)
  • 92059B
    92059-1802 TUBE, 7X12X770 (GREEN) (CALIF. ONLY)
    TUBE, 7X12X770 (GREEN) (CALIF. ONLY)
  • 92059C
    92059-1803 TUBE, 5X9X300 (RED) (CALIF. ONLY)
    TUBE, 5X9X300 (RED) (CALIF. ONLY)
  • 92059D
    92059-1804 TUBE, 4X9X310 (WHITE) (CALIF. ONLY)
    TUBE, 4X9X310 (WHITE) (CALIF. ONLY)
  • 130
    130J0612 BOLT, FLANGED (CALIF. ONLY)
    BOLT, FLANGED (CALIF. ONLY)
  • 130A
    130L0608 BOLT, FLANGED (CALIF. ONLY)
    BOLT, FLANGED (CALIF. ONLY)
  • 92059E
    92059-1805 TUBE, 5X9X400 (BLUE) (CALIF. ONLY)
    TUBE, 5X9X400 (BLUE) (CALIF. ONLY)
  • 92062
    92062-1070 NOZZLE, CANISTER (CALIF. ONLY)
    NOZZLE, CANISTER (CALIF. ONLY)
  • 92072
    92072-045 BAND, L=90 (CALIF. ONLY)
    BAND, L=90 (CALIF. ONLY)
  • 92072A
    92072-1419 BAND, L=50 (CALIF. ONLY)
    BAND, L=50 (CALIF. ONLY)
