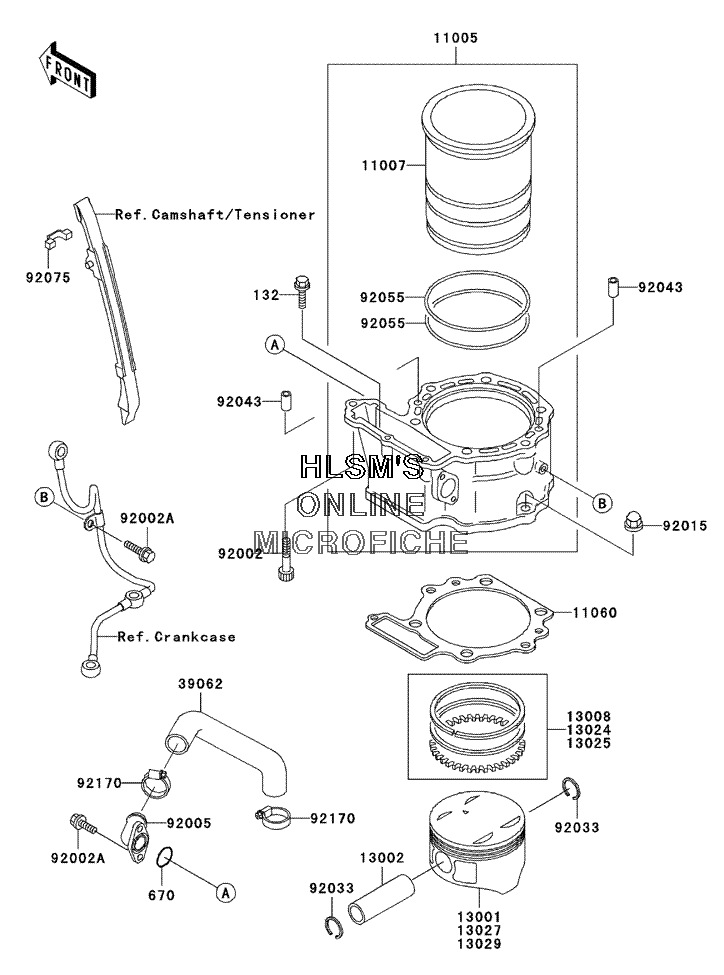

CYLINDER - PISTON(S) для Kawasaki KLR650 - 2005 года выпуска

  • №
    Артикул
    Название
  • 132
    132G0625 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 670
    670B2018 O-RING, 18MM
    O-RING, 18MM
  • 11005
    11005-1781 CYLINDER, ENGINE
    CYLINDER, ENGINE
  • 11007
    11007-1137 LINER, CYLINDER
    LINER, CYLINDER
  • 11060
    11060-1110 GASKET, CYLINDER BASE
    GASKET, CYLINDER BASE
  • 13001
    13001-1284 PISTON, ENGINE, STD
    PISTON, ENGINE, STD
  • 13002
    13002-1101 PIN, PISTON
    PIN, PISTON
  • 13008
    13008-1081 RING, SET, PISTON, STD
    RING, SET, PISTON, STD
  • 13024
    13024-1071 RING, SET, PISTON LL, O/S 1.00
    RING, SET, PISTON LL, O/S 1.00
  • 13025
    13025-1078 RING, SET, PISTON L, O/S 0.50
    RING, SET, PISTON L, O/S 0.50
  • 13027
    13027-1153 PISTON, ENGINE LL, O/S 1.00
    PISTON, ENGINE LL, O/S 1.00
  • 13029
    13029-1176 PISTON, ENGINE L, O/S 0.50
    PISTON, ENGINE L, O/S 0.50
  • 39062
    39062-1216 HOSE, COOLING, PUMP, CYLINDER
    HOSE, COOLING, PUMP, CYLINDER
  • 92002
    92002-1409 BOLT, SOCKET, 8X35
    BOLT, SOCKET, 8X35
  • 92002A
    92002-1569 BOLT, 6X12
    BOLT, 6X12
  • 92005
    92005-1279 FITTING
    FITTING
  • 92015
    92015-1982 NUT, CAP, 8MM
    NUT, CAP, 8MM
  • 92033
    92033-1226 RING, SNAP
    RING, SNAP
  • 92043
    92043-1263 PIN, 6.2X8X14
    PIN, 6.2X8X14
  • 92055
    92055-1371 O-RING, 110.5X2.5
    O-RING, 110.5X2.5
  • 92075
    92075-1968 DAMPER
    DAMPER
  • 92170
    92170-1033 CLAMP, COOLING HOSE
    CLAMP, COOLING HOSE
