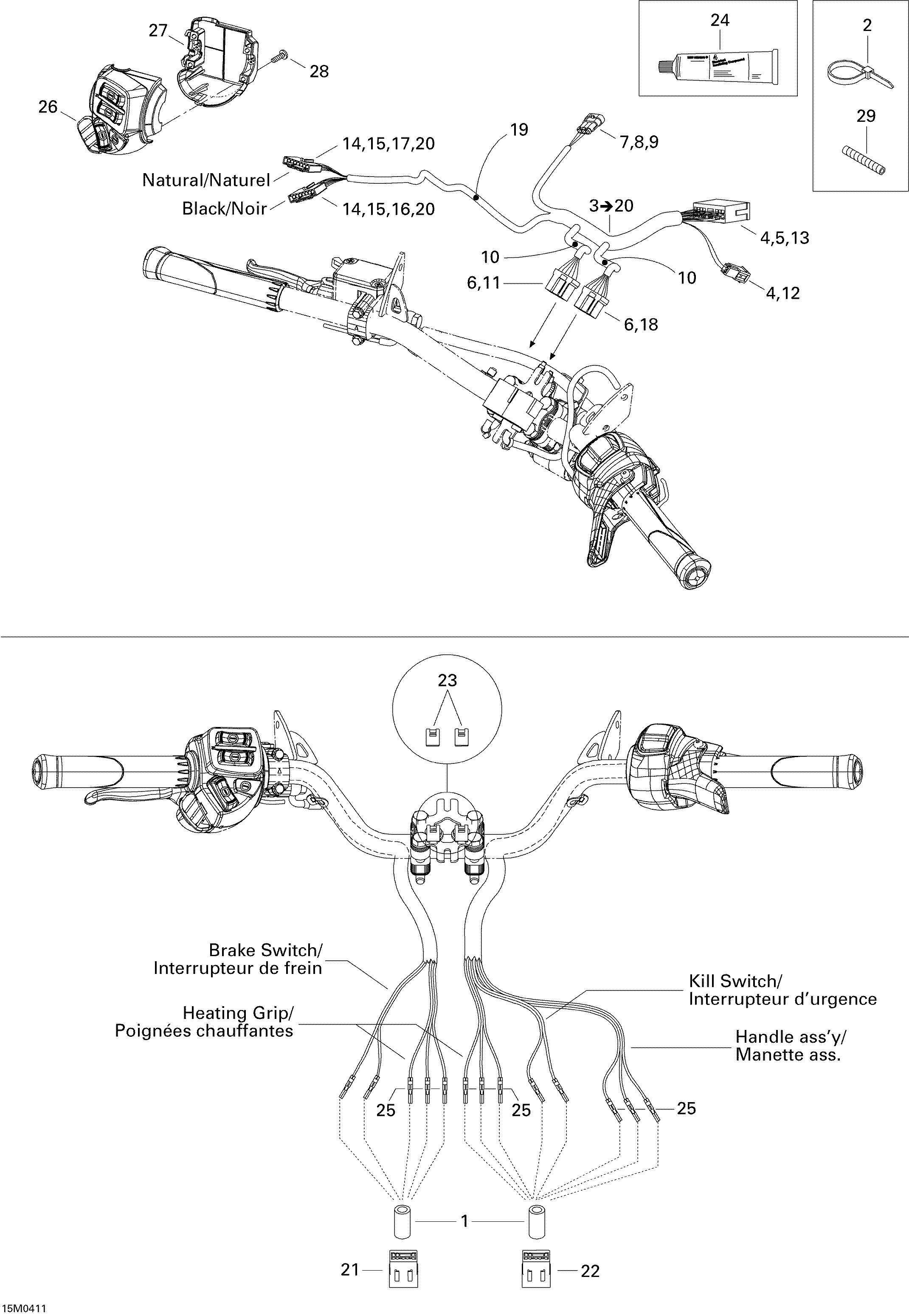

10- Steering Harness для BRP Ski-Doo MX Z 600 HO SDI - 2004
-
№АртикулНазвание
-
1515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
2293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
293750009 Tie Rap 160 mmTie Rap 160 mm
-
3515176068 Steering Harness. Includes 3 to 20 / Renegade X / MX Z XSteering Harness. Includes 3 to 20 / Renegade X / MX Z X
-
515176122 Steering Harness. Includes 3 to 20 / AdrenalineSteering Harness. Includes 3 to 20 / Adrenaline
-
4515175232 Male TerminalMale Terminal
-
5515175273 Male TerminalMale Terminal
-
6515175231 Female TerminalFemale Terminal
-
7409012900 Male TerminalMale Terminal
-
8710000568 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
9278001013 SealSeal
-
10415079900 Tubing 10 mmTubing 10 mm
-
11515175543 Female Terminal Housing (6 Circuits)Female Terminal Housing (6 Circuits)
-
12515175654 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
13515175720 Male Terminal Housing (11 Circuit)Male Terminal Housing (11 Circuit)
-
14515175808 Female TerminalFemale Terminal
-
15515175809 Femelle Lock (8 Circuits)Femelle Lock (8 Circuits)
-
16515175807 Female Terminal Housing (8 Circuits)Female Terminal Housing (8 Circuits)
-
17515175810 Female Terminal Housing (8 Circuits)Female Terminal Housing (8 Circuits)
-
18515175819 Female Terminal Housing (8 Circuits)Female Terminal Housing (8 Circuits)
-
19515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
20515175941 Female TerminalFemale Terminal
-
21515175662 Male Terminal Housing (6 Circuits)Male Terminal Housing (6 Circuits)
-
22515175817 Male Terminal Housing (8 Circuits)Male Terminal Housing (8 Circuits)
-
23515175944 Housing Support. AdrenalineHousing Support. Adrenaline
-
24293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
25515175232 Male TerminalMale Terminal
-
26515176015 LH Housing SwitchLH Housing Switch
-
27515175926 Housing Switch PlateHousing Switch Plate
-
28250000100 ScrewScrew
-
29515175442 Tubing (6 mm)Tubing (6 mm)
