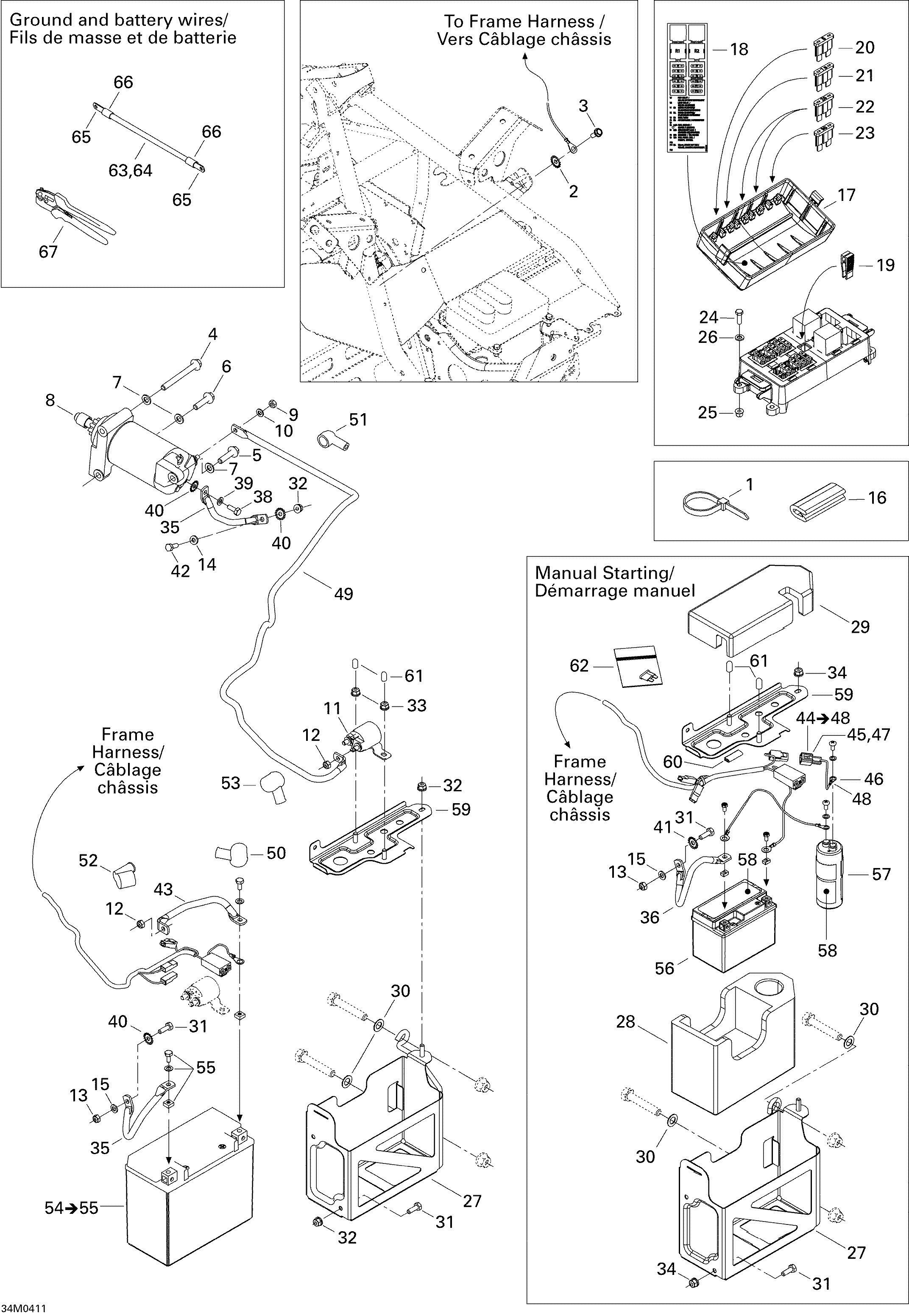

10- Battery, Starter and Fuse Box для BRP Ski-Doo MX Z 600 HO SDI - 2004

  • №
    Артикул
    Название
  • 1
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 293750002 Locking Tie 142 mm
    Locking Tie 142 mm
  • 293750009 Tie Rap 160 mm
    Tie Rap 160 mm
  • 2
    394001900 External Tooth Lock Washer
    External Tooth Lock Washer
  • 3
    210251180 Hex. Forming Screw M5 x 11
    Hex. Forming Screw M5 x 11
  • 4
    207587544 Hex Flanged Screw M8 X 75 (Scotch Grip). Electric Starting
    Hex Flanged Screw M8 X 75 (Scotch Grip). Electric Starting
  • 5
    207583044 Hex Flanged Screw M8 X 30 (Scotch Grip). Electric Starting
    Hex Flanged Screw M8 X 30 (Scotch Grip). Electric Starting
  • 6
    207583044 Hex Flanged Screw M8 X 30 (Scotch Grip). Electric Starting
    Hex Flanged Screw M8 X 30 (Scotch Grip). Electric Starting
  • 7
    250200008 Flat Washer 8 mm. Electric Starting
    Flat Washer 8 mm. Electric Starting
  • 8
    515176003 Starter Ass'Y. Electric Starting
    Starter Ass'Y. Electric Starting
  • 9
    232561414 Elastic Stop Nut M6. Electric Starting
    Elastic Stop Nut M6. Electric Starting
  • 10
    234061410 Flat Washer 6 mm. Electric Starting
    Flat Washer 6 mm. Electric Starting
  • 11
    515176011 Starter Relay. Electric Starting
    Starter Relay. Electric Starting
  • 12
    232561414 Elastic Stop Nut M6. Electric Starting
    Elastic Stop Nut M6. Electric Starting
  • 13
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 14
    234061410 Flat Washer 6 mm. Electric Starting
    Flat Washer 6 mm. Electric Starting
  • 15
    234061410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 16
    271000110 Protector Trim
    Protector Trim
  • 17
    515176066 Cover
    Cover
  • 18
    516002141 Fuse Decal
    Fuse Decal
  • 19
    515175811 Fuse Tool
    Fuse Tool
  • 20
    278000344 Fuse (5 Amperes)
    Fuse (5 Amperes)
  • 21
    278000704 Fuse (7.5 Amperes)
    Fuse (7.5 Amperes)
  • 22
    409003900 Fuse (20 Amperes)
    Fuse (20 Amperes)
  • 23
    410917200 Fuse (30 Amperes)
    Fuse (30 Amperes)
  • 24
    207152044 Hex Screw M5 X 20
    Hex Screw M5 X 20
  • 25
    233251414 Elastic Flanged Nut M5
    Elastic Flanged Nut M5
  • 26
    234051410 Flat Washer
    Flat Washer
  • 27
    515176017 Battery Support (Black)
    Battery Support (Black)
  • 28
    515176026 Capacitor Support. Manual Starting
    Capacitor Support. Manual Starting
  • 29
    515176114 Cover. Manual Starting
    Cover. Manual Starting
  • 30
    503175800 Washer
    Washer
  • 31
    207161844 Hex Screw M6 X 18
    Hex Screw M6 X 18
  • 32
    233261414 Elastic Flanged Nut M6. Electric Starting
    Elastic Flanged Nut M6. Electric Starting
  • 33
    233261414 Elastic Flanged Nut M6. Electric Starting
    Elastic Flanged Nut M6. Electric Starting
  • 34
    233261414 Elastic Flanged Nut M6. Manual Starting
    Elastic Flanged Nut M6. Manual Starting
  • 37
    515176119 Ground Harness (Capacitor). Manual Starting
    Ground Harness (Capacitor). Manual Starting
  • 38
    207361644 Hex Screw M6 X 16 (Scotch Grip). Electric Starting
    Hex Screw M6 X 16 (Scotch Grip). Electric Starting
  • 39
    234061410 Flat Washer 6 mm. Electric Starting
    Flat Washer 6 mm. Electric Starting
  • 40
    250200041 Serrated Lock Washer 6 mm. Electric Starting
    Serrated Lock Washer 6 mm. Electric Starting
  • 41
    250200041 Serrated Lock Washer 6 mm. Manual Starting
    Serrated Lock Washer 6 mm. Manual Starting
  • 42
    207162044 Hex Screw M6 X 20. Electric Starting
    Hex Screw M6 X 20. Electric Starting
  • 44
    515176120 Capasitor Harness. Includes items 44 to 48 / Manual Starting
    Capasitor Harness. Includes items 44 to 48 / Manual Starting
  • 45
    515175273 Male Terminal. Manual Starting
    Male Terminal. Manual Starting
  • 46
    515175504 Ring Terminal. Manual Starting
    Ring Terminal. Manual Starting
  • 47
    515175509 Male Terminal Housing (1 Circuit). Manual Starting
    Male Terminal Housing (1 Circuit). Manual Starting
  • 50
    570151000 Protection Cap. Electric Starting
    Protection Cap. Electric Starting
  • 51
    278001771 Protector Cap. Electric Starting
    Protector Cap. Electric Starting
  • 52
    570064200 Protection Cap. Electric Starting
    Protection Cap. Electric Starting
  • 53
    515175919 Protector Cap. Electric Starting
    Protector Cap. Electric Starting
  • 54
    410301203 Battery 18 Amperes. Includes items 54 to 55 / Electric Starting
    Battery 18 Amperes. Includes items 54 to 55 / Electric Starting
  • 55
    295500849 Battery Fastener Kit. Electric Starting
    Battery Fastener Kit. Electric Starting
  • 56
    410301204 Battery (3 Amperes). Manual Starting
    Battery (3 Amperes). Manual Starting
  • 57
    515176025 Capacitor. Manual Starting
    Capacitor. Manual Starting
  • 58
    516002601 Capacitor Decal. Manual Starting
    Capacitor Decal. Manual Starting
  • 59
    515175735 Battery Strip
    Battery Strip
  • 60
    414506600 Trim. Manual Starting
    Trim. Manual Starting
  • 61
    515176141 Cap
    Cap
  • 63
    278001680 Ground Cable Battery (No. 6) (Meter)
    Ground Cable Battery (No. 6) (Meter)
  • 64
    278001690 Red Cable Battery (No. 6) (Meter)
    Red Cable Battery (No. 6) (Meter)
  • 65
    278001682 Flat Terminal (Small Hole)
    Flat Terminal (Small Hole)
  • 278001683 Terminal 45° (Small Hole)
    Terminal 45° (Small Hole)
  • 278001684 Terminal 90° (Small Hole)
    Terminal 90° (Small Hole)
  • 278001685 Flat Terminal (Big Hole)
    Flat Terminal (Big Hole)
  • 278001686 Terminal 45° (Big Hole)
    Terminal 45° (Big Hole)
  • 278001687 Terminal 90° (Big Hole)
    Terminal 90° (Big Hole)
  • 278001688 Flat Terminal
    Flat Terminal
  • 278001776 Terminal 30° (2 Holes)
    Terminal 30° (2 Holes)
  • 66
    278001692 Heat Shrink
    Heat Shrink
  • 67
    529035730 Crimp Plier
    Crimp Plier
