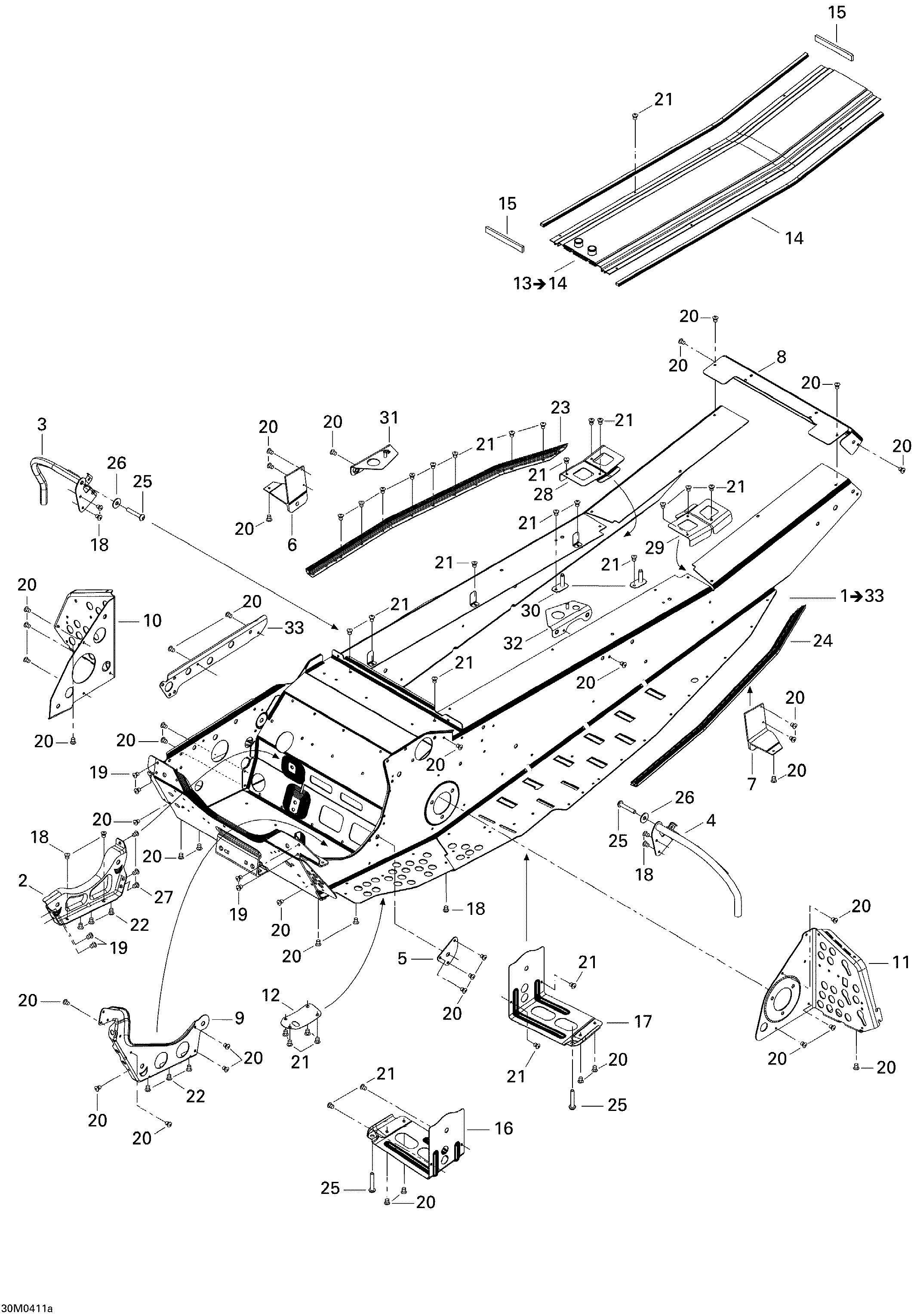

09- Frame (Adrenaline_X) для BRP Ski-Doo MX Z 600 HO SDI - 2004
-
№АртикулНазвание
-
1415128812 Frame. Adrenaline / Includes items 1 to 33Frame. Adrenaline / Includes items 1 to 33
-
415128811 Frame. X / Includes items 1 to 33Frame. X / Includes items 1 to 33
-
2518323346 Engine Support (Black)Engine Support (Black)
-
3518324162 RH Toe Hold SupportRH Toe Hold Support
-
4518324163 LH Toe Hold SupportLH Toe Hold Support
-
5518323507 Outer ReinforcementOuter Reinforcement
-
6518323572 RH Slide BracketRH Slide Bracket
-
7518323573 LH Slide BracketLH Slide Bracket
-
8518323835 Rear CapRear Cap
-
9518323241 Inner Reinforcement (Black)Inner Reinforcement (Black)
-
10518323805 RH Footrest ReinforcementRH Footrest Reinforcement
-
11518323765 LH Footrest ReinforcementLH Footrest Reinforcement
-
12518324169 PlatePlate
-
13518323646 Rear Radiator. Includes items 13 to 14Rear Radiator. Includes items 13 to 14
-
14415012300 Radiator ProtectorRadiator Protector
-
15293200003 SealSeal
-
16518323753 RH Reinforcement (Black)RH Reinforcement (Black)
-
17518323754 LH Reinforcement (Black)LH Reinforcement (Black)
-
18390909200 Rivet AvexRivet Avex
-
19390909100 Rivet AvexRivet Avex
-
20390402200 Rivet 3/16''Rivet 3/16''
-
21390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
22390910300 Rivet HenrobRivet Henrob
-
23518323551 RH RollerRH Roller
-
24518323552 LH RollerLH Roller
-
26234082410 Flat Washer 8 mmFlat Washer 8 mm
-
27293150096 RivetRivet
-
28518323919 RH Frame ReinforcementRH Frame Reinforcement
-
29518323920 LH Frame ReinforcementLH Frame Reinforcement
-
30518322791 Tank BracketTank Bracket
-
31518323336 RH Frame Reinforcement (Black)RH Frame Reinforcement (Black)
-
32518323337 LH Frame Reinforcement (Black)LH Frame Reinforcement (Black)
-
33518323328 RH Tunnel StiffenerRH Tunnel Stiffener
