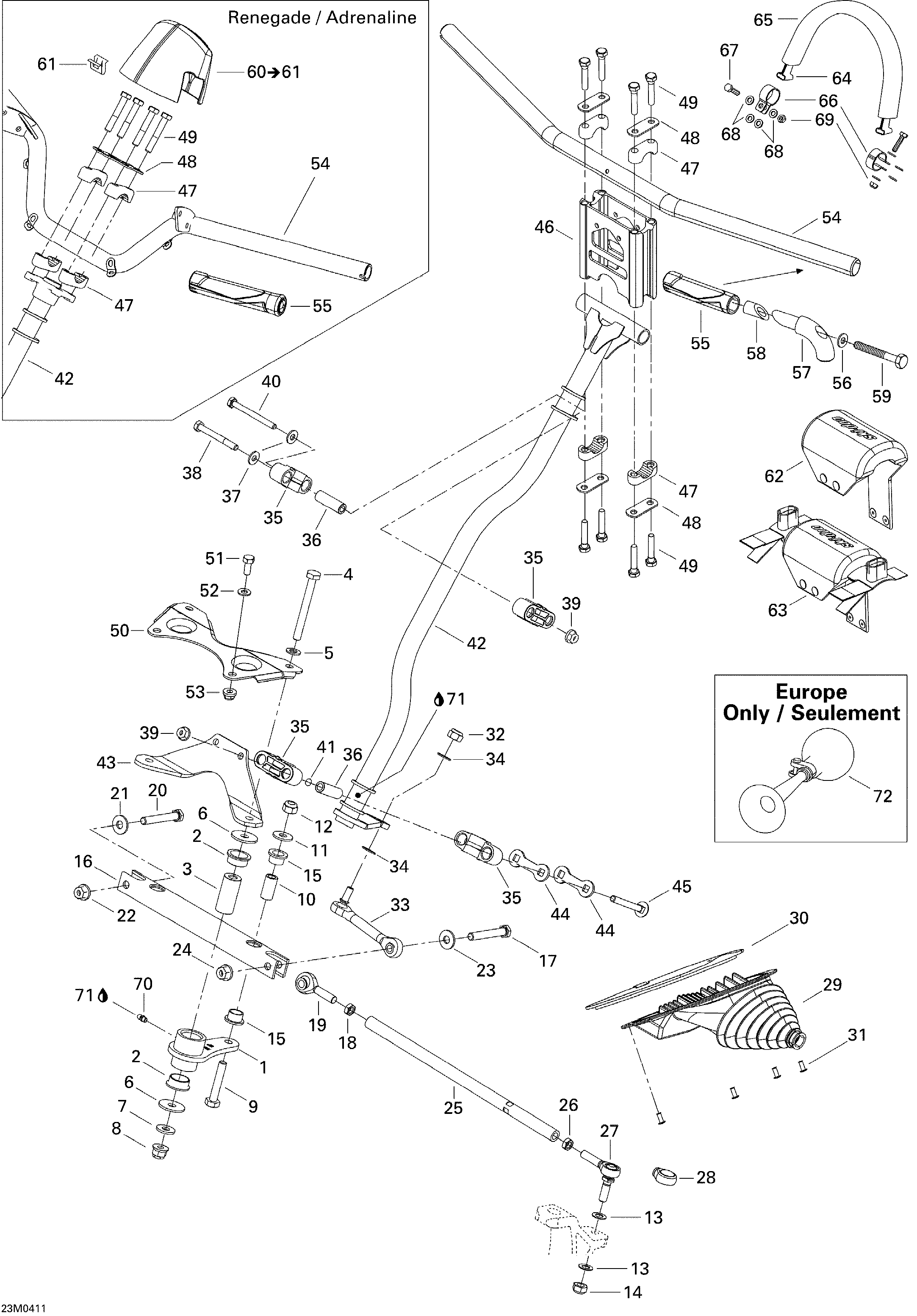

07- Steering system для BRP Ski-Doo MX Z 600 HO SDI - 2004
-
№АртикулНазвание
-
1506151651 RH Swivel ArmRH Swivel Arm
-
506151652 LH Swivel ArmLH Swivel Arm
-
2415041100 CushionCushion
-
3506151272 Swivel PivotSwivel Pivot
-
4207009086 Hex Screw M10 X 90Hex Screw M10 X 90
-
5503183800 WasherWasher
-
6506150000 Washer 10 mmWasher 10 mm
-
7506151251 WasherWasher
-
8732610084 Flanged Nut M10Flanged Nut M10
-
9207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
10506151273 Pivot BarPivot Bar
-
11224002251 Flat WasherFlat Washer
-
12233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
13503175800 WasherWasher
-
14232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
15506150200 Swivel BushingSwivel Bushing
-
16506151328 Swivel BarSwivel Bar
-
17207006544 Hex Screw M10 X 65Hex Screw M10 X 65
-
18250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
19506151810 LH Ball JointLH Ball Joint
-
20207004544 Hex Screw M10 X 45Hex Screw M10 X 45
-
21224002251 Flat WasherFlat Washer
-
22233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
23224002251 Flat WasherFlat Washer
-
24233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
25506151340 Tie-RodTie-Rod
-
26732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
27506151811 Ball JointBall Joint
-
28506151650 Protection CapProtection Cap
-
29506151725 RH Tie-Rod CapRH Tie-Rod Cap
-
506151726 LH Tie-Rod CapLH Tie-Rod Cap
-
30506151356 RH Retainer RingRH Retainer Ring
-
506151357 LH Retainer RingLH Retainer Ring
-
31390402200 Rivet 3/16''Rivet 3/16''
-
32232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
33506151621 Ball Joint (Double)Ball Joint (Double)
-
34503175800 WasherWasher
-
35506150400 Half HousingHalf Housing
-
36506150500 Housing BushingHousing Bushing
-
37503189157 WasherWasher
-
38207087044 Hex Screw M8 X 70Hex Screw M8 X 70
-
39233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
40207088044 Hex Screw M8 X 80Hex Screw M8 X 80
-
41506151140 O-RingO-Ring
-
42506151334 Main Tube. AdrenalineMain Tube. Adrenaline
-
506151779 Main Tube. X / Renegade XMain Tube. X / Renegade X
-
43506151330 Steering Shaft SupportSteering Shaft Support
-
44506150600 Stopper PlateStopper Plate
-
45207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
46506151754 Handledbar Extension. X / Renegade XHandledbar Extension. X / Renegade X
-
47506151622 Steering Support. X / Renegade XSteering Support. X / Renegade X
-
506151622 Steering Support. AdrenalineSteering Support. Adrenaline
-
48506151196 Reinforcement. X / Renegade XReinforcement. X / Renegade X
-
506151547 Reinforcement. AdrenalineReinforcement. Adrenaline
-
49250000074 Hex Screw M8 X 40. X / Renegade XHex Screw M8 X 40. X / Renegade X
-
250000082 Hex Screw M8 X 50. AdrenalineHex Screw M8 X 50. Adrenaline
-
50506151536 Pivot SupportPivot Support
-
51207182044 Hex Screw M8 X 20Hex Screw M8 X 20
-
52234081410 Flat Washer 8 mmFlat Washer 8 mm
-
53233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
54506151667 Handlebar. AdrenalineHandlebar. Adrenaline
-
506151782 Handlebar. X / Renegade XHandlebar. X / Renegade X
-
55506151716 Grip. AdrenalineGrip. Adrenaline
-
506151733 Grip. X / Renegade XGrip. X / Renegade X
-
56250200039 Flat Washer. X / Renegade XFlat Washer. X / Renegade X
-
57506151837 Short J-Hook. X / Renegade XShort J-Hook. X / Renegade X
-
58506151839 Wedge Lock. X / Renegade XWedge Lock. X / Renegade X
-
59207067084 Hex Screw M6 X 70. X / Renegade XHex Screw M6 X 70. X / Renegade X
-
60506151660 Cap. Adrenaline / Includes items 60 to 61Cap. Adrenaline / Includes items 60 to 61
-
61517302785 Clip. AdrenalineClip. Adrenaline
-
62506151888 Steering Pad. XSteering Pad. X
-
63506151889 Steering Pad. Renegade XSteering Pad. Renegade X
-
64415095500 Tie-DownTie-Down
-
65415090200 GripGrip
-
66506151792 Support Plate (Black)Support Plate (Black)
-
67207662084 Hex Flanged Screw M6 X 20Hex Flanged Screw M6 X 20
-
68234061410 Flat WasherFlat Washer
-
69232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
70408200700 Grease FittingGrease Fitting
-
71219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
72415040700 Horn (Europe). EuropeHorn (Europe). Europe
