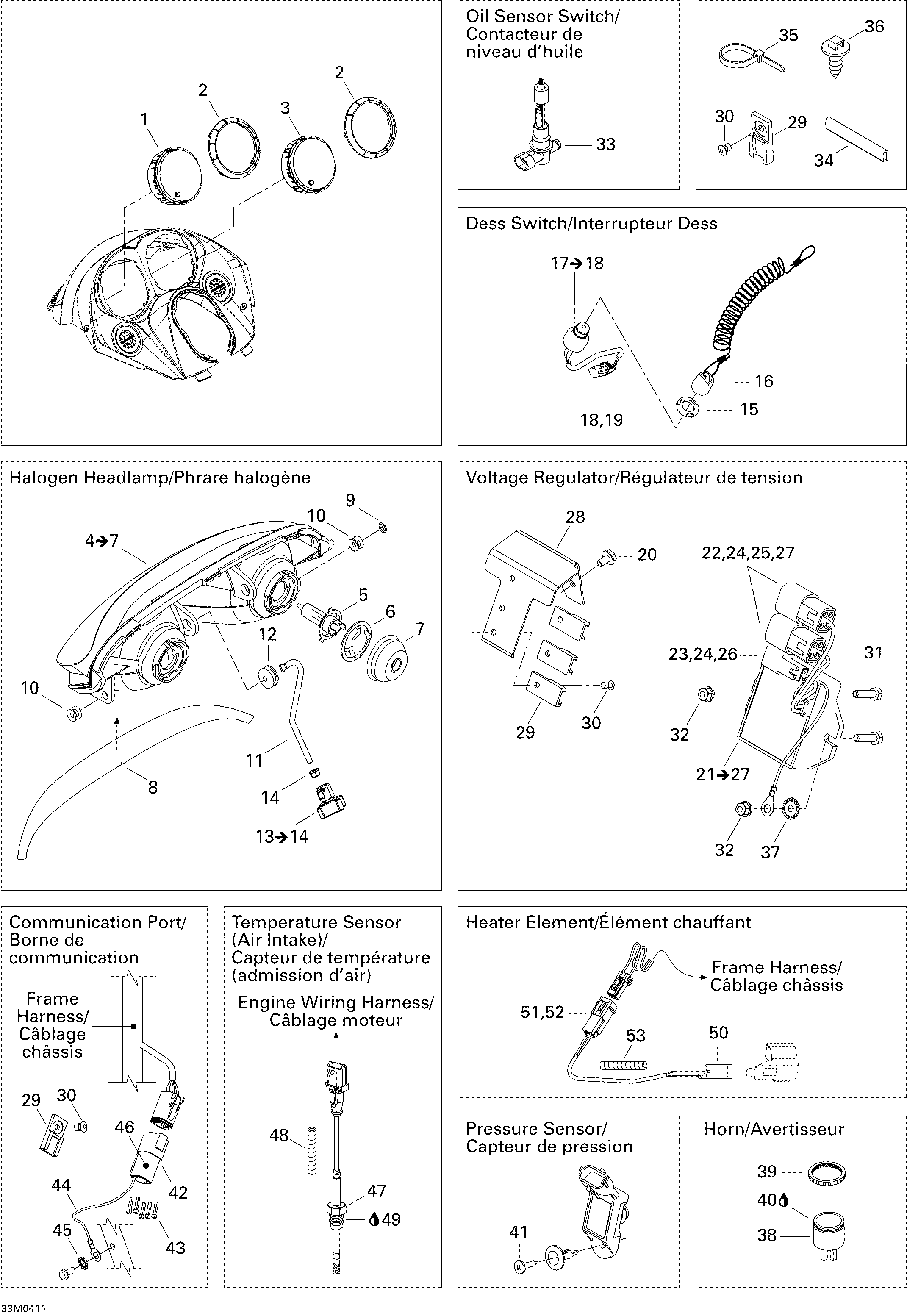

10- Electrical System для BRP Ski-Doo MX Z 600 HO SDI - 2004

  • №
    Артикул
    Название
  • 1
    515176074 Speedometer
    Speedometer
  • 2
    515175651 Gauge Ring
    Gauge Ring
  • 3
    515176072 Tachometer
    Tachometer
  • 4
    515175909 Halogen Headlamp.. Includes 4 to 7
    Halogen Headlamp.. Includes 4 to 7
  • 5
    410504401 Halogen Bulb (60/55 W, 12 V)
    Halogen Bulb (60/55 W, 12 V)
  • 6
    515175910 Bulb Holder
    Bulb Holder
  • 7
    515175911 Cover
    Cover
  • 8
    516001328 Headlamp Decal
    Headlamp Decal
  • 9
    732610072 Push Nut
    Push Nut
  • 10
    515175760 Headlamp Bushing
    Headlamp Bushing
  • 11
    515175521 Adjuster Rod
    Adjuster Rod
  • 12
    415100800 Grommet
    Grommet
  • 13
    515175975 Handle. Includes 13 to 14
    Handle. Includes 13 to 14
  • 14
    233261414 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 15
    278000508 Nut
    Nut
  • 16
    515166900 Dess Cap
    Dess Cap
  • 17
    515175797 Dess Switch. Includes 17 to 19
    Dess Switch. Includes 17 to 19
  • 18
    515175232 Male Terminal
    Male Terminal
  • 19
    515174494 Male Terminal Housing (3 Circuits)
    Male Terminal Housing (3 Circuits)
  • 20
    210261080 Hex Forming Screw M6 X 10
    Hex Forming Screw M6 X 10
  • 21
    515176023 Tension Regulator. Includes 21 to 27
    Tension Regulator. Includes 21 to 27
  • 22
    278001477 Male Terminal Housing (4 Circuits)
    Male Terminal Housing (4 Circuits)
  • 23
    278001674 Male Terminal Housing (2 Circuits)
    Male Terminal Housing (2 Circuits)
  • 24
    515175568 Male Terminal
    Male Terminal
  • 25
    278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)
    (Female) Secondary Lock (4 Circuits) (Deutsch)
  • 26
    278001672 Male Lock (2 Circuits)
    Male Lock (2 Circuits)
  • 27
    293000052 Sealing Cap
    Sealing Cap
  • 28
    515175916 Housing Support
    Housing Support
  • 29
    515175917 Clip
    Clip
  • 30
    293150037 Rivet Avdel 3/16''
    Rivet Avdel 3/16''
  • 31
    207162544 Hex Screw M6 X 25 (3)
    Hex Screw M6 X 25 (3)
  • 32
    233261414 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 33
    515176016 Oil Sensor Level
    Oil Sensor Level
  • 34
    509000263 Trim
    Trim
  • 35
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 36
    293730018 Mount Dart
    Mount Dart
  • 37
    250200041 Serrated Lock Washer 6 mm
    Serrated Lock Washer 6 mm
  • 38
    515176035 Horn
    Horn
  • 39
    414805101 Plastic Nut
    Plastic Nut
  • 40
    296000309 Sealant Silicone, Clear
    Sealant Silicone, Clear
  • 41
    414745900 Phillips Screw
    Phillips Screw
  • 42
    515175668 Male Terminal Housing (6 Circuits)
    Male Terminal Housing (6 Circuits)
  • 43
    293000052 Sealing Cap
    Sealing Cap
  • 45
    394001900 External Tooth Lock Washer
    External Tooth Lock Washer
  • 46
    278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)
    (Female) Secondary Lock (6 Circuits) (Deutsch)
  • 47
    515176132 Temperature Sensor
    Temperature Sensor
  • 48
    515175442 Tubing (6 mm)
    Tubing (6 mm)
  • 49
    293800070 Loctite 767, Antiseize Lubricant, 8 Oz
    Loctite 767, Antiseize Lubricant, 8 Oz
  • 50
    515176087 Heater Element
    Heater Element
  • 51
    515175654 Male Terminal Housing (2 Circuits)
    Male Terminal Housing (2 Circuits)
  • 52
    515175232 Male Terminal
    Male Terminal
  • 53
    515175442 Tubing (6 mm)
    Tubing (6 mm)
