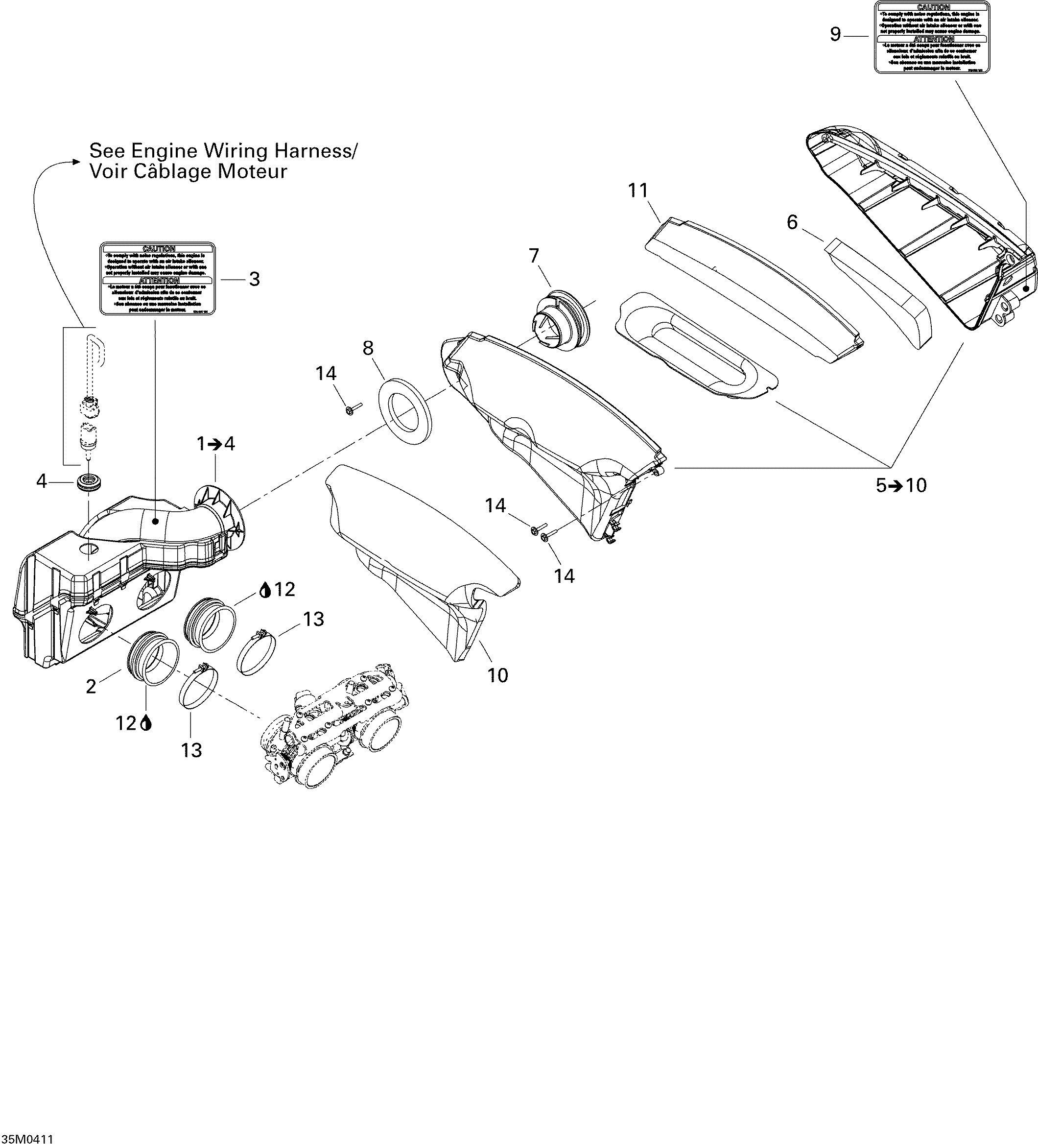

02- Air Intake System для BRP Ski-Doo MX Z 600 HO SDI - 2004
-
№АртикулНазвание
-
1508000370 Primary Chamber Assy. Includes 1 to 4Primary Chamber Assy. Includes 1 to 4
-
2508000374 Air Intake AdaptorAir Intake Adaptor
-
3516001191 Caution Label (Air Intake)Caution Label (Air Intake)
-
4570065500 GrommetGrommet
-
5508000392 Secondary Chamber Assy. Includes 5 to 10Secondary Chamber Assy. Includes 5 to 10
-
6508000145 Inner FoamInner Foam
-
7508000240 GuideGuide
-
8508000199 Outer FoamOuter Foam
-
9516001191 Caution Label (Air Intake)Caution Label (Air Intake)
-
10508000310 Outer FoamOuter Foam
-
11508000394 Air FilterAir Filter
-
12293600045 Synthetic Injection Oil, Formula Xp-S Ii (12 X 1 Liter)Synthetic Injection Oil, Formula Xp-S Ii (12 X 1 Liter)
-
293600046 Synthetic Injection Oil, Formula Xp-S Ii (3 X 4 Liters)Synthetic Injection Oil, Formula Xp-S Ii (3 X 4 Liters)
-
293600047 Synthetic Injection Oil, Formula Xp-S Ii (205 Liters)Synthetic Injection Oil, Formula Xp-S Ii (205 Liters)
-
13508000346 Gemi ClampGemi Clamp
-
14250000101 Screw M4 X 25Screw M4 X 25
