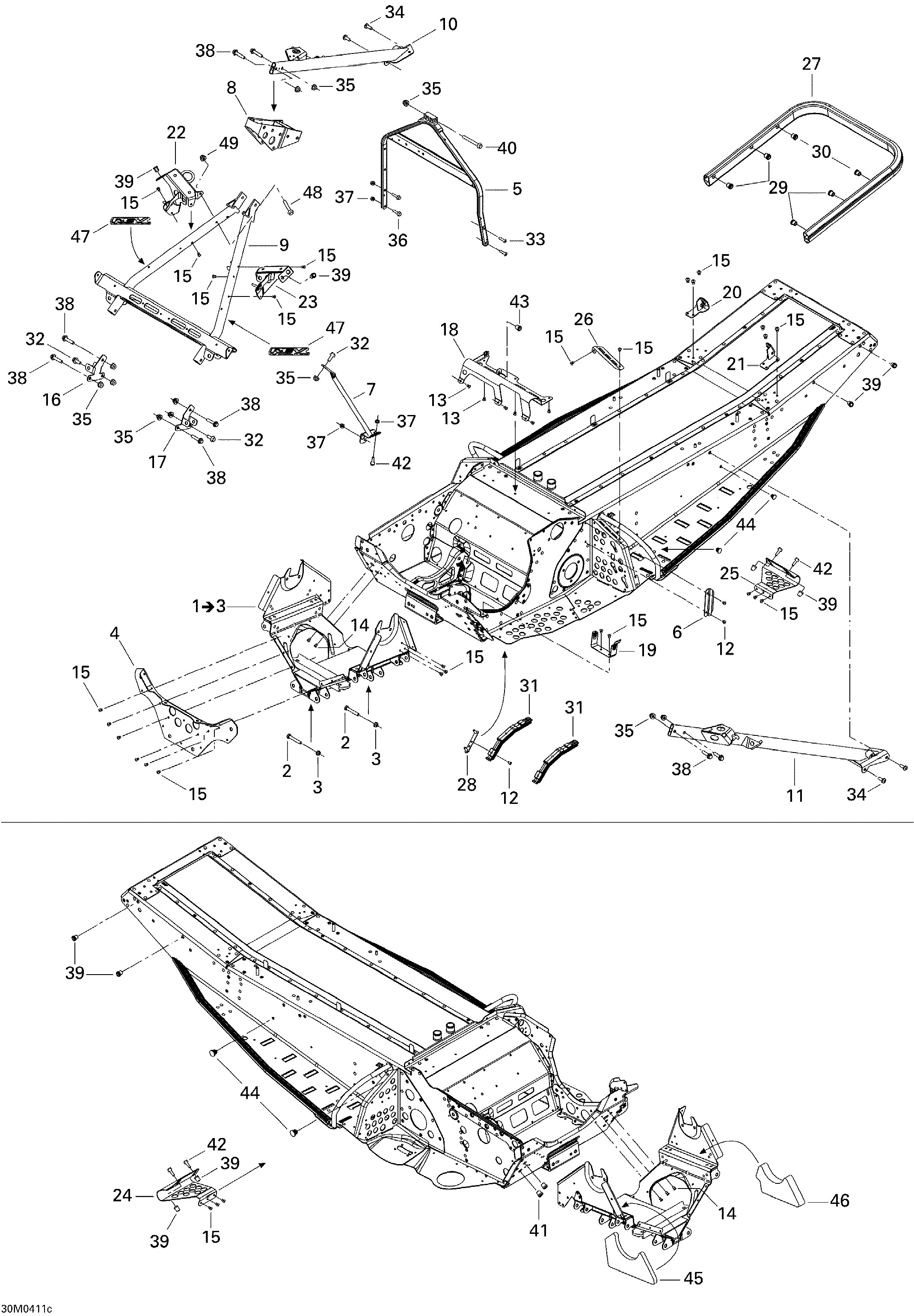

09- Frame system (Adrenaline_X) для BRP Ski-Doo MX Z 600 HO SDI - 2004
-
№АртикулНазвание
-
1518323766 Cross Member. Includes items 1 to 3Cross Member. Includes items 1 to 3
-
1518323766 Cross Member. Includes items 1 to 3Cross Member. Includes items 1 to 3
-
2207085044 Hex Screw M8 X 50Hex Screw M8 X 50
-
2207085044 Hex Screw M8 X 50Hex Screw M8 X 50
-
3232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
3232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
4518322166 Front PlateFront Plate
-
4518322166 Front PlateFront Plate
-
5518324505 Handle SupportHandle Support
-
5518324505 Handle SupportHandle Support
-
7518323472 Brace (Black)Brace (Black)
-
7518323472 Brace (Black)Brace (Black)
-
8518323853 Bracket Block. AdrenalineBracket Block. Adrenaline
-
8518323853 Bracket Block. AdrenalineBracket Block. Adrenaline
-
518323854 Bracket Block. XBracket Block. X
-
518323854 Bracket Block. XBracket Block. X
-
9518324009 Upper Cross MemberUpper Cross Member
-
9518324009 Upper Cross MemberUpper Cross Member
-
10518323352 RH MemberRH Member
-
10518323352 RH MemberRH Member
-
11518323354 LH MemberLH Member
-
11518323354 LH MemberLH Member
-
12390402200 Rivet 3/16''Rivet 3/16''
-
12390402200 Rivet 3/16''Rivet 3/16''
-
13390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
13390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
14390909100 Rivet AvexRivet Avex
-
14390909100 Rivet AvexRivet Avex
-
15390909200 Rivet AvexRivet Avex
-
15390909200 Rivet AvexRivet Avex
-
16518322461 RH Shock BracketRH Shock Bracket
-
16518322461 RH Shock BracketRH Shock Bracket
-
17518322462 LH Shock BracketLH Shock Bracket
-
17518322462 LH Shock BracketLH Shock Bracket
-
18518323532 Intake Air Admission SupportIntake Air Admission Support
-
18518323532 Intake Air Admission SupportIntake Air Admission Support
-
19518322726 Guard Belt Bracket (Black)Guard Belt Bracket (Black)
-
19518322726 Guard Belt Bracket (Black)Guard Belt Bracket (Black)
-
20518323769 RH Bracket (Black)RH Bracket (Black)
-
20518323769 RH Bracket (Black)RH Bracket (Black)
-
21518323770 LH Bracket (Black)LH Bracket (Black)
-
21518323770 LH Bracket (Black)LH Bracket (Black)
-
22518323535 RH Console SupportRH Console Support
-
22518323535 RH Console SupportRH Console Support
-
23518323536 LH Console SupportLH Console Support
-
23518323536 LH Console SupportLH Console Support
-
24518323377 RH Toe HoldRH Toe Hold
-
24518323377 RH Toe HoldRH Toe Hold
-
25518323378 LH Toe HoldLH Toe Hold
-
25518323378 LH Toe HoldLH Toe Hold
-
26518323105 Plate (Black)Plate (Black)
-
26518323105 Plate (Black)Plate (Black)
-
27518323788 Rear BumperRear Bumper
-
27518323788 Rear BumperRear Bumper
-
28518323896 Trunk Bracket (Black)Trunk Bracket (Black)
-
28518323896 Trunk Bracket (Black)Trunk Bracket (Black)
-
29207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
29207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
30207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
30207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
31518324071 Front ProtectorFront Protector
-
31518324071 Front ProtectorFront Protector
-
32207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
32207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
33205862044 Socket Head Screw M6 X 20 (Scotch Grip)Socket Head Screw M6 X 20 (Scotch Grip)
-
33205862044 Socket Head Screw M6 X 20 (Scotch Grip)Socket Head Screw M6 X 20 (Scotch Grip)
-
34250000149 Pan Head Torx Screw M8 X 15. XPan Head Torx Screw M8 X 15. X
-
34250000149 Pan Head Torx Screw M8 X 15. XPan Head Torx Screw M8 X 15. X
-
250000154 Torx Screw M8 X 13. AdrenalineTorx Screw M8 X 13. Adrenaline
-
250000154 Torx Screw M8 X 13. AdrenalineTorx Screw M8 X 13. Adrenaline
-
35233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
35233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
36207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
36207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
37233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
37233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
38207683544 Hex Flanged Screw M8 X 35Hex Flanged Screw M8 X 35
-
38207683544 Hex Flanged Screw M8 X 35Hex Flanged Screw M8 X 35
-
39415107300 InsertInsert
-
39415107300 InsertInsert
-
40207687044 Hex Flanged Screw M8 X 70Hex Flanged Screw M8 X 70
-
40207687044 Hex Flanged Screw M8 X 70Hex Flanged Screw M8 X 70
-
41293450166 InsertInsert
-
41293450166 InsertInsert
-
42207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
42207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
43293450232 InsertInsert
-
43293450232 InsertInsert
-
44518321954 Fastener PanelFastener Panel
-
44518321954 Fastener PanelFastener Panel
-
45518323453 RH Front FoamRH Front Foam
-
45518323453 RH Front FoamRH Front Foam
-
46518323007 LH Front FoamLH Front Foam
-
46518323007 LH Front FoamLH Front Foam
-
47516001725 Frame DecalFrame Decal
-
47516001725 Frame DecalFrame Decal
-
48207063544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
48207063544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
49233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
49233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
