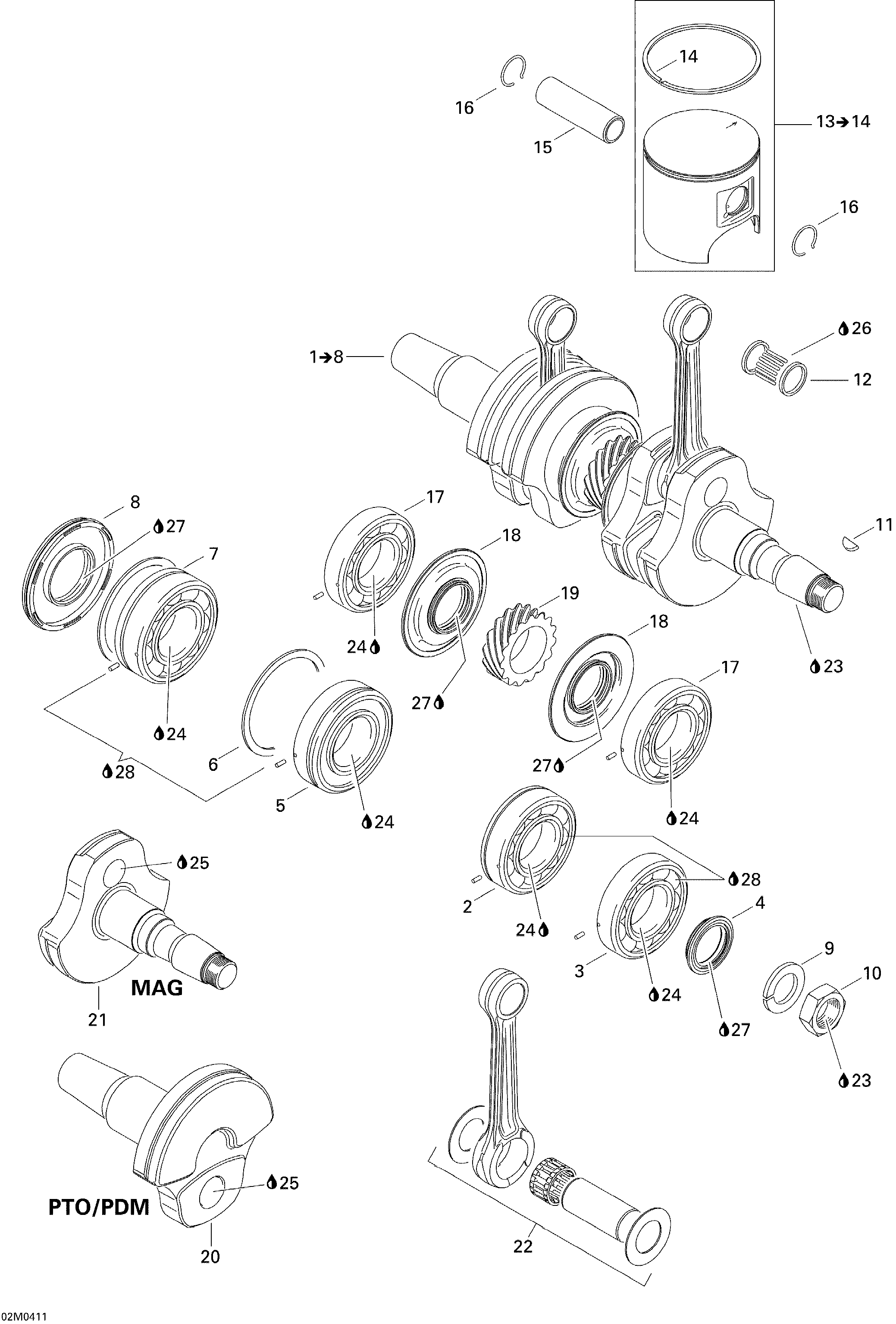

01- Crankshaft And Piston для BRP Ski-Doo MX Z 600 HO SDI - 2004

  • №
    Артикул
    Название
  • 1
    420889098 Crankshaft Ass'Y. Includes items 1 to 8
    Crankshaft Ass'Y. Includes items 1 to 8
  • 2
    420832638 Ball Bearing
    Ball Bearing
  • 3
    420832575 Ball Bearing
    Ball Bearing
  • 4
    420931792 Oil Seal
    Oil Seal
  • 5
    420832608 Ball Bearing
    Ball Bearing
  • 6
    420926190 Washer
    Washer
  • 7
    420832700 Ball Bearing
    Ball Bearing
  • 8
    420931285 Oil Seal
    Oil Seal
  • 9
    420945759 Lock Washer
    Lock Washer
  • 10
    420842234 Hex Nut M22
    Hex Nut M22
  • 11
    420246015 Woodruff Key
    Woodruff Key
  • 12
    420832427 Needle Bearing
    Needle Bearing
  • 13
    420889185 Piston Ass'Y. Includes items 13 to 14
    Piston Ass'Y. Includes items 13 to 14
  • 14
    420815290 Semi-Trapez Ring
    Semi-Trapez Ring
  • 15
    420916411 Piston Pin
    Piston Pin
  • 16
    420845106 Piston Circlip
    Piston Circlip
  • 17
    420832575 Ball Bearing
    Ball Bearing
  • 18
    420931455 Oil Seal
    Oil Seal
  • 19
    420834355 Central Gear
    Central Gear
  • 20
    420818709 Crankshaft (PTO Side)
    Crankshaft (PTO Side)
  • 21
    420819230 Crankshaft (Mag Side)
    Crankshaft (Mag Side)
  • 22
    420684653 Rod Repair Kit (Mag Side)
    Rod Repair Kit (Mag Side)
  • 420684654 Rod Repair Kit (PTO Side)
    Rod Repair Kit (PTO Side)
  • 23
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 24
    293800070 Loctite 767, Antiseize, 8 Oz
    Loctite 767, Antiseize, 8 Oz
  • 25
    413711400 Loctite 648, 10 ml
    Loctite 648, 10 ml
  • 26
    413802900 Injection Oil (12 X 1 Liter)
    Injection Oil (12 X 1 Liter)
  • 27
    420899271 Petamo Grease, Ghy133N, 400 G
    Petamo Grease, Ghy133N, 400 G
  • 28
    293550021 Isoflex Grease, 50 G
    Isoflex Grease, 50 G
