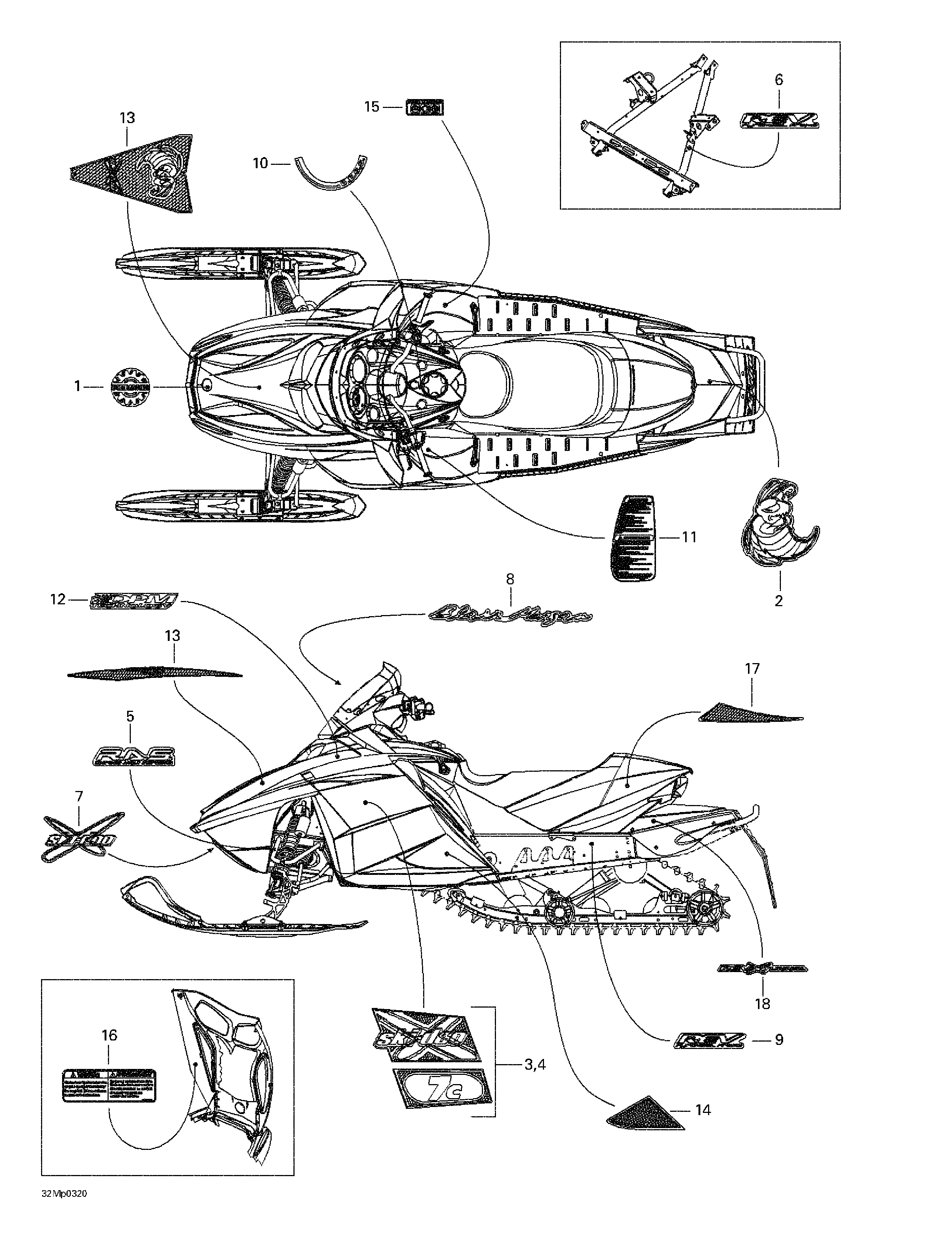

09- Decals для BRP Ski-Doo MX Z Blair Morgan Special Edition - 2003
-
№АртикулНазвание
-
1516000983 BOMBARDIER logoBOMBARDIER logo
-
2516001769 Central decalCentral decal
-
3415128585 R.h. Panel decal kitR.h. Panel decal kit
-
4415128638 L.h. anel decal kitL.h. anel decal kit
-
5516001704 Suspension R.A.S. decalSuspension R.A.S. decal
-
6516001725 Pyramidal frame decalPyramidal frame decal
-
7516001738 Bottom pan decalBottom pan decal
-
8516001760 Decal WindshieldDecal Windshield
-
9516001724 Tunnel decalTunnel decal
-
10516001335 D.E.S.S. decalD.E.S.S. decal
-
11516001338 Security label (starting)Security label (starting)
-
12516000243 DPM decalDPM decal
-
13415128588 Hood decal kitHood decal kit
-
14415128589 Front lower decal kitFront lower decal kit
-
15516001296 Pictogram decal (Europe)Pictogram decal (Europe)
-
16516001297 Security label (hot parts)Security label (hot parts)
-
17415128590 Cover decal kitCover decal kit
-
18516001768 Lateral decalLateral decal
