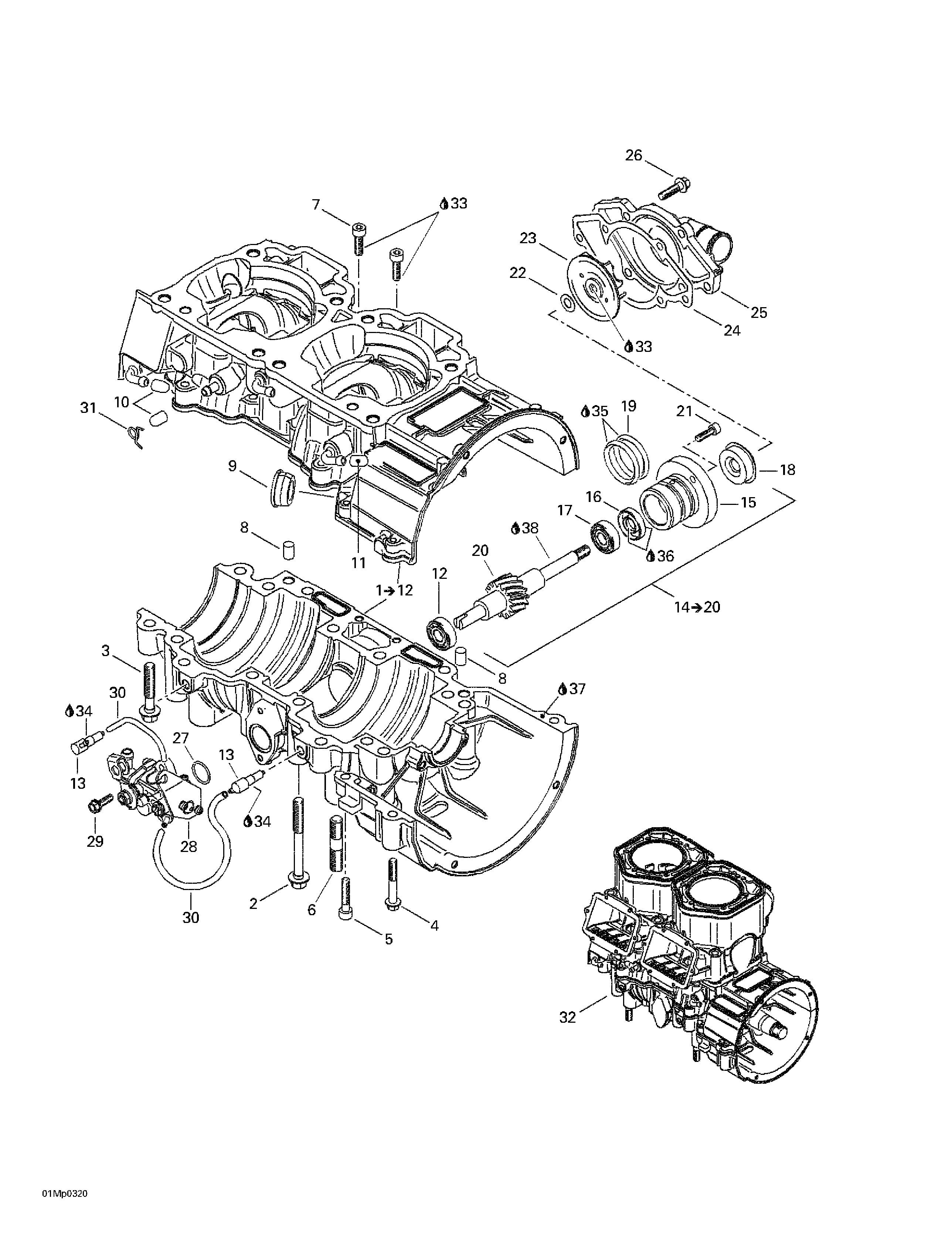

01- Crankcase, Water Pump And Oil Pump для BRP Ski-Doo MX Z Blair Morgan Special Edition - 2003
-
№АртикулНазвание
-
1420889086 Crankcase ass'y. Includes 1 - 12.Crankcase ass'y. Includes 1 - 12.
-
2420640836 Hex. collar screw M8 x 75Hex. collar screw M8 x 75
-
3420640431 Hex. collar screw M8 x 45Hex. collar screw M8 x 45
-
4420640311 Hex. collar screw M6 x 45Hex. collar screw M6 x 45
-
5205063044 Socket head screw M6 x 30Socket head screw M6 x 30
-
6420641834 Stud M10 x 29Stud M10 x 29
-
7420840401 Socket head screw M6 x 22Socket head screw M6 x 22
-
8290632010 Dowel pinDowel pin
-
9420860965 Cable grommetCable grommet
-
10420960770 CapCap
-
11420960777 CapCap
-
12420232100 Ball bearingBall bearing
-
13420956510 Check valveCheck valve
-
14420837421 Water pump/oil pump ass'y. Includes 14 - 20.Water pump/oil pump ass'y. Includes 14 - 20.
-
16420230195 Oil sealOil seal
-
17420232100 Ball bearingBall bearing
-
18420650370 Rotary SealRotary Seal
-
19420950890 O-ringO-ring
-
21420840511 Socket head screw M5 x 16Socket head screw M5 x 16
-
22420227945 WasherWasher
-
23420222505 Water impellerWater impeller
-
24420931810 GasketGasket
-
25420922630 Water pump housingWater pump housing
-
26420240031 Hex. screw M6 x 25Hex. screw M6 x 25
-
27420230400 O-ringO-ring
-
28420888770 Oil pump ass'yOil pump ass'y
-
29420941925 Screw M5 x 16Screw M5 x 16
-
30414413800 Oil lineOil line
-
31420938190 ClampClamp
-
32420079306 Short Block Ass'yShort Block Ass'y
-
33293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
34413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
35413707000 Molykote 111Molykote 111
-
36420899271 Petamo grease, GHY133N, 400 gPetamo grease, GHY133N, 400 g
-
37420297906 Sealing compound, 30 mlSealing compound, 30 ml
-
38413802900 Injection oil (12 x 1 Liter)Injection oil (12 x 1 Liter)
