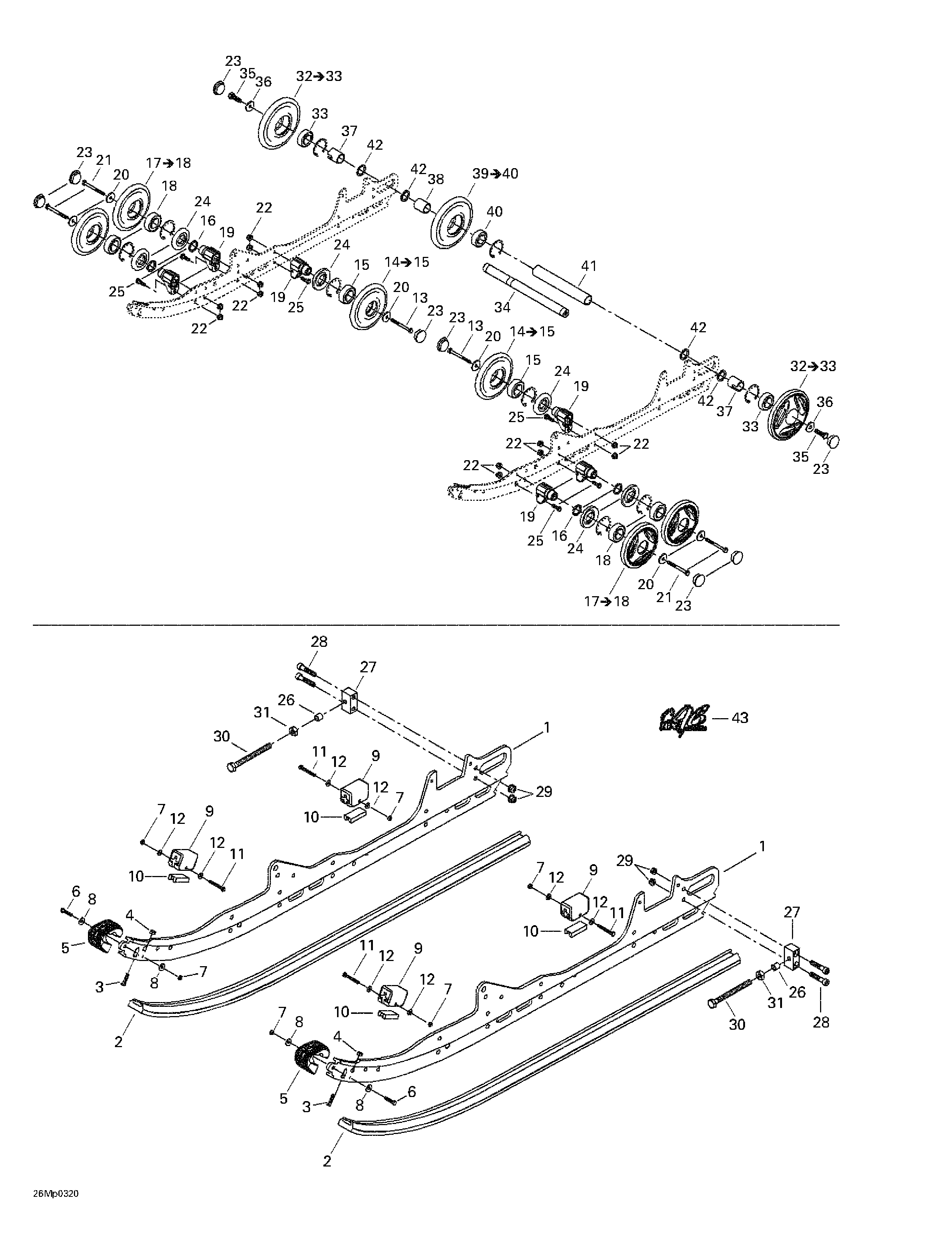

08- Rear Suspension для BRP Ski-Doo MX Z Blair Morgan Special Edition - 2003
-
№АртикулНазвание
-
1503190222 RunnerRunner
-
2503190228 ShoeShoe
-
3208562560 Phillips screw M6 x 25Phillips screw M6 x 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 ProtectorProtector
-
6207152544 Hex. screw M5 x 25Hex. screw M5 x 25
-
7232551414 Elastic stop nut M5Elastic stop nut M5
-
8391301600 Flat washerFlat washer
-
9570063000 Rubber stopperRubber stopper
-
10572084800 Reinforcement stopperReinforcement stopper
-
11207054044 Hex. screw M5 x 40Hex. screw M5 x 40
-
12391301700 WasherWasher
-
13207088044 Hex. screw M8 x 80Hex. screw M8 x 80
-
14503190229 Wheel 135 ass'y. Includes 14 - 15.Wheel 135 ass'y. Includes 14 - 15.
-
15405404500 Ball bearing 6205Ball bearing 6205
-
16503173700 WasherWasher
-
17503190215 Wheel 135 ass'y (yellow). Includes 17 - 18.Wheel 135 ass'y (yellow). Includes 17 - 18.
-
18405404500 Ball bearing 6205Ball bearing 6205
-
19503189679 SupportSupport
-
20503183100 WasherWasher
-
21207088544 Hex. screw M8 x 85Hex. screw M8 x 85
-
22233281414 Elastic flanged nut M8Elastic flanged nut M8
-
23570063600 Wheel capWheel cap
-
24572089000 Labirynth sealLabirynth seal
-
25207182544 Hex. screw M8 x 25Hex. screw M8 x 25
-
26503168500 SpacerSpacer
-
27503189211 TensionerTensioner
-
28205084044 Socket head screw M8 x 40Socket head screw M8 x 40
-
29233281414 Elastic flanged nut M6Elastic flanged nut M6
-
30230100044 Hex. screw M10 x 100Hex. screw M10 x 100
-
31232006414 Hex. nut M10Hex. nut M10
-
32503190231 Wheel 180 ass'y (yellow). Includes 32 - 33.Wheel 180 ass'y (yellow). Includes 32 - 33.
-
33405404500 Ball bearing 6205Ball bearing 6205
-
34503160700 Rear axleRear axle
-
35250000019 Hex. screw with nylonHex. screw with nylon
-
36503183300 WasherWasher
-
37503189809 Outer spacerOuter spacer
-
38503182900 Inner spacerInner spacer
-
39503190232 Wheel 180 ass'y. Includes 39 - 40.Wheel 180 ass'y. Includes 39 - 40.
-
40405404500 Ball bearing 6205Ball bearing 6205
-
41503183000 Central spacerCentral spacer
-
42503180400 WasherWasher
-
43516001731 DecalDecal
