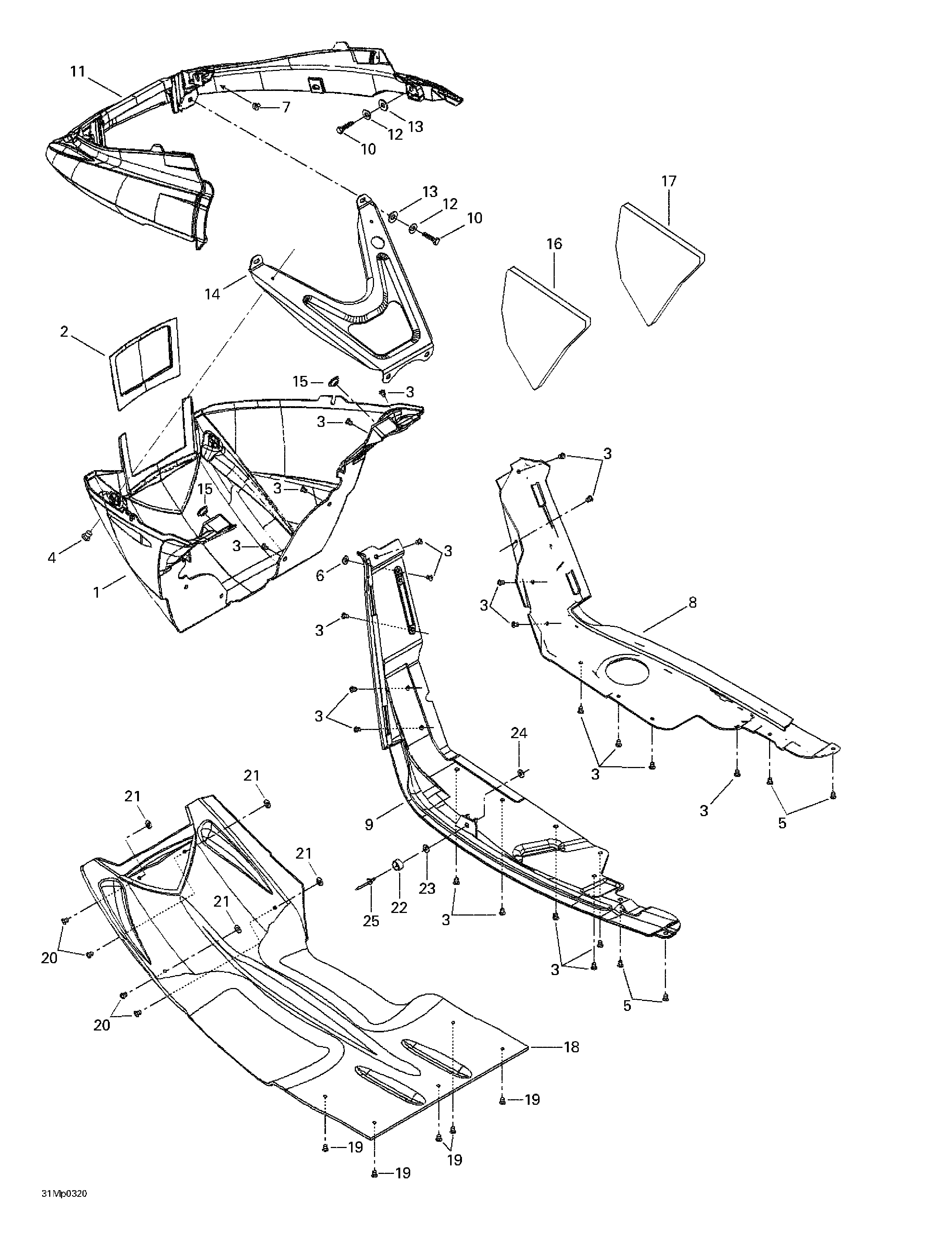

09- Bottom Pan для BRP Ski-Doo MX Z Blair Morgan Special Edition - 2003
-
№АртикулНазвание
-
1502006704 Front bottom panFront bottom pan
-
2502006687 Bottom pan grillBottom pan grill
-
3293150104 Pop rivet 3/16''Pop rivet 3/16''
-
4293150108 Pop rivet 3/16''Pop rivet 3/16''
-
5293150103 Pop rivet 3/16''Pop rivet 3/16''
-
6517124300 WasherWasher
-
7293100003 Nut M6Nut M6
-
8502006606 R.H. bottom panR.H. bottom pan
-
9502006678 L.H. bottom panL.H. bottom pan
-
10207161444 Hex. screw M6 x 14Hex. screw M6 x 14
-
11502006680 Bumper (yellow (B-190))Bumper (yellow (B-190))
-
12234161471 Lock washer 6 mmLock washer 6 mm
-
13224061121 Flat washerFlat washer
-
14502006682 SupportSupport
-
15414916600 Nylon plugNylon plug
-
16502006683 L.H. foamL.H. foam
-
17502006684 R.H. foamR.H. foam
-
18502006705 Protection plateProtection plate
-
19293150104 Pop rivet 3/16''Pop rivet 3/16''
-
20293150108 Pop rivet 3/16''Pop rivet 3/16''
-
21517124300 WasherWasher
-
22415018100 Rubber StopperRubber Stopper
-
23250200024 Washer 5 mmWasher 5 mm
-
24293150007 WasherWasher
-
25390401600 Pop rivet 1/8''Pop rivet 1/8''
