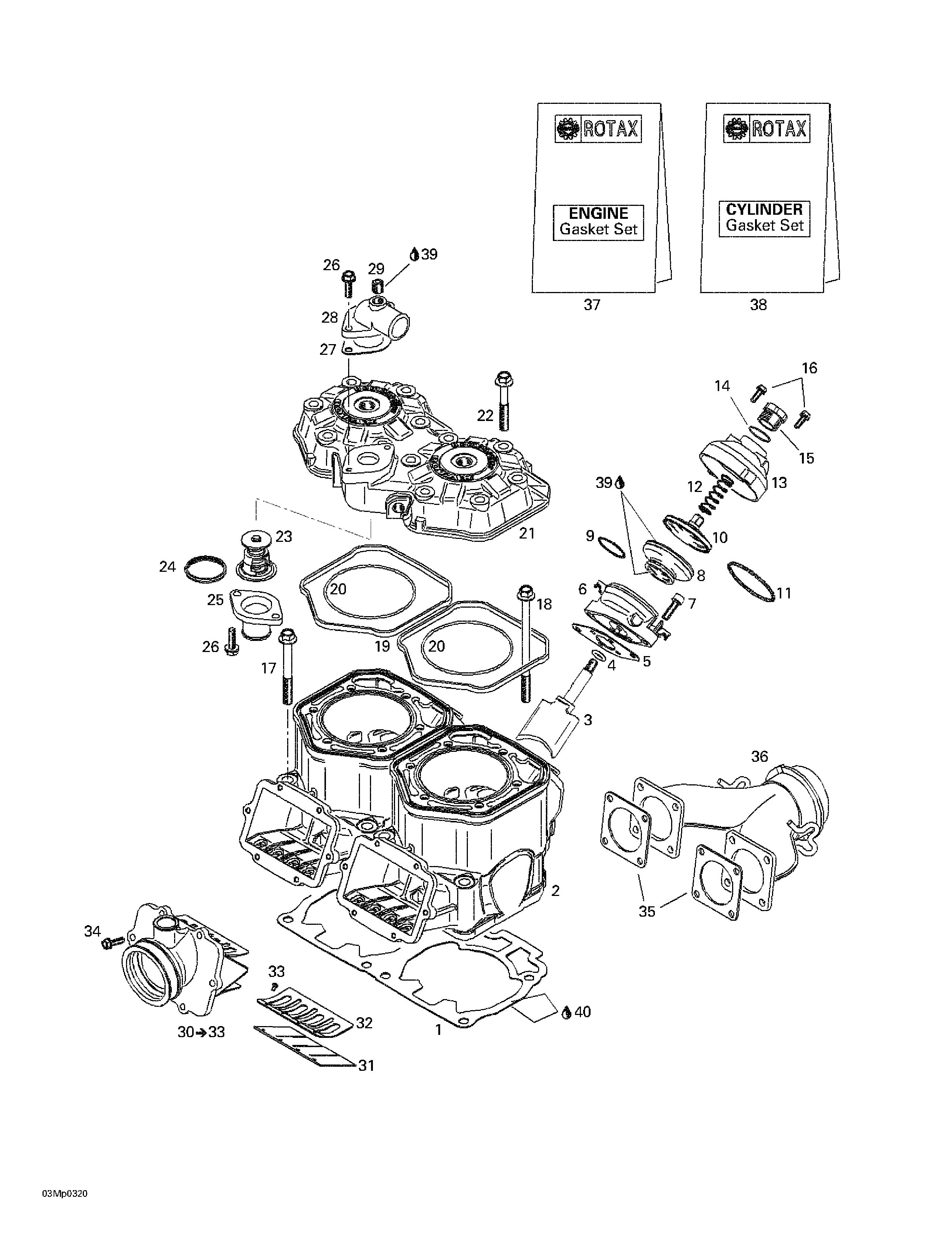

01- Cylinder, Exhaust Manifold, Reed Valve для BRP Ski-Doo MX Z Blair Morgan Special Edition - 2003
-
№АртикулНазвание
-
1420931839 Gasket 0.8 mmGasket 0.8 mm
-
420931964 Gasket 0.7 mmGasket 0.7 mm
-
420931837 Gasket 0.6 mmGasket 0.6 mm
-
420931838 Gasket 0.5 mmGasket 0.5 mm
-
2420923817 Nicasil cylinderNicasil cylinder
-
3420854465 Exhaust valveExhaust valve
-
4420430110 O-ringO-ring
-
5420931542 GasketGasket
-
6420854455 Valve housingValve housing
-
7205062544 Socket head screw M6 x 25Socket head screw M6 x 25
-
8420260729 BellowsBellows
-
9420838253 Spring clampSpring clamp
-
10420854449 Exhaust valveExhaust valve
-
11290239048 Hose springHose spring
-
12420239940 SpringSpring
-
13290911558 Valve coverValve cover
-
14420430220 O-ringO-ring
-
15420241221 Adjuster screwAdjuster screw
-
16420241270 Screw M5 x 25Screw M5 x 25
-
17420640524 Hex. collar screw M10 x 80Hex. collar screw M10 x 80
-
18420640534 Hex. collar screw M10 x 120Hex. collar screw M10 x 120
-
19420931590 Rubber ringRubber ring
-
20290931410 O-ringO-ring
-
21420923825 Cylinder head (silver)Cylinder head (silver)
-
22420941621 Hex. collar screw M8 x 56.5Hex. collar screw M8 x 56.5
-
23420922517 Thermostat (42 Deg.)Thermostat (42 Deg.)
-
24420931272 Sealing ringSealing ring
-
25420922025 Outlet socketOutlet socket
-
26420941250 Screw M6 x 20Screw M6 x 20
-
27420850338 GasketGasket
-
28420922062 Bent outlet socketBent outlet socket
-
29420240480 Plug screw 1/8-27 NPTPlug screw 1/8-27 NPT
-
30420867879 Intake socket ass'y. Includes 30 - 33.Intake socket ass'y. Includes 30 - 33.
-
31420924680 Reed pedalReed pedal
-
32420924695 Reed pedal stopReed pedal stop
-
33420941215 Screw M3 x 5Screw M3 x 5
-
34420941925 Screw M5 x 16Screw M5 x 16
-
35420931850 GasketGasket
-
36420973713 Exhaust manifoldExhaust manifold
-
37420888741 Engine gasket setEngine gasket set
-
38420888745 Cylinder gasket setCylinder gasket set
-
39420297906 Sealing compound, 30 mlSealing compound, 30 ml
-
40293800038 Loctite 518, 50 mlLoctite 518, 50 ml
