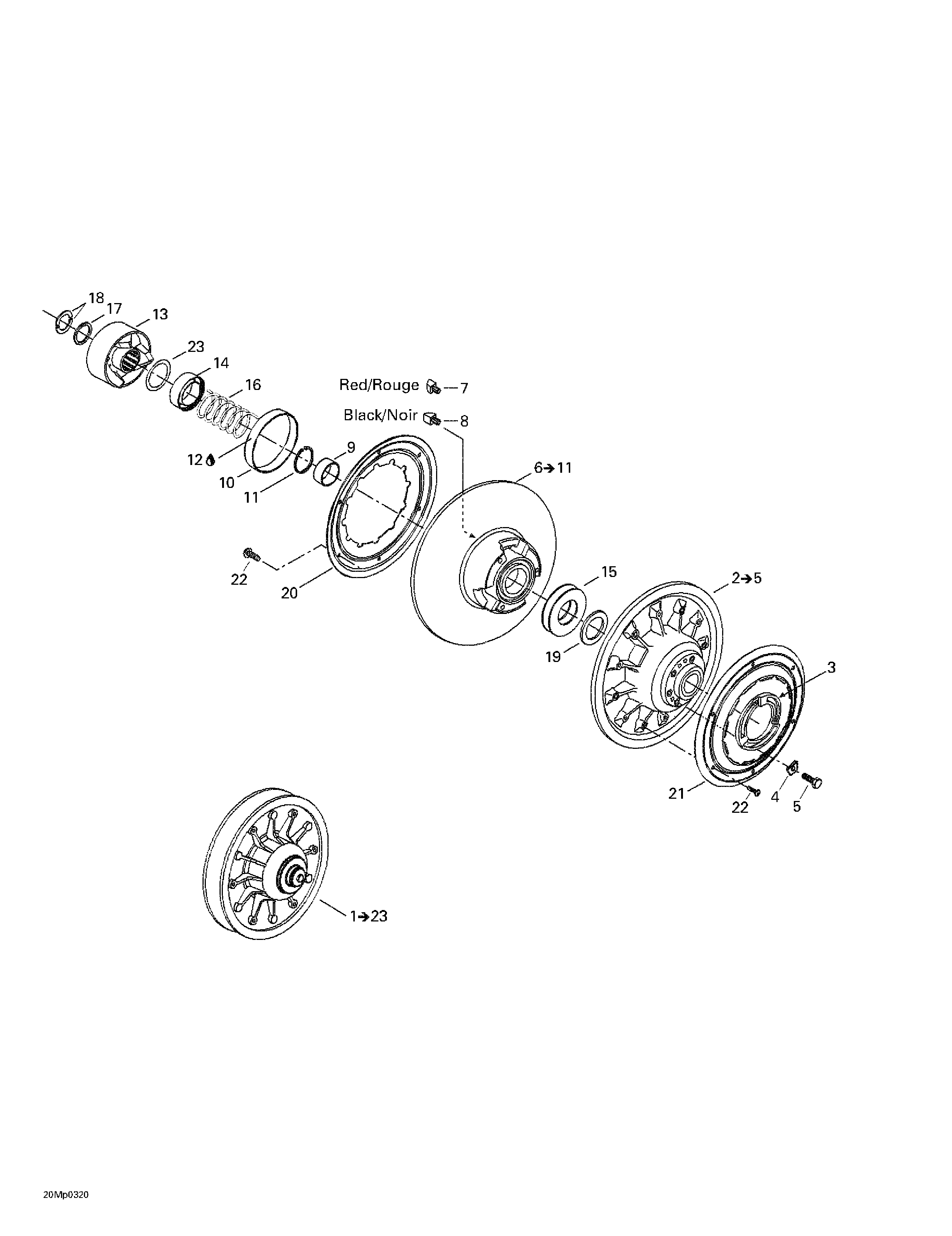

05- Driven Pulley для BRP Ski-Doo MX Z Blair Morgan Special Edition - 2003
-
№АртикулНазвание
-
2417126603 Fixed flange ass'y. Includes 2 - 5.Fixed flange ass'y. Includes 2 - 5.
-
3415005800 Adjustment ringAdjustment ring
-
4415005900 Adjustment shimAdjustment shim
-
5207162544 Hex. screw M6 x 25Hex. screw M6 x 25
-
207162244 Hex. screw M6 x 22Hex. screw M6 x 22
-
6417126605 Sliding flange ass'y. Includes 6 - 11.Sliding flange ass'y. Includes 6 - 11.
-
7417126373 Rear cam slider shoeRear cam slider shoe
-
8417126374 Front cam slider shoeFront cam slider shoe
-
10414978100 BushingBushing
-
11371911200 CirclipCirclip
-
12413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
13417126385 Cam ass'yCam ass'y
-
14417126381 GuardGuard
-
15504099600 Stopper washerStopper washer
-
16417126687 Release spring (black)Release spring (black)
-
17417126375 SpacerSpacer
-
18371911000 Half keyHalf key
-
19504112300 ShimShim
-
20417126698 CoverCover
-
21504151831 Aerodynamic coverAerodynamic cover
-
22210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
23417126322 Abutment swivelAbutment swivel
