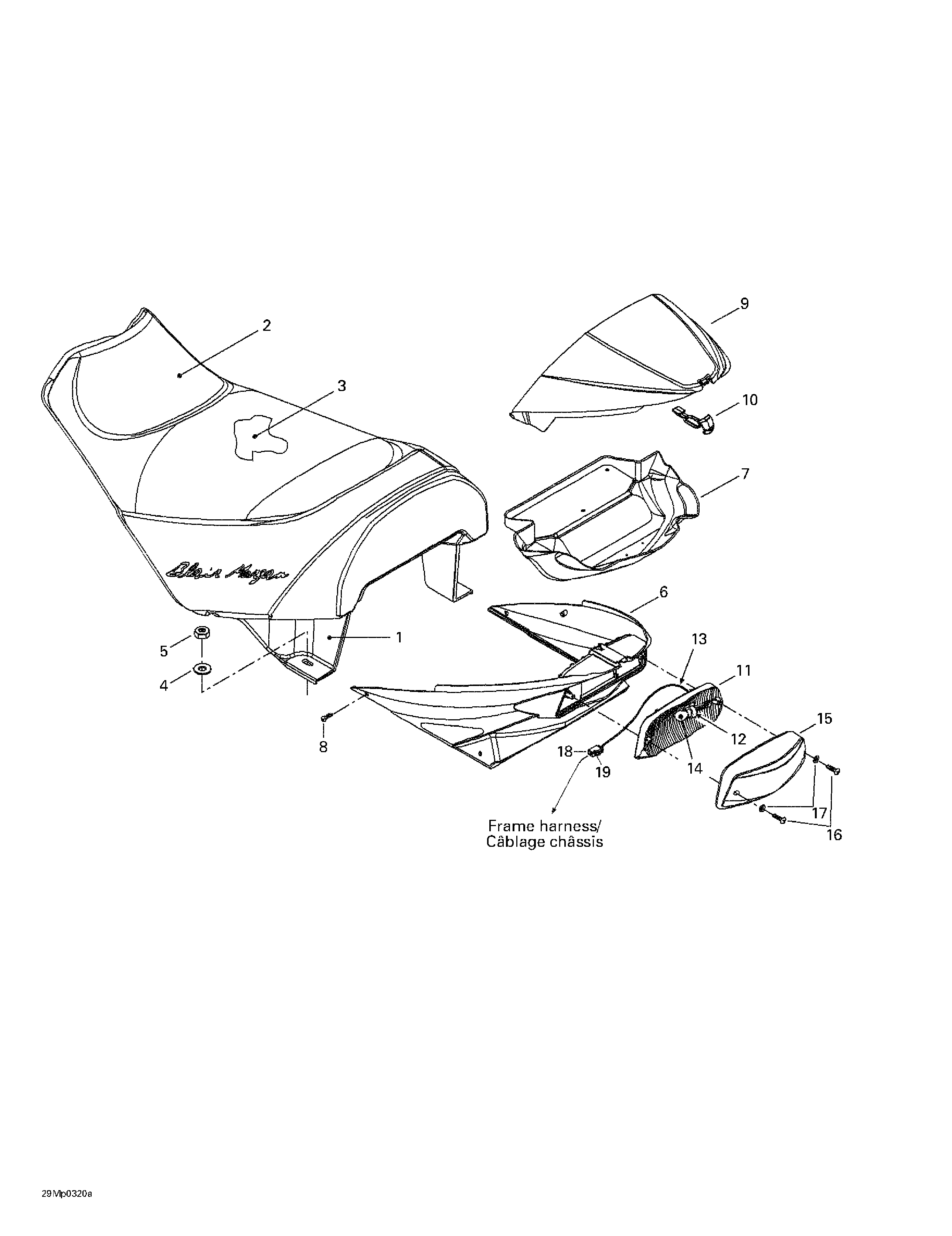

09- Seat для BRP Ski-Doo MX Z Blair Morgan Special Edition - 2003
-
№АртикулНазвание
-
1510003819 Seat baseSeat base
-
2510004176 Seat coverSeat cover
-
3510003821 Seat foamSeat foam
-
4234082410 Flat washer 8 mmFlat washer 8 mm
-
5232581414 Elastic stop nut M8Elastic stop nut M8
-
6510004138 Trunk (BLACK (B-160))Trunk (BLACK (B-160))
-
7510004021 Box linerBox liner
-
8250000123 Phillips screw M6 x 16Phillips screw M6 x 16
-
9510004160 Cover (YELLOW (B-190))Cover (YELLOW (B-190))
-
10510003917 BracketBracket
-
11510004018 ReflectorReflector
-
12414979411 Rubber damperRubber damper
-
13515175940 FittingFitting
-
14410504100 Tail lamp bulbTail lamp bulb
-
15510003826 LensLens
-
16209632580 Phillips tapping screw 3.9 x 25Phillips tapping screw 3.9 x 25
-
17414516400 WasherWasher
-
18515175494 Male terminal housingMale terminal housing
-
19515175232 Male terminalMale terminal
