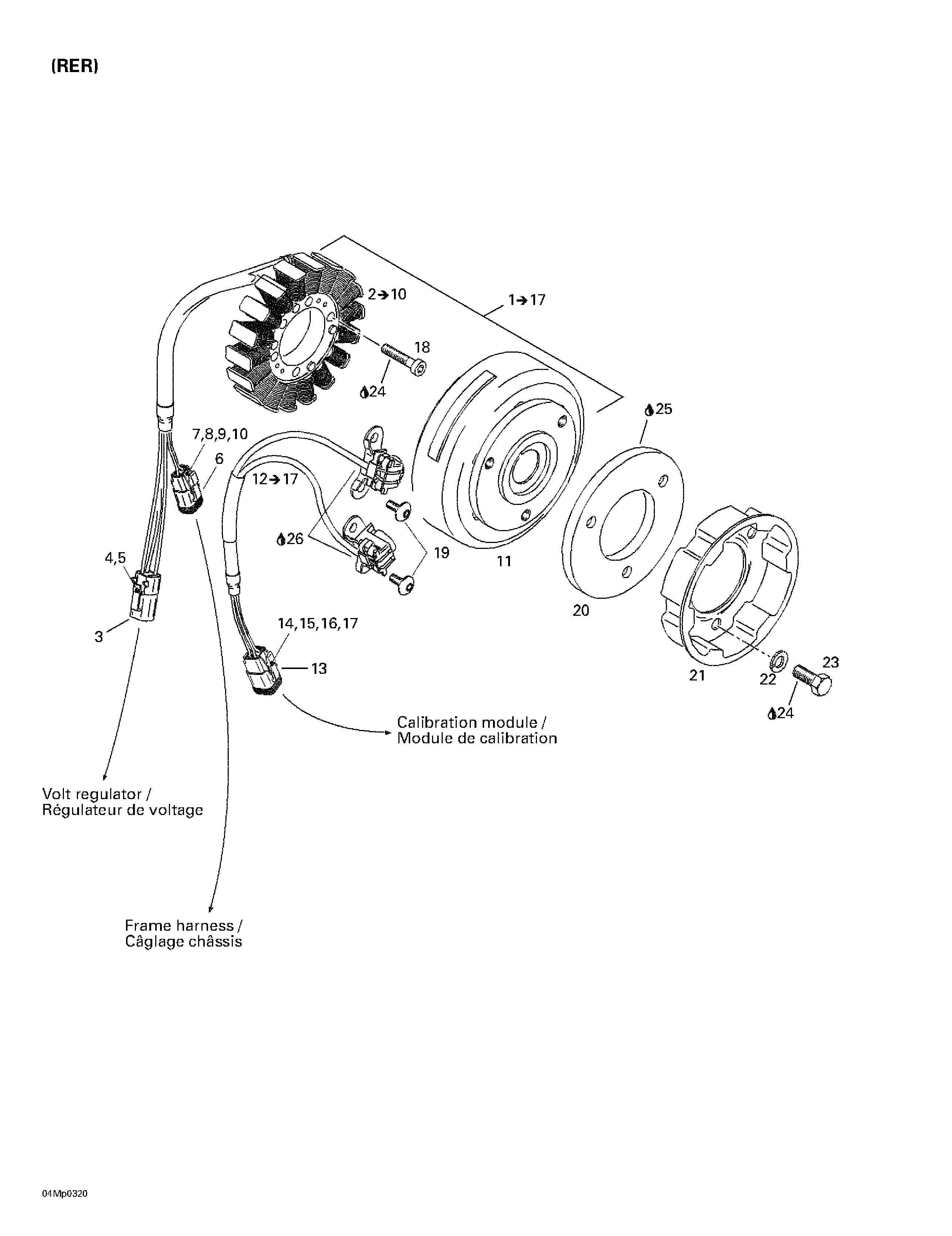

03- Magneto (12V, 360W) для BRP Ski-Doo MX Z Blair Morgan Special Edition - 2003
-
№АртикулНазвание
-
2410922946 Stator plate. Includes 2 - 10.Stator plate. Includes 2 - 10.
-
3278001473 Female terminal housing (4 circuits)Female terminal housing (4 circuits)
-
4515175568 Male TerminalMale Terminal
-
5278001474 Female lock (4 circuits)Female lock (4 circuits)
-
6515175670 Female terminal housing (2 circuits)Female terminal housing (2 circuits)
-
7278000632 Female terminalFemale terminal
-
8278001661 Female terminalFemale terminal
-
9515175675 Female lock (2 circuits)Female lock (2 circuits)
-
10293000052 PlugPlug
-
11410922947 FlywheelFlywheel
-
12410922948 Pick-up ass'y. Includes 12 - 17.Pick-up ass'y. Includes 12 - 17.
-
13515175672 Female terminal housing (4 circuits)Female terminal housing (4 circuits)
-
14278000632 Female terminalFemale terminal
-
15278001661 Female terminalFemale terminal
-
16515175677 Female lock (4 circuits)Female lock (4 circuits)
-
17293000052 PlugPlug
-
18205063044 Socket head screw M6 x 30Socket head screw M6 x 30
-
19420640321 Screw M5 x 16Screw M5 x 16
-
20420866756 Counter weightCounter weight
-
21420852532 Pulley startingPulley starting
-
22420945752 Lock washer 8 mmLock washer 8 mm
-
23207182044 Hex. screw M8 x 20Hex. screw M8 x 20
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
26293530011 Sealant, Sikaflex black # 221Sealant, Sikaflex black # 221
