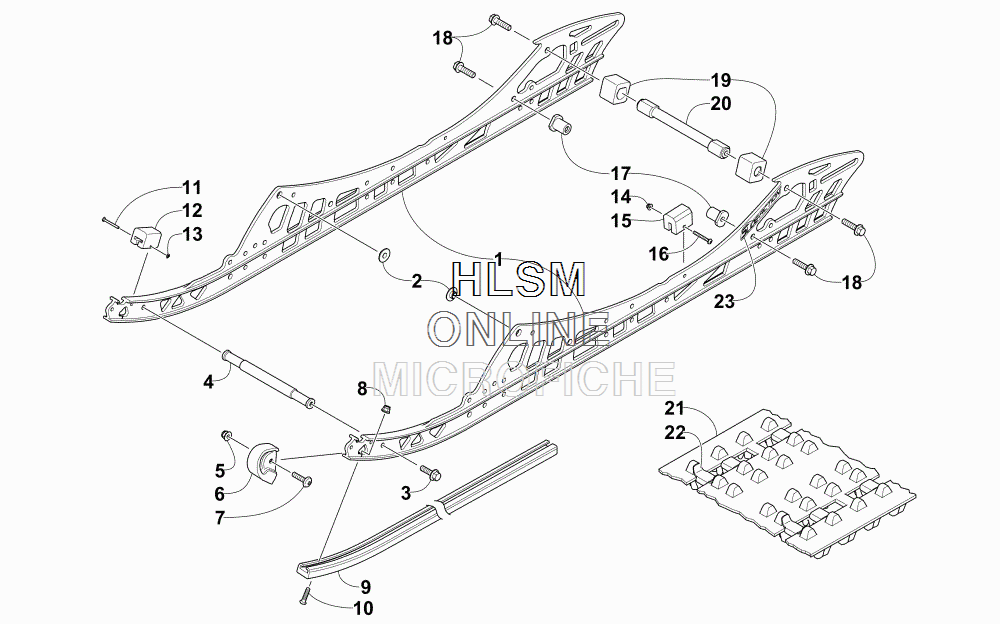

TRACK ASSEMBLY W/ SLIDE RAIL для Arctic Cat XF 7000 LXR 137 (GREEN) [S2015XFULXUSG] - 2015 года выпуска

‹-+›
  • №
    Артикул
    Название
  • -
    2704-626 COMPLETE SKID FRAME ASSEMBLY
    COMPLETE SKID FRAME ASSEMBLY
  • 1
    3604-994 RAIL, FORMED
    RAIL, FORMED
  • 2
    3604-266 INSERT, RAIL
    INSERT, RAIL
  • 3
    8408-826 SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353
    SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353
  • 4
    3604-679 AXLE
    AXLE
  • 5
    8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
  • 6
    3604-003 END CAP, SLIDE RAIL
    END CAP, SLIDE RAIL
  • 7
    8476-625 SCREW,MACH-TSTRH M6X1.0X25 Z & Y
    SCREW,MACH-TSTRH M6X1.0X25 Z & Y
  • 8
    8047-366 NUT,HEX FLG-NY LOCK 1/4-20 GR F Z & Y
    NUT,HEX FLG-NY LOCK 1/4-20 GR F Z & Y
  • 9
    3604-864 WEARSTRIP - BLACK
    WEARSTRIP - BLACK
  • 10
    0123-859 SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z & Y
    SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z & Y
  • 11
    0123-767 RIVET,SOLID-1/8 X 1.50
    RIVET,SOLID-1/8 X 1.50
  • 12
    0104-631 PAD,SHOCK-RUBBER
    PAD,SHOCK-RUBBER
  • 13
    0123-766 NUT,PUSH-.125 STUD
    NUT,PUSH-.125 STUD
  • 14
    8427-502 NUT,HEX FLG-NYL LOCK M5X.8 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M5X.8 CL8 Z & Y
  • 15
    1604-429 PAD,SHOCK-RUBBER
    PAD,SHOCK-RUBBER
  • 16
    8470-540 SCREW,MACH-TSPNH M5X.8X40 CL8.8 Z & Y
    SCREW,MACH-TSPNH M5X.8X40 CL8.8 Z & Y
  • 17
    3604-979 AXLE, OFFSET ARM - M10
    AXLE, OFFSET ARM - M10
  • 18
    8413-031 SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353
    SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353
  • 19
    2604-545 BLOCK, REAR ARM COUPLER
    BLOCK, REAR ARM COUPLER
  • 20
    3604-668 AXLE
    AXLE
  • 21
    2602-627 TRACK ASSEMBLY (INC. 22)
    TRACK ASSEMBLY (INC. 22)
  • 22
    2602-386 ...CLIP, GUIDE
    ...CLIP, GUIDE
  • 23
    0621-907 DECAL, "SLIDE ACTION"
    DECAL, "SLIDE ACTION"
