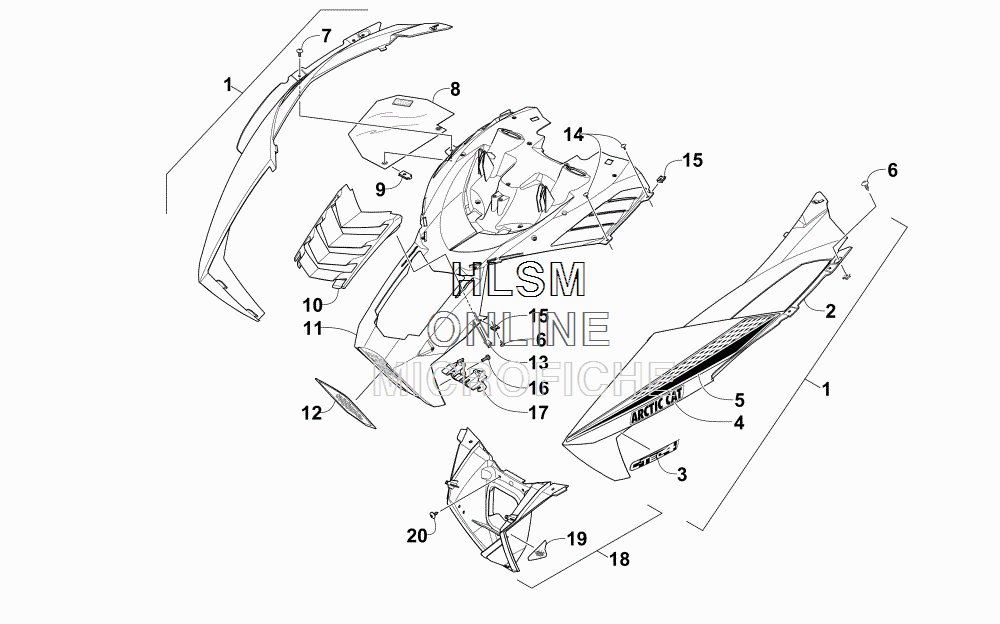

HOOD ASSEMBLY для Arctic Cat XF 7000 LXR 137 (GREEN) [S2015XFULXUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-442 HOOD W/DECALS - RIGHT - (TEAM ARCTIC GREEN) (INC. 2-5)
    HOOD W/DECALS - RIGHT - (TEAM ARCTIC GREEN) (INC. 2-5)
  • 1
    4718-443 HOOD W/DECALS - LEFT - (TEAM ARCTIC GREEN) (INC. 2-5)
    HOOD W/DECALS - LEFT - (TEAM ARCTIC GREEN) (INC. 2-5)
  • 2
    6606-516 ...HOOD W/O DECALS - RIGHT - (TEAM ARCTIC GREEN)
    ...HOOD W/O DECALS - RIGHT - (TEAM ARCTIC GREEN)
  • 2
    6606-517 ...HOOD W/O DECALS - LEFT - (TEAM ARCTIC GREEN)
    ...HOOD W/O DECALS - LEFT - (TEAM ARCTIC GREEN)
  • 3
    0621-993 ...DECAL, HOOD - "C-TEC"
    ...DECAL, HOOD - "C-TEC"
  • 4
    0621-755 ...DECAL, "ARCTIC CAT"
    ...DECAL, "ARCTIC CAT"
  • 5
    1621-571 ...DECAL, HOOD - LEFT
    ...DECAL, HOOD - LEFT
  • 5
    1621-570 ...DECAL, HOOD - RIGHT
    ...DECAL, HOOD - RIGHT
  • 6
    0623-784 SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)
    SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)
  • 7
    1623-031 SCREW,SELF TAP-TSTRH #10-12X1.00
    SCREW,SELF TAP-TSTRH #10-12X1.00
  • 8
    1712-899 SHIELD, HEAT - RIGHT
    SHIELD, HEAT - RIGHT
  • 9
    1623-030 NUT,SPEED-#10B U TYPE
    NUT,SPEED-#10B U TYPE
  • 10
    6606-388 GRILLE, INTERCOOLER
    GRILLE, INTERCOOLER
  • 11
    6606-510 PLENUM, INTAKE - UPPER
    PLENUM, INTAKE - UPPER
  • 12
    0608-696 SCREEN, VENT
    SCREEN, VENT
  • 13
    1623-694 CLIP,RETAINING-HOOD LINER
    CLIP,RETAINING-HOOD LINER
  • 14
    0623-797 SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP
    SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP
  • 15
    1623-939 CLIP, U-NUT
    CLIP, U-NUT
  • 16
    1623-933 SCREW,PLASTITE-TXSPNH 10-14X3/4 Z & B
    SCREW,PLASTITE-TXSPNH 10-14X3/4 Z & B
  • 17
    6606-822 RETAINER, PLENUM
    RETAINER, PLENUM
  • 18
    5706-992 PLENUM, INTAKE - LOWER FRONT (INC. 19)
    PLENUM, INTAKE - LOWER FRONT (INC. 19)
  • 19
    0621-989 ...DECAL, REFLECTOR - (AMBER)
    ...DECAL, REFLECTOR - (AMBER)
  • 20
    1623-129 SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
    SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
