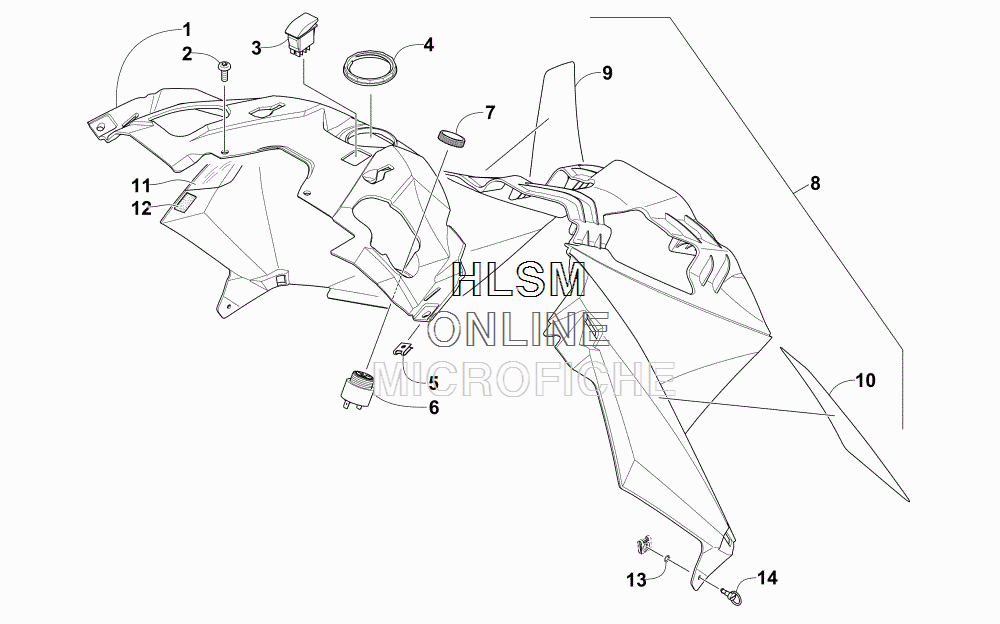

CONSOLE ASSEMBLY для Arctic Cat XF 7000 LXR 137 (GREEN) [S2015XFULXUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    5706-161 CONSOLE, UPPER - (BLACK)
    CONSOLE, UPPER - (BLACK)
  • 2
    0423-396 SCREW,SELF TAP-TSPH M6-1.0X15
    SCREW,SELF TAP-TSPH M6-1.0X15
  • 3
    0609-836 SWITCH, HEATED SEAT
    SWITCH, HEATED SEAT
  • 4
    6606-390 NUT,RETAINING-CONSOLE
    NUT,RETAINING-CONSOLE
  • 5
    1623-939 NUT,SPEED-#10 B "U" TYPE
    NUT,SPEED-#10 B "U" TYPE
  • 6
    0630-243 ALARM, REVERSE (INC. 7)
    ALARM, REVERSE (INC. 7)
  • 7
    0630-017 ...RING,RETAINING-REV ALARM
    ...RING,RETAINING-REV ALARM
  • 8
    4718-454 CONSOLE, LOWER - (BLACK) (INC. 9-12)
    CONSOLE, LOWER - (BLACK) (INC. 9-12)
  • 9
    9611-499 ...DECAL, WARNING (ENGLISH)
    ...DECAL, WARNING (ENGLISH)
  • 10
    9611-498 ...DECAL, WARNING (FRENCH)
    ...DECAL, WARNING (FRENCH)
  • 11
    6606-812 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 12
    6990-323 ...VELCRO - 3 FT
    ...VELCRO - 3 FT
  • 13
    2623-004 RETAINER,RING-SPLIT
    RETAINER,RING-SPLIT
  • 14
    2623-003 PIN, RETAINING
    PIN, RETAINING
