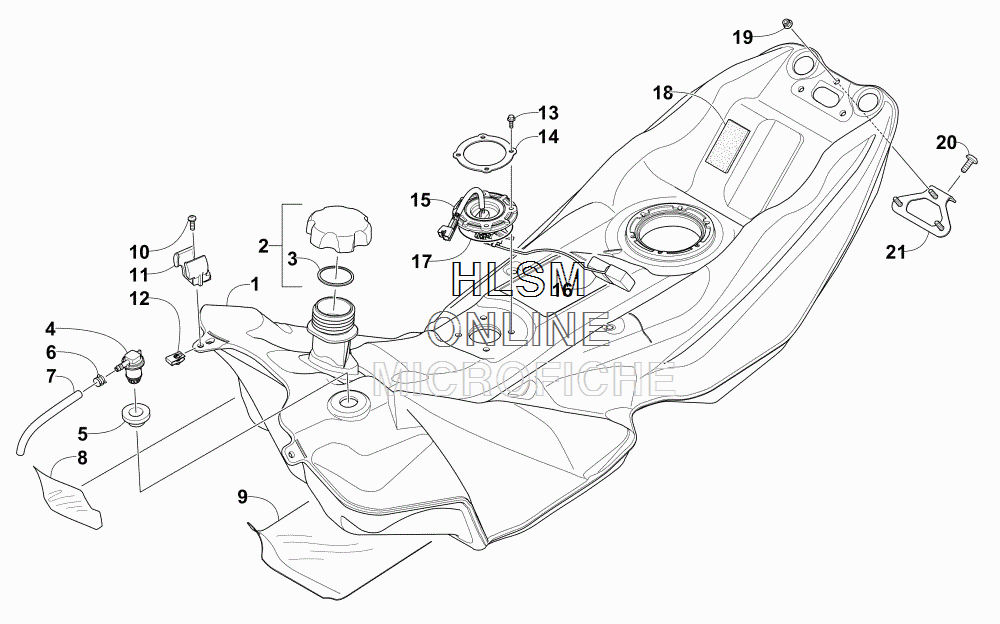

GAS TANK ASSEMBLY для Arctic Cat XF 7000 LXR 137 (GREEN) [S2015XFULXUSG] - 2015 года выпуска
-
№АртикулНазвание
-
11770-035 TANK, GAS - ASSEMBLY (INC. 2-5)TANK, GAS - ASSEMBLY (INC. 2-5)
-
20470-438 ...CAP, GAS TANK (INC. 3)...CAP, GAS TANK (INC. 3)
-
30109-733 ......GASKET, GAS TANK CAP......GASKET, GAS TANK CAP
-
41670-787 ...VALVE, CHECK...VALVE, CHECK
-
51670-822 ...GROMMET,3/4"-FUEL TANK...GROMMET,3/4"-FUEL TANK
-
61623-233 CLAMP, HOSECLAMP, HOSE
-
76101-009 HOSE, GASLINE - 50 FTHOSE, GASLINE - 50 FT
-
76101-001 HOSE, GASLINE - 100 FTHOSE, GASLINE - 100 FT
-
82670-451 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
92670-434 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
108470-516 SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z & YSCREW,MACH-TSPNH M5X.8X16 CL8.8 Z & Y
-
112670-339 BRACKET, MOUNTING - FUEL FILTERBRACKET, MOUNTING - FUEL FILTER
-
121623-637 CLIP, U-NUTCLIP, U-NUT
-
138408-517 SCREW,CAP-HFH M5X0.8X16 CL8.8 Z & Y W/2353SCREW,CAP-HFH M5X0.8X16 CL8.8 Z & Y W/2353
-
142670-431 PLATE, RETAININGPLATE, RETAINING
-
152670-386 SENSOR, FUEL LEVEL (INC. 16)SENSOR, FUEL LEVEL (INC. 16)
-
162670-235 ...FLOAT,FUEL PUMP-WALBRO 75-22...FLOAT,FUEL PUMP-WALBRO 75-22
-
172623-035 O-RING,46.9 ID X 5.3MM WIDE - 2-328O-RING,46.9 ID X 5.3MM WIDE - 2-328
-
180645-760 PAD, BATTERYPAD, BATTERY
-
198427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & YNUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
-
208477-616 SCREW,MACH-TSTRH M6X1.0X16 Z & (BLACK)SCREW,MACH-TSTRH M6X1.0X16 Z & (BLACK)
-
215706-771 BRACKET, HOLD-DOWNBRACKET, HOLD-DOWN
