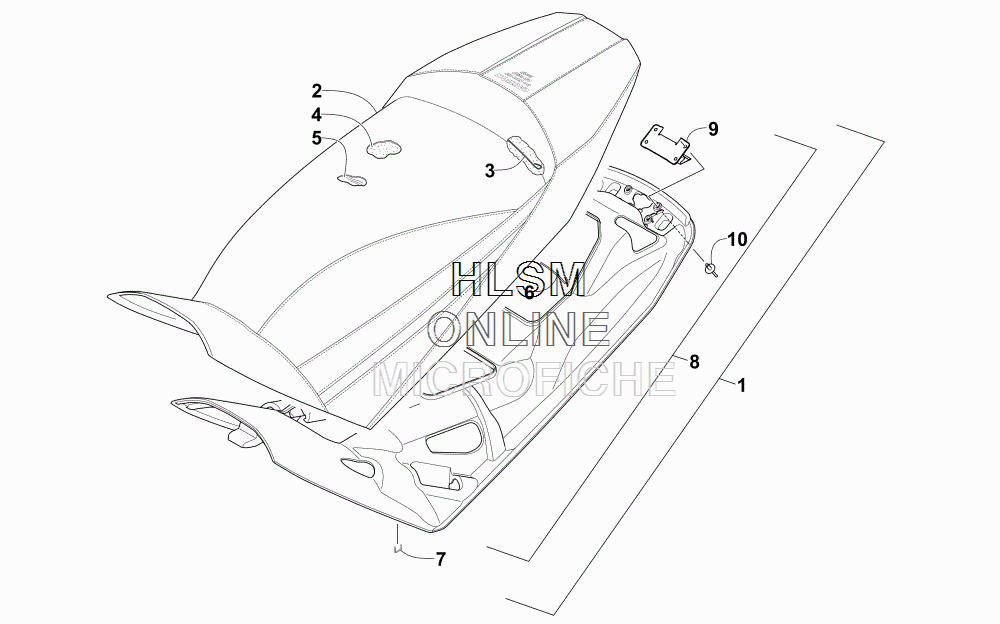

SEAT ASSEMBLY для Arctic Cat XF 7000 LXR 137 (GREEN) [S2015XFULXUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    5706-518 COMPLETE SEAT ASSEMBLY - (GREEN) (INC. 2-10)
    COMPLETE SEAT ASSEMBLY - (GREEN) (INC. 2-10)
  • 2
    5706-520 ...COVER, SEAT - (GREEN) (INC. 3)
    ...COVER, SEAT - (GREEN) (INC. 3)
  • 3
    3606-369 ......WIRE,SEAT-BENT
    ......WIRE,SEAT-BENT
  • 4
    0717-214 ...FOAM,SEAT-(64-70 ILD).48R@3.6
    ...FOAM,SEAT-(64-70 ILD).48R@3.6
  • 5
    0609-913 ...PAD, SEAT HEATER
    ...PAD, SEAT HEATER
  • 6
    6606-461 ...WIRE,SEAT-3.048 DIA X 279.4 MM
    ...WIRE,SEAT-3.048 DIA X 279.4 MM
  • 7
    0624-528 ...STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA
    ...STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA
  • 8
    5706-770 ...SEAT BASE ASSEMBLY (INC. 9-10)
    ...SEAT BASE ASSEMBLY (INC. 9-10)
  • 9
    6606-833 ......HOOK,SEAT LATCH
    ......HOOK,SEAT LATCH
  • 10
    8061-708 ......RIVET, BLIND-LF SS66 (BLACK)
    ......RIVET, BLIND-LF SS66 (BLACK)
