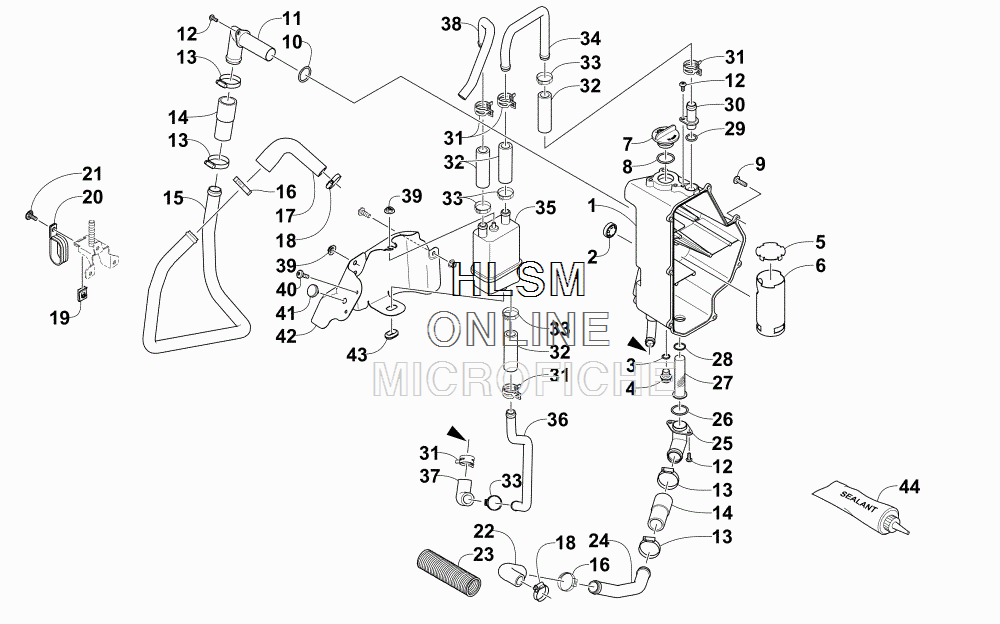

OIL TANK ASSEMBLY для Arctic Cat XF 7000 LXR 137 (GREEN) [S2015XFULXUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    1770-080 TANK, OIL
    TANK, OIL
  • 2
    2670-257 GLASS, SIGHT
    GLASS, SIGHT
  • 3
    1602-213 O-RING
    O-RING
  • 4
    2602-099 PLUG,FILL-12 MM
    PLUG,FILL-12 MM
  • 5
    2670-287 CAP, TUBE
    CAP, TUBE
  • 6
    2670-219 TUBE, OIL TANK
    TUBE, OIL TANK
  • 7
    2670-224 CAP, OIL TANK (INC. 8)
    CAP, OIL TANK (INC. 8)
  • 8
    2670-135 ...SEAL, CAP - OIL TANK
    ...SEAL, CAP - OIL TANK
  • 9
    1623-814 SCREW,MAG FORM-TXPH-M6X2.0X24
    SCREW,MAG FORM-TXPH-M6X2.0X24
  • 10
    2670-406 O-RING,OIL TANK-0.984 ID X 0.139 THK
    O-RING,OIL TANK-0.984 ID X 0.139 THK
  • 11
    2670-221 FITTING, OIL RETURN - ENGINE
    FITTING, OIL RETURN - ENGINE
  • 12
    1623-969 SCREW,MAG FORM-TXPH-M6X2.0X12 Z & C
    SCREW,MAG FORM-TXPH-M6X2.0X12 Z & C
  • 13
    2623-088 CLAMP,HOSE-23/35
    CLAMP,HOSE-23/35
  • 14
    0610-940 HOSE,22.22/25.4MM ID X 75MM LG-SAE J30
    HOSE,22.22/25.4MM ID X 75MM LG-SAE J30
  • 15
    2670-286 TUBE, OIL - OIL TANK/ENGINE
    TUBE, OIL - OIL TANK/ENGINE
  • 16
    1623-349 CLAMP,H0SE-CRIMP-31.6
    CLAMP,H0SE-CRIMP-31.6
  • 17
    0610-919 HOSE,OIL-16 ID TO 22.22 ID ELBOW
    HOSE,OIL-16 ID TO 22.22 ID ELBOW
  • 18
    1623-182 CLAMP, INERCOOLER-SMALL
    CLAMP, INERCOOLER-SMALL
  • 19
    1623-939 NUT,SPEED-#10 B "U" TYPE
    NUT,SPEED-#10 B "U" TYPE
  • 20
    2623-015 CLAMP,DOUBLE TUBE-.875 DIA
    CLAMP,DOUBLE TUBE-.875 DIA
  • 21
    0623-784 SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)
    SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)
  • 22
    0610-929 HOSE,OIL-16 ID TO 22.22 ID ELBOW
    HOSE,OIL-16 ID TO 22.22 ID ELBOW
  • 23
    0610-790 LOOM, COOLANT HOSE - 5 FT
    LOOM, COOLANT HOSE - 5 FT
  • 24
    2670-285 TUBE, OIL - ENGINE/OIL TANK
    TUBE, OIL - ENGINE/OIL TANK
  • 25
    2670-220 FITTING, OIL SUPPLY - ENGINE
    FITTING, OIL SUPPLY - ENGINE
  • 26
    2670-290 O-RING,OIL TANK(2-120)
    O-RING,OIL TANK(2-120)
  • 27
    2670-222 SCREEN, OIL TANK
    SCREEN, OIL TANK
  • 28
    0673-459 O-RING,3/4ID X 1/16 (-018)
    O-RING,3/4ID X 1/16 (-018)
  • 29
    0670-183 O-RING, 5/8 X 13/16 OD
    O-RING, 5/8 X 13/16 OD
  • 30
    2670-288 FITTING,OIL TANK-VENT
    FITTING,OIL TANK-VENT
  • 31
    1623-287 CLAMP,HOSE-SPRING (12W X 24)
    CLAMP,HOSE-SPRING (12W X 24)
  • 32
    0610-965 HOSE,BREATHER-OIL TANK-60MM
    HOSE,BREATHER-OIL TANK-60MM
  • 33
    1623-350 CLAMP,H0SE-CRIMP-25.6
    CLAMP,H0SE-CRIMP-25.6
  • 34
    2670-419 TUBE, OIL - OIL TANK/SEPARATOR TANK
    TUBE, OIL - OIL TANK/SEPARATOR TANK
  • 35
    1770-058 TANK, SEPARATOR
    TANK, SEPARATOR
  • 36
    2670-375 TUBE, OIL - SEPARATOR TANK/OIL TANK
    TUBE, OIL - SEPARATOR TANK/OIL TANK
  • 37
    0610-954 HOSE,OIL TANK-FORMED
    HOSE,OIL TANK-FORMED
  • 38
    2670-374 TUBE, OIL - SEPARATOR TANK/AIR INTAKE
    TUBE, OIL - SEPARATOR TANK/AIR INTAKE
  • 39
    0423-357 NUT, STAMPED-1/4" (SD 25001 SOH)
    NUT, STAMPED-1/4" (SD 25001 SOH)
  • 40
    8470-510 SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z & Y
    SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z & Y
  • 41
    0406-877 BUMPER,SEAT
    BUMPER,SEAT
  • 42
    2670-381 SHIELD, HEAT
    SHIELD, HEAT
  • 43
    2623-012 GROMMET, RUBBER-OVAL 5/8"W X 1 1/32"LG
    GROMMET, RUBBER-OVAL 5/8"W X 1 1/32"LG
  • 44
    1048-063 LOCTITE,5699-GASKET MAKER (70ML)
    LOCTITE,5699-GASKET MAKER (70ML)
