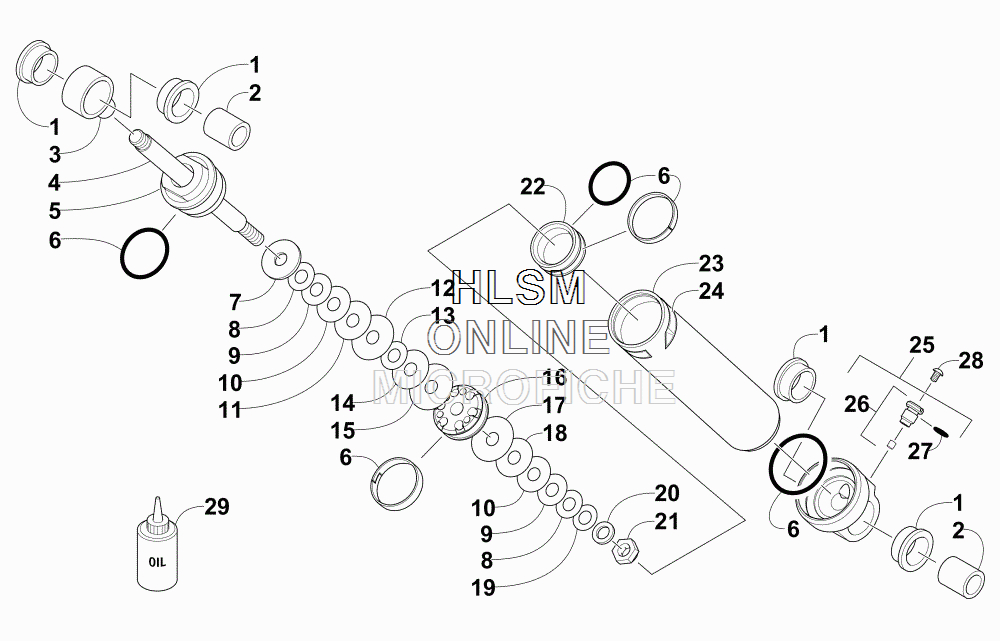

SUSPENSION REAR - REAR ARM SHOCK ABSORBER для Arctic Cat XF 7000 LXR 137 (GREEN) [S2015XFULXUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • -
    2704-362 SHOCK ABSORBER
    SHOCK ABSORBER
  • 1
    3604-738 BUSHING,REAR SHOCK
    BUSHING,REAR SHOCK
  • 2
    3604-737 SLEEVE - 20.65 OD X 14.5 ID X 24.2
    SLEEVE - 20.65 OD X 14.5 ID X 24.2
  • 3
    3604-796 EYELET, SHOCK
    EYELET, SHOCK
  • 4
    3604-810 ROD, SHOCK
    ROD, SHOCK
  • 5
    4604-126 BEARING - ASSEMBLY
    BEARING - ASSEMBLY
  • 6
    4604-121 KIT, SEAL/REBUILD
    KIT, SEAL/REBUILD
  • 7
    3604-789 WASHER.TOP OUT-29.5 OD X 9.60 ID X 2 THK
    WASHER.TOP OUT-29.5 OD X 9.60 ID X 2 THK
  • 8
    3603-105 VALVE, 0.800 X 0.010 IN.
    VALVE, 0.800 X 0.010 IN.
  • 9
    3603-115 VALVE, 0.900 X 0.010 IN.
    VALVE, 0.900 X 0.010 IN.
  • 10
    3603-125 VALVE, 1.000 X 0.010 IN.
    VALVE, 1.000 X 0.010 IN.
  • 11
    3603-145 VALVE, 1.100 X 0.010 IN.
    VALVE, 1.100 X 0.010 IN.
  • 12
    3603-175 VALVE, 1.250 X 0.010 IN.
    VALVE, 1.250 X 0.010 IN.
  • 13
    3603-102 VALVE, 0.800 X 0.006 IN.
    VALVE, 0.800 X 0.006 IN.
  • 14
    3603-144 VALVE, 1.100 X 0.008 IN.
    VALVE, 1.100 X 0.008 IN.
  • 15
    3603-186 VALVE, 1.300 X 0.012 IN.
    VALVE, 1.300 X 0.012 IN.
  • 16
    2603-018 PISTON, 0.055 IN. - ORIFICE
    PISTON, 0.055 IN. - ORIFICE
  • 17
    3603-176 VALVE, 1.250 X 0.012 IN.
    VALVE, 1.250 X 0.012 IN.
  • 18
    3603-146 VALVE, 1.100 X 0.012 IN.
    VALVE, 1.100 X 0.012 IN.
  • 19
    3603-095 VALVE, 0.700 X 0.010 IN.
    VALVE, 0.700 X 0.010 IN.
  • 20
    3604-775 WASHER, BACKUP
    WASHER, BACKUP
  • 21
    3604-739 NUT, HEX - 3/8"-24UNF
    NUT, HEX - 3/8"-24UNF
  • 22
    3604-772 PISTON, FLOATING ASSEMBLY
    PISTON, FLOATING ASSEMBLY
  • 23
    3604-811 BODY, SHOCK
    BODY, SHOCK
  • 24
    1621-728 DECAL, WARNING - HIGH PRESSURE
    DECAL, WARNING - HIGH PRESSURE
  • 25
    2704-257 END CAP, SHOCK - ASSEMBLY (INC. 26-27)
    END CAP, SHOCK - ASSEMBLY (INC. 26-27)
  • 26
    3604-751 ...VALVE, PRESSURE (INC. 27)
    ...VALVE, PRESSURE (INC. 27)
  • 27
    3604-733 ......O-RING, VALVE
    ......O-RING, VALVE
  • 28
    3604-750 SCREW.MACH-#8-32 X 5MM-SS
    SCREW.MACH-#8-32 X 5MM-SS
  • 29
    5639-530 SEMI-SYN SHOCK OIL-1 QUART
    SEMI-SYN SHOCK OIL-1 QUART
