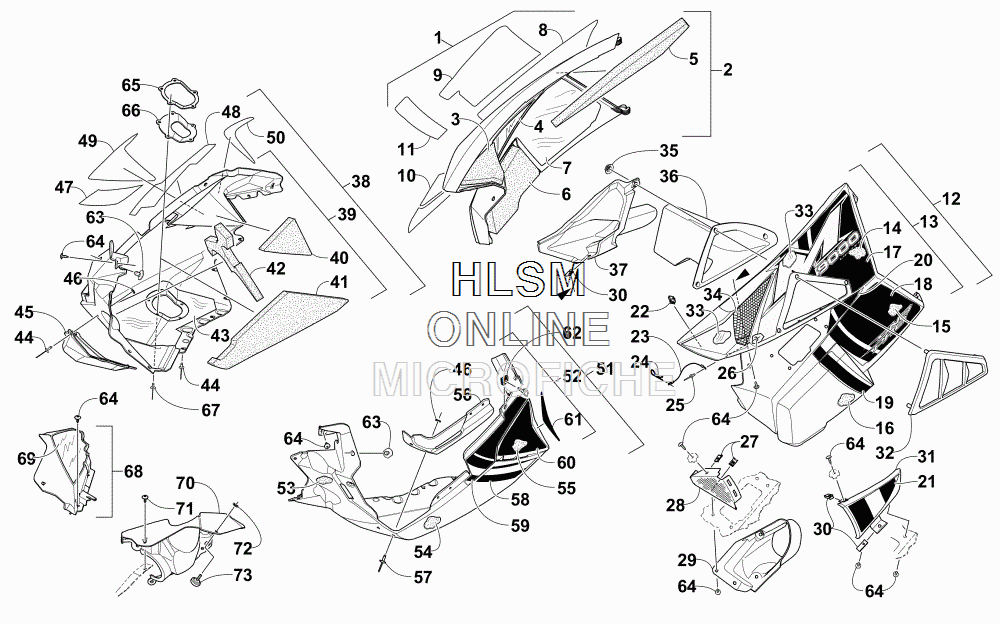

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat M 9000 SNO PRO LTD 162 (ORANGE) (EARLY BUILD) [S2015M9NLEUSO] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-480 PANEL, SIDE W/ DECALS - RIGHT - (WHITE) (INC. 2-11)
    PANEL, SIDE W/ DECALS - RIGHT - (WHITE) (INC. 2-11)
  • 2
    3718-766 ...PANEL, SIDE W/O DECALS - RIGHT - (WHITE) ((UP TO SERIAL #100445)) (INC. 3-7)
    ...PANEL, SIDE W/O DECALS - RIGHT - (WHITE) ((UP TO SERIAL #100445)) (INC. 3-7)
  • 2
    3718-454 ...PANEL, SIDE W/O DECALS - RIGHT - (WHITE) ((ABOVE SERIAL #100445)) (INC. 3-7)
    ...PANEL, SIDE W/O DECALS - RIGHT - (WHITE) ((ABOVE SERIAL #100445)) (INC. 3-7)
  • 3
    0617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
    ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
  • 4
    6606-414 ......FOIL, PROTECTIVE
    ......FOIL, PROTECTIVE
  • 5
    0617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT
    ......FOAM, SIDE PANEL - UPPER REAR - RIGHT
  • 6
    0617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
    ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
  • 7
    6606-416 ......FOIL, PROTECTIVE
    ......FOIL, PROTECTIVE
  • 8
    1621-620 ...DECAL, SIDE PANEL - UPPER - RIGHT
    ...DECAL, SIDE PANEL - UPPER - RIGHT
  • 9
    1621-624 ...DECAL, SIDE PANEL - LOWER REAR - RIGHT
    ...DECAL, SIDE PANEL - LOWER REAR - RIGHT
  • 10
    1621-622 ...DECAL, SIDE PANEL - CENTER - RIGHT
    ...DECAL, SIDE PANEL - CENTER - RIGHT
  • 11
    1621-626 ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT
    ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT
  • 12
    4718-481 PANEL, SIDE W/ DECALS - LEFT - (WHITE) (INC. 13-20)
    PANEL, SIDE W/ DECALS - LEFT - (WHITE) (INC. 13-20)
  • 13
    4718-115 ...PANEL, SIDE W/O DECALS - LEFT - (WHITE) ((UP TO SERIAL #100445)) (INC. 14-16)
    ...PANEL, SIDE W/O DECALS - LEFT - (WHITE) ((UP TO SERIAL #100445)) (INC. 14-16)
  • 13
    4718-559 ...PANEL, SIDE W/O DECALS - LEFT - (WHITE) ((ABOVE SERIAL #100445)) (INC. 14-16)
    ...PANEL, SIDE W/O DECALS - LEFT - (WHITE) ((ABOVE SERIAL #100445)) (INC. 14-16)
  • 14
    0617-669 ......FOAM, SIDE PANEL - UPPER REAR - LEFT
    ......FOAM, SIDE PANEL - UPPER REAR - LEFT
  • 15
    0617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT
    ......FOAM, SIDE PANEL - LOWER REAR - LEFT
  • 16
    0617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT
    ......FOAM, SIDE PANEL - LOWER FRONT - LEFT
  • 17
    1621-621 ...DECAL, SIDE PANEL - UPPER - LEFT
    ...DECAL, SIDE PANEL - UPPER - LEFT
  • 18
    1621-625 ...DECAL, SIDE PANEL - LOWER REAR - LEFT
    ...DECAL, SIDE PANEL - LOWER REAR - LEFT
  • 19
    1621-627 ...DECAL, SIDE PANEL - LOWER FRONT - LEFT
    ...DECAL, SIDE PANEL - LOWER FRONT - LEFT
  • 20
    2621-295 ...DECAL, SIDE PANEL - CENTER - LEFT
    ...DECAL, SIDE PANEL - CENTER - LEFT
  • 21
    2621-293 DECAL, SIDE PANEL - CENTER VENT - LEFT
    DECAL, SIDE PANEL - CENTER VENT - LEFT
  • 22
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 23
    0607-447 CABLE,5"-HAIRPIN
    CABLE,5"-HAIRPIN
  • 24
    0605-283 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 25
    8060-486 RIVET, BLIND-DH SS54 ZINC
    RIVET, BLIND-DH SS54 ZINC
  • 26
    8050-127 WASHER,FLAT- #8 X .375 X .049 Z & Y
    WASHER,FLAT- #8 X .375 X .049 Z & Y
  • 27
    1623-052 CLIP, U-NUT
    CLIP, U-NUT
  • 28
    6606-925 SCREEN, INTAKE
    SCREEN, INTAKE
  • 29
    2602-794 DUCT, INTAKE - INNER
    DUCT, INTAKE - INNER
  • 30
    1623-030 CLIP, U-NUT
    CLIP, U-NUT
  • 31
    2602-803 DUCT, INTAKE - OUTER - (WHITE)
    DUCT, INTAKE - OUTER - (WHITE)
  • 32
    0608-648 VENT, HEAT DUCT
    VENT, HEAT DUCT
  • 33
    0619-206 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 34
    5706-531 SCREEN, INTAKE
    SCREEN, INTAKE
  • 35
    1623-469 NUT, STAMPED
    NUT, STAMPED
  • 36
    0708-596 DUCT, HEAT
    DUCT, HEAT
  • 37
    1702-367 DUCT, AIR - CLUTCH
    DUCT, AIR - CLUTCH
  • 38
    4718-188 PLATE, SKID W/DECALS - RIGHT - (WHITE) (INC. 39-50)
    PLATE, SKID W/DECALS - RIGHT - (WHITE) (INC. 39-50)
  • 39
    3718-746 ...PLATE, SKID W/O DECALS - RIGHT - (WHITE) ((UP TO SERIAL #100445)) (INC. 40-46)
    ...PLATE, SKID W/O DECALS - RIGHT - (WHITE) ((UP TO SERIAL #100445)) (INC. 40-46)
  • 39
    4718-532 ...PLATE, SKID W/O DECALS - RIGHT - (WHITE) ((ABOVE SERIAL #100445)) (INC. 40-46)
    ...PLATE, SKID W/O DECALS - RIGHT - (WHITE) ((ABOVE SERIAL #100445)) (INC. 40-46)
  • 40
    0617-640 ......FOAM, SKID PLATE - UPPER REAR - RIGHT
    ......FOAM, SKID PLATE - UPPER REAR - RIGHT
  • 41
    0617-638 ......FOAM, SKID PLATE - CENTER FRONT - RIGHT
    ......FOAM, SKID PLATE - CENTER FRONT - RIGHT
  • 42
    0617-636 ......FOAM, SKID PLATE - UPPER FRONT - RIGHT
    ......FOAM, SKID PLATE - UPPER FRONT - RIGHT
  • 43
    2612-850 ......FOIL, PROTECTIVE
    ......FOIL, PROTECTIVE
  • 44
    8061-708 ......RIVET, BLIND-LF SS66 (BLACK)
    ......RIVET, BLIND-LF SS66 (BLACK)
  • 45
    2612-754 ......DEFLECTOR, HEAT
    ......DEFLECTOR, HEAT
  • 46
    0123-802 ......WASHER,FLAT .194X.50X.048
    ......WASHER,FLAT .194X.50X.048
  • 47
    1621-630 ...DECAL, SKID PLATE - FRONT - RIGHT
    ...DECAL, SKID PLATE - FRONT - RIGHT
  • 48
    1621-628 ...DECAL, SKID PLATE - UPPER - RIGHT
    ...DECAL, SKID PLATE - UPPER - RIGHT
  • 49
    1621-680 ...DECAL, SKID PLATE - LOWER - RIGHT
    ...DECAL, SKID PLATE - LOWER - RIGHT
  • 50
    1621-682 ...DECAL, SKID PLATE - REAR - RIGHT
    ...DECAL, SKID PLATE - REAR - RIGHT
  • 51
    4718-189 PLATE, SKID W/DECALS - LEFT - (WHITE) (INC. 52-61)
    PLATE, SKID W/DECALS - LEFT - (WHITE) (INC. 52-61)
  • 52
    3718-769 PLATE, SKID W/O DECALS - LEFT - (WHITE) ((UP TO SERIAL #100445)) (INC. 53-57)
    PLATE, SKID W/O DECALS - LEFT - (WHITE) ((UP TO SERIAL #100445)) (INC. 53-57)
  • 52
    4718-533 ...PLATE, SKID W/O DECALS - LEFT - (WHITE) ((ABOVE SERIAL #100445)) (INC. 53-57)
    ...PLATE, SKID W/O DECALS - LEFT - (WHITE) ((ABOVE SERIAL #100445)) (INC. 53-57)
  • 53
    0617-637 ......FOAM, SKID PLATE - UPPER FRONT - LEFT
    ......FOAM, SKID PLATE - UPPER FRONT - LEFT
  • 54
    0617-639 ......FOAM, SKID PLATE - CENTER FRONT - LEFT
    ......FOAM, SKID PLATE - CENTER FRONT - LEFT
  • 55
    0617-641 ......FOAM, SKID PLATE - UPPER REAR - LEFT
    ......FOAM, SKID PLATE - UPPER REAR - LEFT
  • 56
    6606-613 ......PANEL, REINFORCEMENT
    ......PANEL, REINFORCEMENT
  • 57
    8061-688 ......RIVET,BLIND-LF SS66 ZINC
    ......RIVET,BLIND-LF SS66 ZINC
  • 58
    1621-631 ...DECAL, SKID PLATE - FRONT - LEFT
    ...DECAL, SKID PLATE - FRONT - LEFT
  • 59
    1621-629 ...DECAL, SKID PLATE - UPPER - LEFT
    ...DECAL, SKID PLATE - UPPER - LEFT
  • 60
    1621-681 ...DECAL, SKID PLATE - LOWER - LEFT
    ...DECAL, SKID PLATE - LOWER - LEFT
  • 61
    1621-683 ...DECAL, SKID PLATE - REAR - LEFT
    ...DECAL, SKID PLATE - REAR - LEFT
  • 62
    2623-005 CLIP,RECEPTACLE-1/4 TURN STUD
    CLIP,RECEPTACLE-1/4 TURN STUD
  • 63
    6606-592 PIN,RETAINER-BODY PLASTIC
    PIN,RETAINER-BODY PLASTIC
  • 64
    1623-129 SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
    SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
  • 65
    2612-796 PLATE, EXHAUST OUTLET
    PLATE, EXHAUST OUTLET
  • 66
    2612-799 SEAL, EXHAUST OUTLET
    SEAL, EXHAUST OUTLET
  • 67
    8061-710 RIVET, BLIND - LARGE FLANGE - SS68 - (BLACK)
    RIVET, BLIND - LARGE FLANGE - SS68 - (BLACK)
  • 68
    3718-302 FASCIA, FRONT RIGHT - (BLACK) (INC. 69)
    FASCIA, FRONT RIGHT - (BLACK) (INC. 69)
  • 69
    6606-404 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 70
    6606-351 FASCIA, FRONT LEFT - (BLACK)
    FASCIA, FRONT LEFT - (BLACK)
  • 71
    0623-784 SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)
    SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)
  • 72
    2623-001 NUT, PUSH
    NUT, PUSH
  • 73
    1623-999 SCREW, THUMB
    SCREW, THUMB
