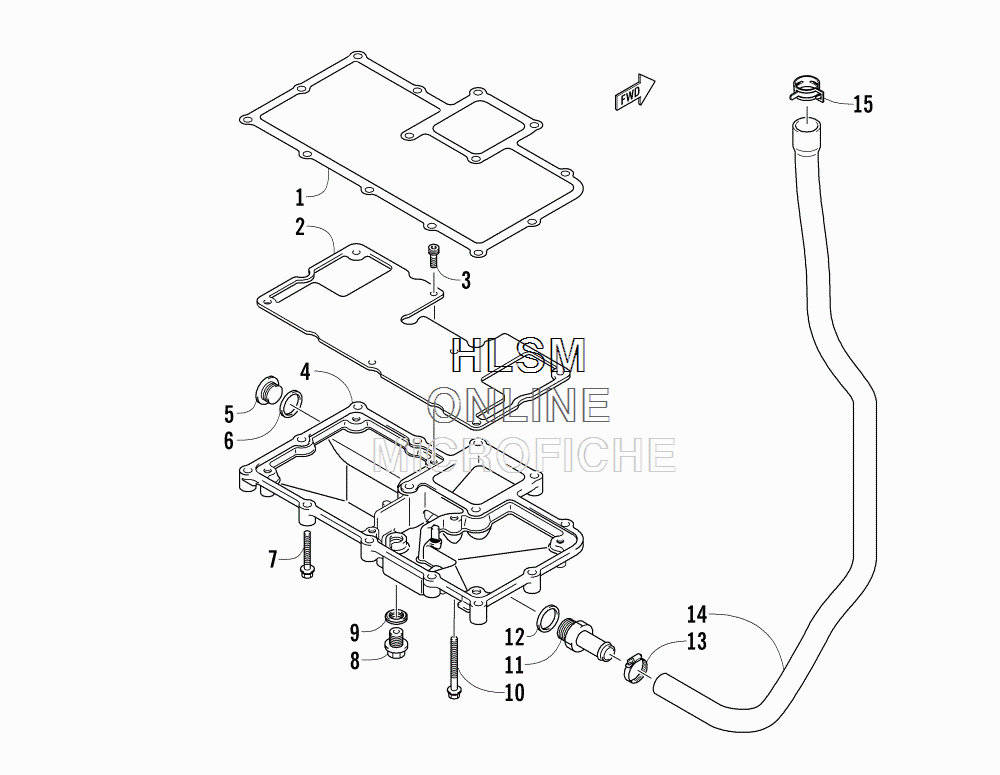

OIL PAN ASSEMBLY для Arctic Cat M 9000 SNO PRO LTD 162 (ORANGE) (EARLY BUILD) [S2015M9NLEUSO] - 2015 года выпуска
-
№АртикулНазвание
-
13007-099 GASKET, OIL PANGASKET, OIL PAN
-
23007-102 PLATE, OIL PANPLATE, OIL PAN
-
33007-092 BOLT,OIL SEP PLATE (6X12)BOLT,OIL SEP PLATE (6X12)
-
43007-100 PAN, OILPAN, OIL
-
53007-501 PLUG, DRAINPLUG, DRAIN
-
63402-556 GASKET, OIL LAMP SWITCHGASKET, OIL LAMP SWITCH
-
73007-504 BOLT,OIL PANBOLT,OIL PAN
-
83007-101 PLUG,OIL DRAIN (12X16)PLUG,OIL DRAIN (12X16)
-
93402-011 GASKET,OIL DRAIN PLUG- M12.1X16.2X3.7GASKET,OIL DRAIN PLUG- M12.1X16.2X3.7
-
103007-505 BOLT,OIL PANBOLT,OIL PAN
-
113007-093 FITTING UNION,WATER BYPASS HOSEFITTING UNION,WATER BYPASS HOSE
-
123402-013 GASKET, M16X22X2GASKET, M16X22X2
-
133007-856 CLAMP,BREATHER HOSECLAMP,BREATHER HOSE
-
143007-507 HOSE,BREATHER TANK OIL RETURNHOSE,BREATHER TANK OIL RETURN
-
151623-285 CLAMP,HOSE-SPRING (12W X 22)CLAMP,HOSE-SPRING (12W X 22)
