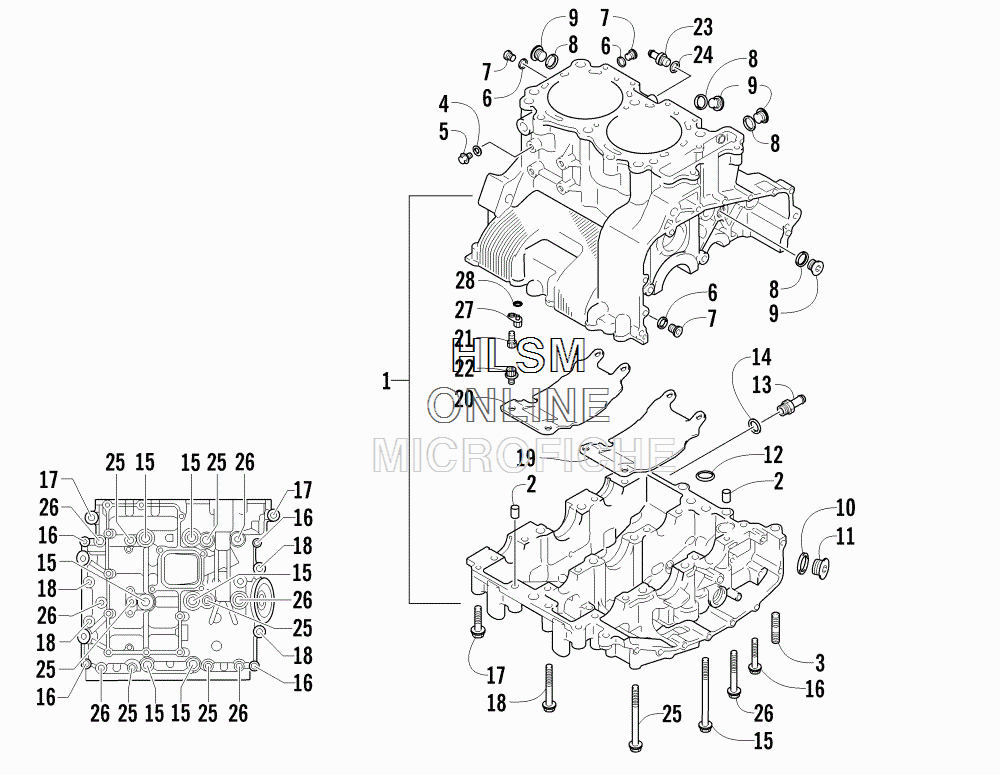

CRANKCASE ASSEMBLY для Arctic Cat M 9000 SNO PRO LTD 162 (ORANGE) (EARLY BUILD) [S2015M9NLEUSO] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3007-897 CRANKCASE ASSEMBLY (INC. 2)
    CRANKCASE ASSEMBLY (INC. 2)
  • 2
    3004-822 ...PIN,DOWEL (ALIGNMENT)
    ...PIN,DOWEL (ALIGNMENT)
  • 3
    3007-498 BOLT,ENGINE MOUNT STUD(L:25)
    BOLT,ENGINE MOUNT STUD(L:25)
  • 4
    3402-444 GASKET
    GASKET
  • 5
    3007-407 BOLT,GROUND
    BOLT,GROUND
  • 6
    3007-083 GASKET, OIL PLUG
    GASKET, OIL PLUG
  • 7
    3423-452 PLUG, OIL
    PLUG, OIL
  • 8
    3402-556 GASKET, OIL LAMP SWITCH
    GASKET, OIL LAMP SWITCH
  • 9
    3007-501 PLUG, DRAIN
    PLUG, DRAIN
  • 10
    3403-106 GASKET,IDLER SHAFT
    GASKET,IDLER SHAFT
  • 11
    3007-085 PLUG, OIL
    PLUG, OIL
  • 12
    3007-086 O-RING, CRANKCASE
    O-RING, CRANKCASE
  • 13
    3007-093 FITTING
    FITTING
  • 14
    3402-013 GASKET, M16X22X2
    GASKET, M16X22X2
  • 15
    3007-681 BOLT,CRANKCASE (10X105)
    BOLT,CRANKCASE (10X105)
  • 16
    3007-411 BOLT
    BOLT
  • 17
    3007-401 SCREW, CAP
    SCREW, CAP
  • 18
    3007-408 BOLT
    BOLT
  • 19
    3007-090 PLATE, OIL SEPARATOR - RIGHT
    PLATE, OIL SEPARATOR - RIGHT
  • 20
    3007-091 PLATE, OIL SEPARATOR - LEFT
    PLATE, OIL SEPARATOR - LEFT
  • 21
    3007-092 SCREW, CAP
    SCREW, CAP
  • 22
    3007-855 SCREW, CAP
    SCREW, CAP
  • 23
    3007-093 FITTING
    FITTING
  • 24
    3402-013 GASKET, M16X22X2
    GASKET, M16X22X2
  • 25
    3007-087 BOLT,CRANKCASE (8X90)
    BOLT,CRANKCASE (8X90)
  • 26
    3007-088 BOLT,CRANKCASE (8X70)
    BOLT,CRANKCASE (8X70)
  • 27
    3007-094 JET, PISTON COOLING
    JET, PISTON COOLING
  • 28
    3423-051 O-RING
    O-RING
