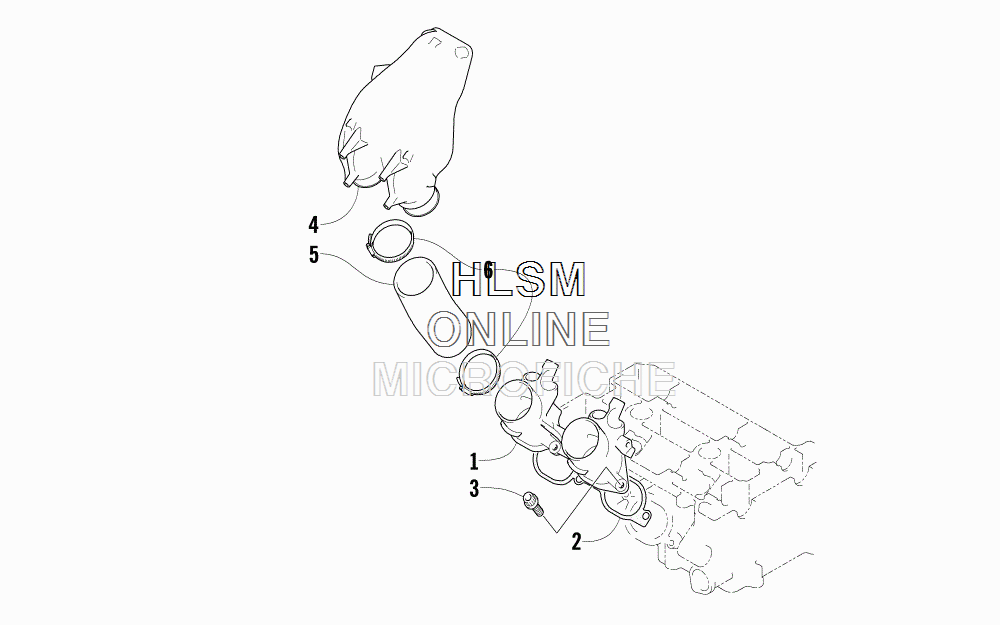

INTAKE MANIFOLD/FLANGE ASSEMBLY для Arctic Cat M 9000 SNO PRO LTD 162 (ORANGE) (EARLY BUILD) [S2015M9NLEUSO] - 2015 года выпуска
-
№АртикулНазвание
-
13007-785 PIPE ASSEMBLY FLANGE, INTAKEPIPE ASSEMBLY FLANGE, INTAKE
-
23007-786 GASKET,INTAKE PIPEGASKET,INTAKE PIPE
-
33007-446 BOLT,THERMOSTAT CAPBOLT,THERMOSTAT CAP
-
43007-787 MANIFOLD, INTAKE TANK,SURGEMANIFOLD, INTAKE TANK,SURGE
-
53007-788 HOSE,INTAKE PIPEHOSE,INTAKE PIPE
-
63007-789 CLAMP,INTAKE PIPE HOSECLAMP,INTAKE PIPE HOSE
