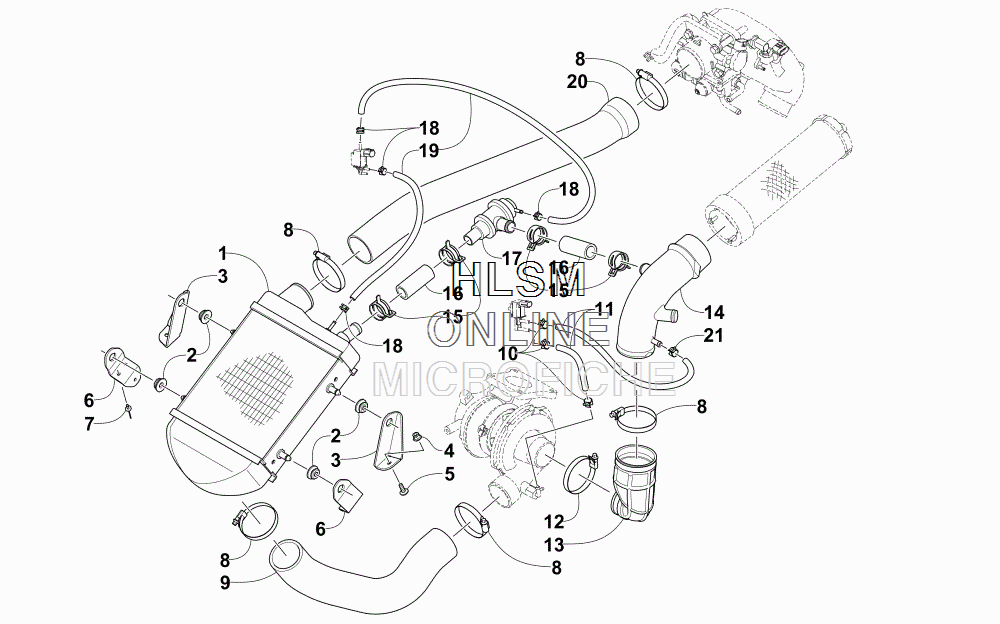

INTERCOOLER ASSEMBLY для Arctic Cat M 9000 SNO PRO LTD 162 (ORANGE) (EARLY BUILD) [S2015M9NLEUSO] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    2670-171 INTERCOOLER-TURBO
    INTERCOOLER-TURBO
  • 2
    0423-678 GROMMET,PANEL-SIDE
    GROMMET,PANEL-SIDE
  • 3
    2670-172 BRACKET, MOUNTING - REAR RIGHT
    BRACKET, MOUNTING - REAR RIGHT
  • 3
    2670-173 BRACKET, MOUNTING - REAR LEFT
    BRACKET, MOUNTING - REAR LEFT
  • 4
    8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
  • 5
    8477-616 SCREW,MACH-TSTRH M6X1.0X16 Z & (BLACK)
    SCREW,MACH-TSTRH M6X1.0X16 Z & (BLACK)
  • 6
    2670-199 BRACKET, MOUNTING - FRONT
    BRACKET, MOUNTING - FRONT
  • 7
    8061-708 RIVET, BLIND-LF SS66 (BLACK)
    RIVET, BLIND-LF SS66 (BLACK)
  • 8
    0423-019 CLAMP,HOSE-WORM (NORMA 50-70)
    CLAMP,HOSE-WORM (NORMA 50-70)
  • 9
    0610-848 HOSE,INTERCOOLER INLET
    HOSE,INTERCOOLER INLET
  • 10
    1623-966 CLAMP,HOSE - #CTL-8
    CLAMP,HOSE - #CTL-8
  • 11
    0610-513 HOSE,GASLINE-25
    HOSE,GASLINE-25
  • 12
    0423-066 CLAMP,HOSE-WORM 50MMX9MM (40-60 NORMA)
    CLAMP,HOSE-WORM 50MMX9MM (40-60 NORMA)
  • 13
    2670-198 BOOT,TURBO-COMPRESSOR INLET
    BOOT,TURBO-COMPRESSOR INLET
  • 14
    2670-167 DUCT, AIR INTAKE, TURBO
    DUCT, AIR INTAKE, TURBO
  • 15
    1623-292 CLAMP,HOSE-SPRING (12W X 29)
    CLAMP,HOSE-SPRING (12W X 29)
  • 16
    0610-837 HOSE,ABV INLET
    HOSE,ABV INLET
  • 17
    3007-820 VALVE, AIR BYPASS
    VALVE, AIR BYPASS
  • 18
    1623-042 CLAMP, 10MM
    CLAMP, 10MM
  • 19
    0610-538 HOSE, VENT - 25 (1054-152)
    HOSE, VENT - 25 (1054-152)
  • 20
    0610-847 HOSE,INTERCOOLER OUTLET
    HOSE,INTERCOOLER OUTLET
  • 21
    1623-197 CLAMP, HOSE-SPRING-14MM
    CLAMP, HOSE-SPRING-14MM
