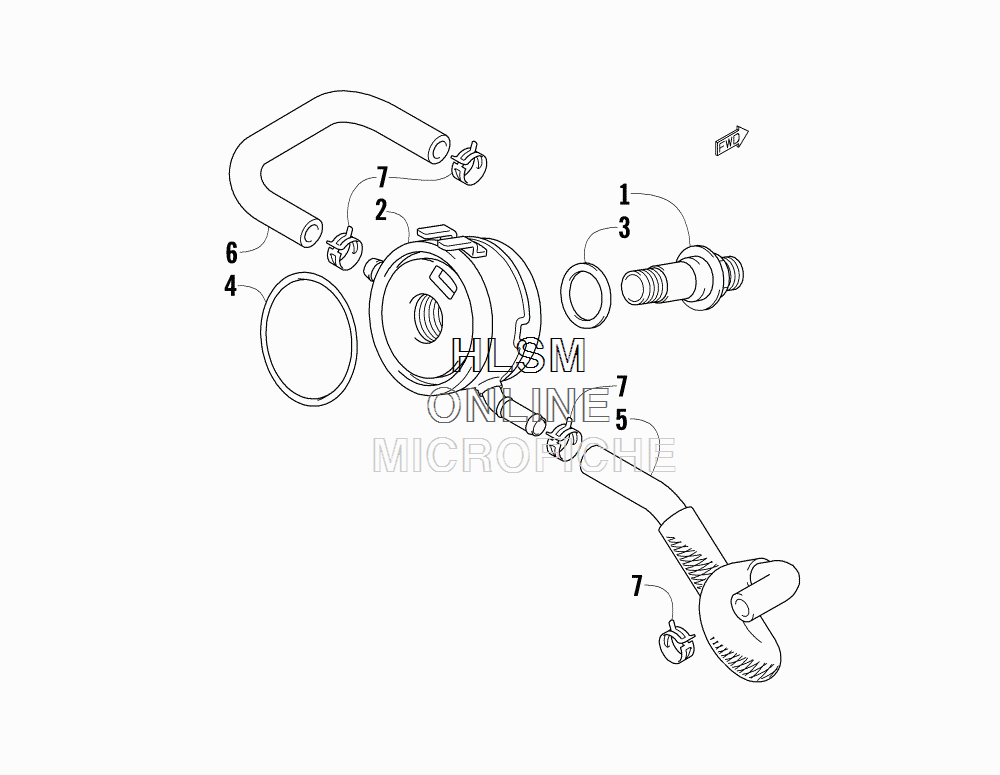

OIL COOLER ASSEMBLY для Arctic Cat M 9000 SNO PRO LTD 162 (ORANGE) (EARLY BUILD) [S2015M9NLEUSO] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3007-173 BOLT,OIL COOLER UNION
    BOLT,OIL COOLER UNION
  • 2
    3007-174 COOLER ASSEMBLY,OIL
    COOLER ASSEMBLY,OIL
  • 3
    3007-175 WASHER,OIL COOLER UNION (25X34X0.7)
    WASHER,OIL COOLER UNION (25X34X0.7)
  • 4
    3007-176 O RING,OIL COOLER(ID:63.9,DD:3.1)
    O RING,OIL COOLER(ID:63.9,DD:3.1)
  • 5
    3007-177 HOSE,OIL COOLER WATER INLET
    HOSE,OIL COOLER WATER INLET
  • 6
    3007-821 HOSE,OIL COOLER WATER OUTLET
    HOSE,OIL COOLER WATER OUTLET
  • 7
    3423-424 CLAMP, HOSE
    CLAMP, HOSE
