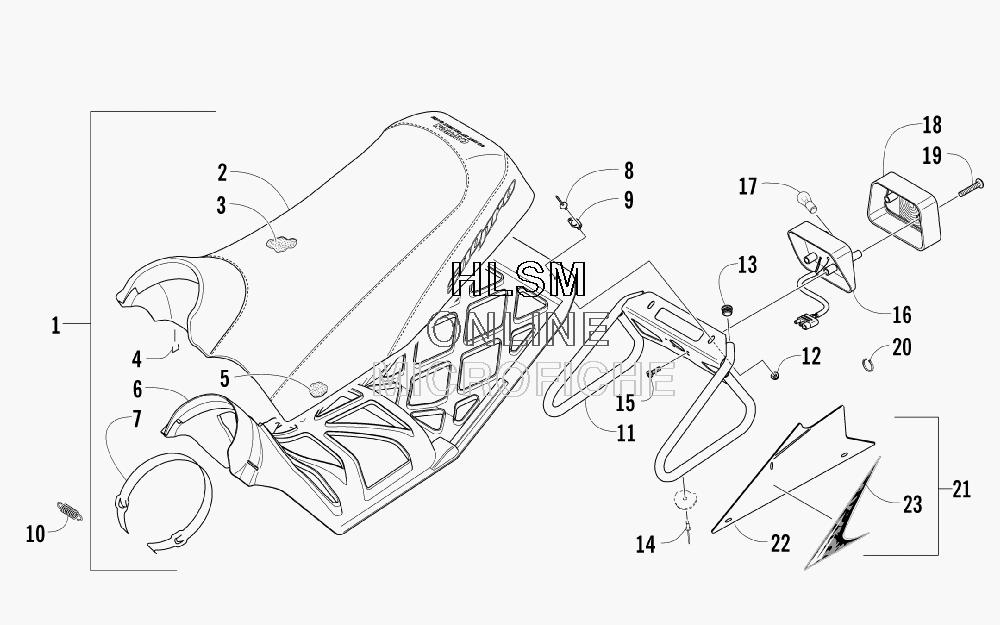

SEAT ASSEMBLY для Arctic Cat AC 600 MODIFIED SNO PRO (GREEN) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    7998-433 COMPLETE SEAT ASSEMBLY (INC. 2-9)
    COMPLETE SEAT ASSEMBLY (INC. 2-9)
  • 2
    2706-844 ...COVER, SEAT
    ...COVER, SEAT
  • 3
    0717-194 ...FOAM, SEAT - UPPER
    ...FOAM, SEAT - UPPER
  • 4
    0624-528 ...STAPLE
    ...STAPLE
  • 5
    0617-461 ...FOAM, SEAT - LOWER
    ...FOAM, SEAT - LOWER
  • 6
    3606-452 ...BASE, SEAT
    ...BASE, SEAT
  • 7
    2706-768 ...STRAP, HOLD-DOWN - SEAT
    ...STRAP, HOLD-DOWN - SEAT
  • 8
    8061-508 ...RIVET
    ...RIVET
  • 9
    0716-858 ...HOLD-DOWN, SEAT
    ...HOLD-DOWN, SEAT
  • 10
    3606-549 SPRING, SEAT HOLD-DOWN STRAP
    SPRING, SEAT HOLD-DOWN STRAP
  • 11
    2706-885 SUBFRAME, SEAT
    SUBFRAME, SEAT
  • 12
    8047-366 NUT, LOCK
    NUT, LOCK
  • 13
    0606-654 PLUG, HOLE
    PLUG, HOLE
  • 14
    8060-686 RIVET
    RIVET
  • 15
    1623-251 SCREW, PLASTITE
    SCREW, PLASTITE
  • 16
    0609-664 TAILLIGHT W/SOCKET - ASSEMBLY
    TAILLIGHT W/SOCKET - ASSEMBLY
  • 17
    0109-460 BULB, TAILLIGHT
    BULB, TAILLIGHT
  • 18
    0609-665 LENS, TAILLIGHT
    LENS, TAILLIGHT
  • 19
    0609-666 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 20
    0123-788 CABLE TIE
    CABLE TIE
  • 21
    2718-072 PLATE, NUMBER W/DECALS (INC. 22-23)
    PLATE, NUMBER W/DECALS (INC. 22-23)
  • 22
    3706-128 ...KIT, NUMBER PLATE
    ...KIT, NUMBER PLATE
  • 23
    7611-914 ...DECAL, NUMBER PLATE - RIGHT
    ...DECAL, NUMBER PLATE - RIGHT
  • 23
    7611-915 ...DECAL, NUMBER PLATE - LEFT
    ...DECAL, NUMBER PLATE - LEFT
