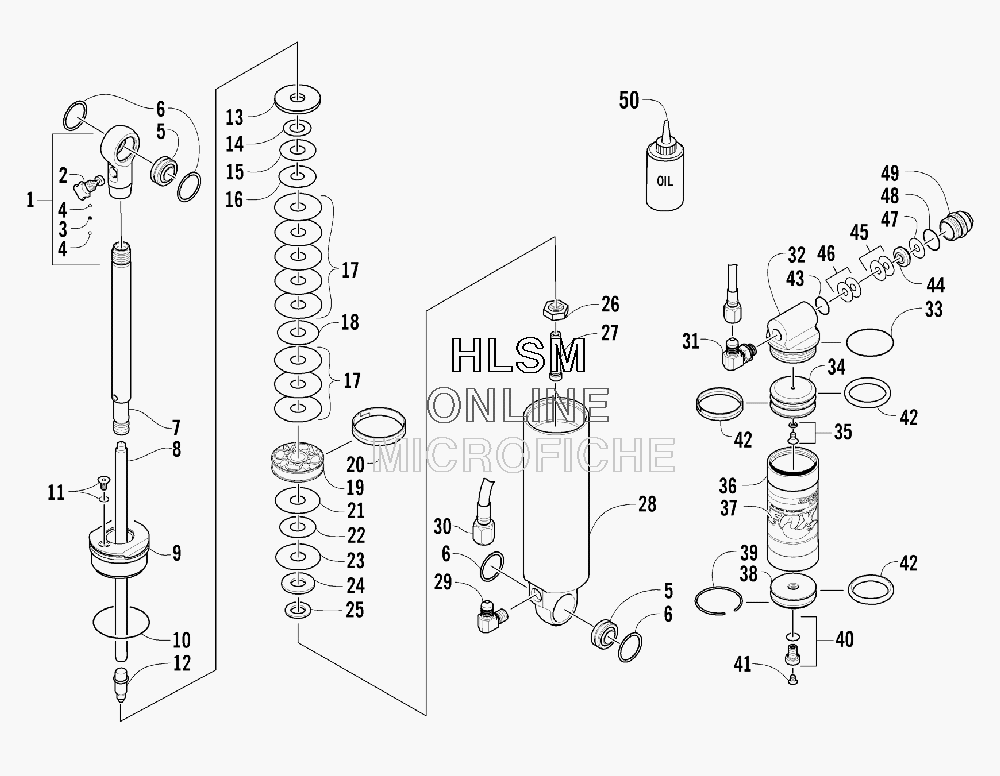

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat AC 600 MODIFIED SNO PRO (GREEN) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1704-586 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • 3604-162 SHOCK ABSORBER REBUILD KIT
    SHOCK ABSORBER REBUILD KIT
  • 3604-177 RESERVOIR REBUILD KIT
    RESERVOIR REBUILD KIT
  • 1
    2604-961 EYELET, SHOCK - ASSEMBLY (INC. 2-4)
    EYELET, SHOCK - ASSEMBLY (INC. 2-4)
  • 2
    2604-958 ...KNOB, DAMPING ADJUSTER
    ...KNOB, DAMPING ADJUSTER
  • 3
    2604-960 ...SPRING
    ...SPRING
  • 4
    1604-315 ...BALL, ADJUSTER
    ...BALL, ADJUSTER
  • 5
    1604-664 BEARING, SHOCK EYELET
    BEARING, SHOCK EYELET
  • 6
    3604-147 RING, RETAINING
    RING, RETAINING
  • 7
    2604-955 SHAFT, SHOCK
    SHAFT, SHOCK
  • 8
    2604-954 ROD, DAMPING ADJUSTER - ASSEMBLY
    ROD, DAMPING ADJUSTER - ASSEMBLY
  • 9
    2604-956 BEARING - ASSEMBLY (INC. 10)*
    BEARING - ASSEMBLY (INC. 10)*
  • 10
    0603-671 ...O-RING*
    ...O-RING*
  • 11
    2604-530 SCREW W/O-RING*
    SCREW W/O-RING*
  • 12
    2604-953 NEEDLE, DAMPING W/O-RING
    NEEDLE, DAMPING W/O-RING
  • 13
    2604-449 WASHER, TOP OUT
    WASHER, TOP OUT
  • 14
    2604-478 VALVE, SHOCK 0.950 X 0.006 IN.
    VALVE, SHOCK 0.950 X 0.006 IN.
  • 15
    2604-484 VALVE, SHOCK 1.100 X 0.006 IN.
    VALVE, SHOCK 1.100 X 0.006 IN.
  • 16
    2604-684 VALVE, SHOCK 1.250 X 0.006 IN.
    VALVE, SHOCK 1.250 X 0.006 IN.
  • 17
    2604-503 VALVE, SHOCK 1.600 X 0.012 IN.
    VALVE, SHOCK 1.600 X 0.012 IN.
  • 18
    2604-490 VALVE, SHOCK 1.350 X 0.006 IN.
    VALVE, SHOCK 1.350 X 0.006 IN.
  • 19
    2604-673 PISTON, DAMPING
    PISTON, DAMPING
  • 20
    2604-628 STRAP, PISTON - TEFLON*
    STRAP, PISTON - TEFLON*
  • 21
    2604-497 VALVE, SHOCK 1.425 X 0.010 IN.
    VALVE, SHOCK 1.425 X 0.010 IN.
  • 22
    3604-149 VALVE, SHOCK 1.100 X 0.004 IN.
    VALVE, SHOCK 1.100 X 0.004 IN.
  • 23
    2604-499 VALVE, SHOCK 1.425 X 0.015 IN.
    VALVE, SHOCK 1.425 X 0.015 IN.
  • 24
    3604-159 PLATE, TOP OUT
    PLATE, TOP OUT
  • 25
    3604-184 WASHER, BACKUP
    WASHER, BACKUP
  • 26
    2604-448 NUT
    NUT
  • 27
    2604-674 JET, DAMPING ADJUSTER
    JET, DAMPING ADJUSTER
  • 28
    2604-957 BODY, SHOCK
    BODY, SHOCK
  • 29
    2604-950 FITTING, ELBOW
    FITTING, ELBOW
  • 30
    2604-967 HOSE, SWIVEL
    HOSE, SWIVEL
  • 31
    2604-943 FITTING, ELBOW W/O-RING
    FITTING, ELBOW W/O-RING
  • 32
    2603-528 HOUSING, DAMPING ADJUSTER
    HOUSING, DAMPING ADJUSTER
  • 33
    2603-504 O-RING
    O-RING
  • 34
    2604-969 PISTON, INTERNAL FLOATING - ASSEMBLY
    PISTON, INTERNAL FLOATING - ASSEMBLY
  • 35
    1604-316 SCREW, RELIEF W/O-RING**
    SCREW, RELIEF W/O-RING**
  • 36
    2603-515 RESERVOIR
    RESERVOIR
  • 37
    3604-160 DECAL, SHOCK - RESERVOIR
    DECAL, SHOCK - RESERVOIR
  • 38
    2603-525 END CAP, SHOCK - ASSEMBLY
    END CAP, SHOCK - ASSEMBLY
  • 39
    0604-992 RING, RETAINING
    RING, RETAINING
  • 40
    0703-341 VALVE, PRESSURE W/O-RING
    VALVE, PRESSURE W/O-RING
  • 41
    0624-097 SCREW, MACHINE
    SCREW, MACHINE
  • 42
    3604-177 KIT, REBUILD - RESERVOIR
    KIT, REBUILD - RESERVOIR
  • 43
    3604-164 O-RING**
    O-RING**
  • 44
    3604-187 PISTON, CONCENTRIC - DAMPING ADJUSTER (INC. 45-47)
    PISTON, CONCENTRIC - DAMPING ADJUSTER (INC. 45-47)
  • 45
    2603-501 ...VALVE, SHOCK 0.700 X 0.010 IN.
    ...VALVE, SHOCK 0.700 X 0.010 IN.
  • 46
    3604-165 ...PLATE, BACKUP
    ...PLATE, BACKUP
  • 47
    0603-331 ...VALVE, SHOCK 0.700 X 0.008 IN.
    ...VALVE, SHOCK 0.700 X 0.008 IN.
  • 48
    2603-502 O-RING**
    O-RING**
  • 49
    2603-527 CARTRIDGE, DAMPING ADJUSTER
    CARTRIDGE, DAMPING ADJUSTER
  • 50
    4639-345 OIL, GAS SHOCK - 1 QT
    OIL, GAS SHOCK - 1 QT
