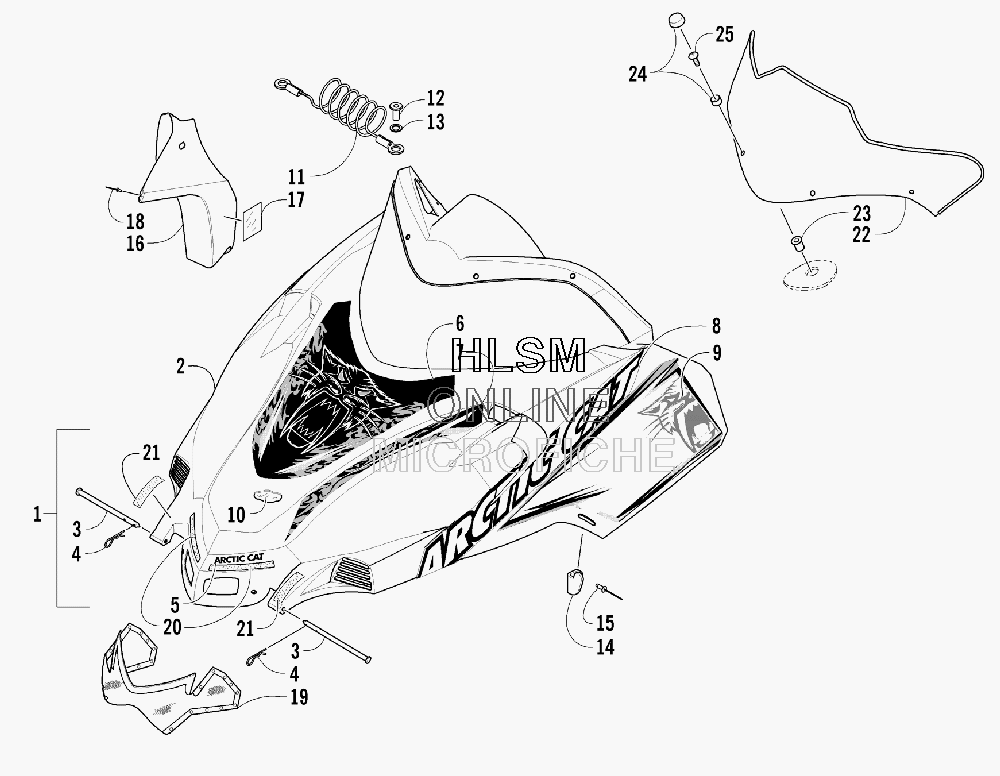

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat AC 600 MODIFIED SNO PRO (GREEN) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    2718-070 HOOD W/DECALS - GREEN (INC. 2-9)
    HOOD W/DECALS - GREEN (INC. 2-9)
  • 2
    2706-638 ...HOOD W/O DECALS - GREEN (INC. 3-4)
    ...HOOD W/O DECALS - GREEN (INC. 3-4)
  • 3
    1623-026 ......PIN, CLEVIS
    ......PIN, CLEVIS
  • 4
    0623-847 ......CLIP, HAIRPIN
    ......CLIP, HAIRPIN
  • 5
    3611-187 ...DECAL, HOOD - "ARCTIC CAT"
    ...DECAL, HOOD - "ARCTIC CAT"
  • 6
    7611-918 ...DECAL, HOOD - CREST
    ...DECAL, HOOD - CREST
  • 7
    7611-916 ...DECAL, COVER - CREST - RIGHT
    ...DECAL, COVER - CREST - RIGHT
  • 7
    7611-917 ...DECAL, COVER - CREST - LEFT
    ...DECAL, COVER - CREST - LEFT
  • 8
    7611-912 ...DECAL, HOOD - RIGHT - "ARCTIC CAT"
    ...DECAL, HOOD - RIGHT - "ARCTIC CAT"
  • 8
    7611-913 ...DECAL, HOOD - LEFT - "ARCTIC CAT"
    ...DECAL, HOOD - LEFT - "ARCTIC CAT"
  • 9
    7611-906 ...DECAL, HOOD - LOWER - RIGHT
    ...DECAL, HOOD - LOWER - RIGHT
  • 9
    7611-907 ...DECAL, HOOD - LOWER - LEFT
    ...DECAL, HOOD - LOWER - LEFT
  • 10
    0619-206 FOIL, PROTECTIVE - 6 IN. X 12 IN.
    FOIL, PROTECTIVE - 6 IN. X 12 IN.
  • 11
    2606-726 CABLE, HOOD
    CABLE, HOOD
  • 12
    8060-628 RIVET, BLIND
    RIVET, BLIND
  • 13
    8050-157 WASHER, FLAT
    WASHER, FLAT
  • 14
    2606-096 HOLD-DOWN, HOOD - RIGHT
    HOLD-DOWN, HOOD - RIGHT
  • 14
    1606-441 HOLD-DOWN, HOOD - LEFT
    HOLD-DOWN, HOOD - LEFT
  • 15
    8061-708 RIVET
    RIVET
  • 16
    3606-030 DUCT, BRAKE
    DUCT, BRAKE
  • 17
    2606-556 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 18
    0623-853 RIVET, BLIND
    RIVET, BLIND
  • 19
    3706-081 SCREEN, HOOD - ASSEMBLY
    SCREEN, HOOD - ASSEMBLY
  • 20
    2706-458 HOOK, VELCRO - 5/8 IN. X 10 FT
    HOOK, VELCRO - 5/8 IN. X 10 FT
  • 21
    6990-266 HOOK, VELCRO - 1 IN. X 10 FT
    HOOK, VELCRO - 1 IN. X 10 FT
  • 22
    3606-842 WINDSHIELD
    WINDSHIELD
  • 23
    0623-845 NUT, EXPANSION
    NUT, EXPANSION
  • 24
    0124-054 SNAP CAP W/WASHER
    SNAP CAP W/WASHER
  • 25
    0623-902 SCREW, MACHINE
    SCREW, MACHINE
