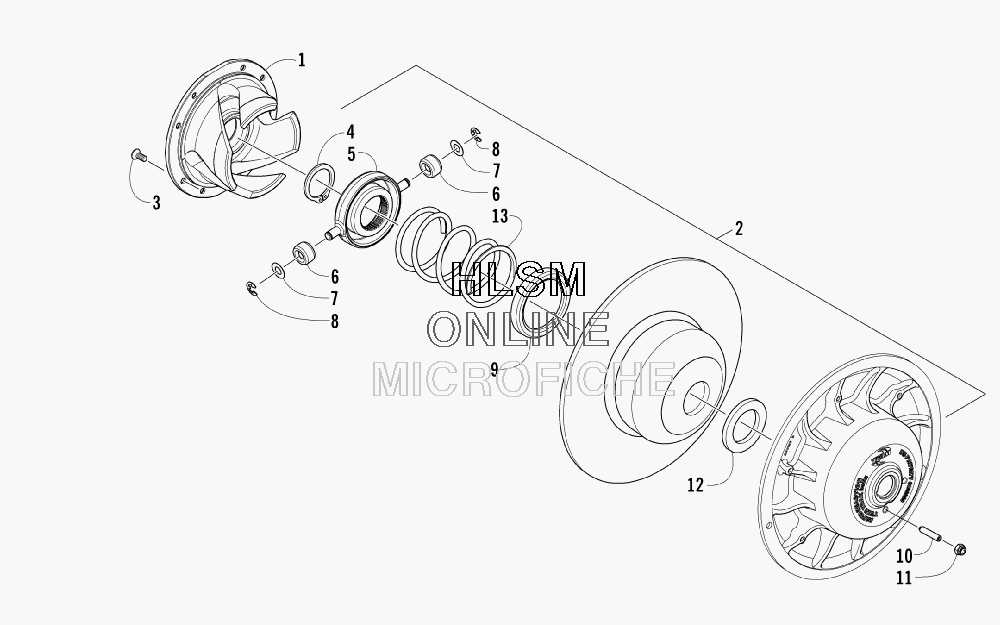

DRIVEN CLUTCH для Arctic Cat AC 600 MODIFIED SNO PRO (GREEN) - 2007 года выпуска
-
№АртикулНазвание
-
0726-272 CLUTCH,DRIVEN ASSEMBLY -TEAM-58-46-36/58CLUTCH,DRIVEN ASSEMBLY -TEAM-58-46-36/58
-
10648-779 CAM ASSEMBLY 58-46-36/58-48-36CAM ASSEMBLY 58-46-36/58-48-36
-
20726-273 DRIVEN CLUTCH, UNCALIBRATED (INC. 3-12)DRIVEN CLUTCH, UNCALIBRATED (INC. 3-12)
-
30648-748 ...SCREW, CAP...SCREW, CAP
-
40648-771 ...RING, RETAINING...RING, RETAINING
-
60648-699 ......ROLLER, CLUTCH......ROLLER, CLUTCH
-
70648-700 ......WASHER, THRUST......WASHER, THRUST
-
80648-701 ......RING, RETAINING......RING, RETAINING
-
90648-703 ...WASHER, THRUST...WASHER, THRUST
-
100648-707 ...SCREW, SET...SCREW, SET
-
110648-777 ...NUT, LOCK...NUT, LOCK
-
120648-772 ...SPACER...SPACER
-
130648-749 SPRING, DRIVEN CLUTCH - BLACK/WHITESPRING, DRIVEN CLUTCH - BLACK/WHITE
