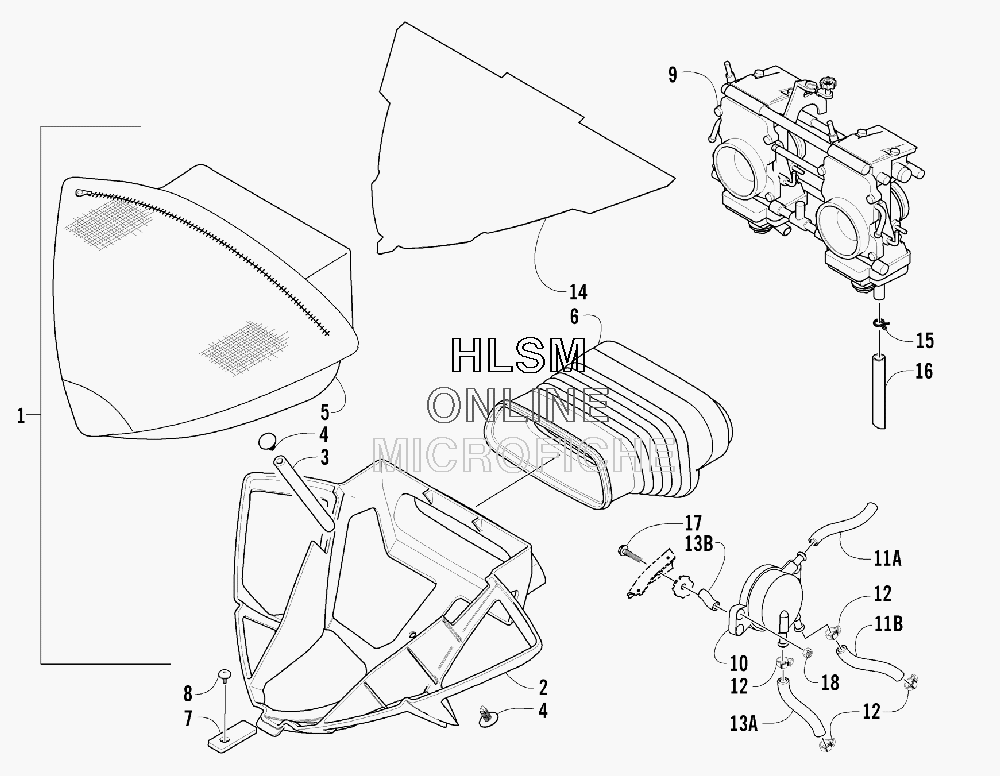

AIR SILENCER ASSEMBLY для Arctic Cat AC 600 MODIFIED SNO PRO (GREEN) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    0770-672 SILENCER, AIR - ASSEMBLY (INC. 2-5)
    SILENCER, AIR - ASSEMBLY (INC. 2-5)
  • 2
    0770-673 ...SILENCER, AIR
    ...SILENCER, AIR
  • 3
    1670-645 ...TUBE, SUPPORT
    ...TUBE, SUPPORT
  • 4
    0623-544 ...CLIP, RETAINING
    ...CLIP, RETAINING
  • 5
    1670-623 ...COVER, INTAKE SCREEN
    ...COVER, INTAKE SCREEN
  • 6
    0770-738 BOOT, AIR SILENCER - ASSEMBLY
    BOOT, AIR SILENCER - ASSEMBLY
  • 7
    3606-146 HOLD-DOWN, AIR SILENCER
    HOLD-DOWN, AIR SILENCER
  • 8
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 9
    1670-915 CARBURETOR, TM40-B367
    CARBURETOR, TM40-B367
  • 10
    1670-665 PUMP, FUEL
    PUMP, FUEL
  • 11
    0610-015 HOSE, GASLINE - 100 FT
    HOSE, GASLINE - 100 FT
  • 11
    0610-016 HOSE, GASLINE - 25 FT
    HOSE, GASLINE - 25 FT
  • 12
    0124-045 CLAMP, HOSE
    CLAMP, HOSE
  • 13
    0610-007 HOSE, IMPULSE - 25 FT
    HOSE, IMPULSE - 25 FT
  • 14
    4606-045 COVER, AIR SILENCER
    COVER, AIR SILENCER
  • 15
    0623-652 CLAMP, HOSE
    CLAMP, HOSE
  • 16
    0610-442 HOSE, DRAIN
    HOSE, DRAIN
  • 17
    0623-388 SCREW, CAP
    SCREW, CAP
  • 18
    8041-276 NUT, LOCK
    NUT, LOCK
