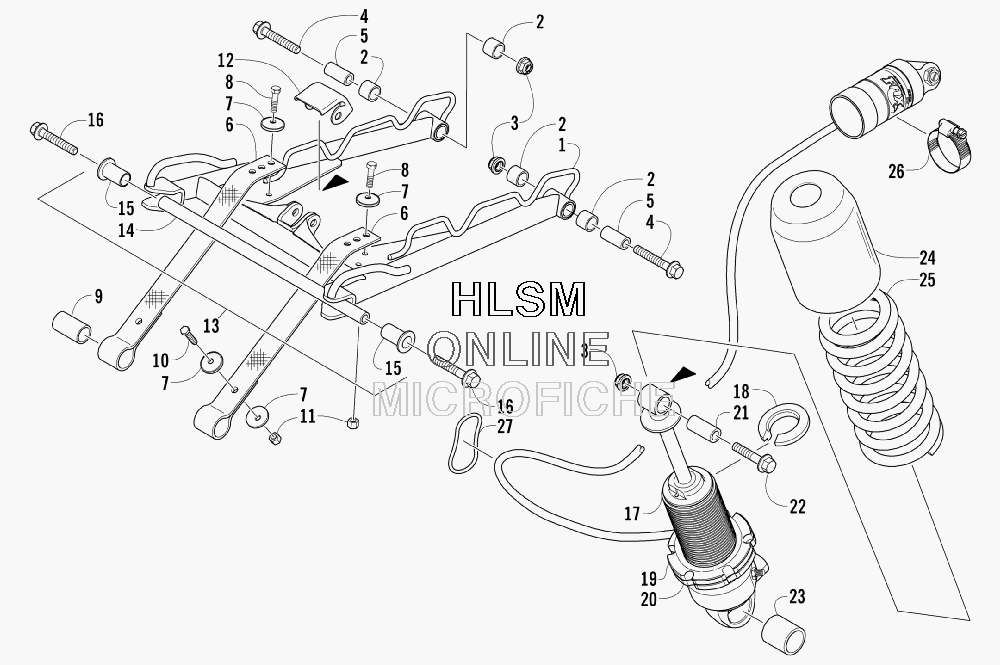

REAR SUSPENSION FRONT ARM ASSEMBLY для Arctic Cat AC 600 MODIFIED SNO PRO (GREEN) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    1704-365 ARM, FRONT SUSPENSION (INC. 2)
    ARM, FRONT SUSPENSION (INC. 2)
  • 2
    0604-889 ...BUSHING
    ...BUSHING
  • 3
    8047-486 NUT, LOCK
    NUT, LOCK
  • 4
    8020-228 SCREW, CAP
    SCREW, CAP
  • 5
    0104-629 SPACER, FRONT ARM
    SPACER, FRONT ARM
  • 6
    2604-934 STRAP, LIMITER
    STRAP, LIMITER
  • 7
    0623-875 WASHER
    WASHER
  • 8
    8002-041 SCREW, CAP
    SCREW, CAP
  • 9
    2604-962 SPACER
    SPACER
  • 10
    8002-043 SCREW, CAP
    SCREW, CAP
  • 11
    8040-366 NUT, LOCK
    NUT, LOCK
  • 12
    2604-112 GUIDE, FRONT ARM - CENTER
    GUIDE, FRONT ARM - CENTER
  • 13
    1704-607 AXLE, FRONT ARM (INC. 14-15)
    AXLE, FRONT ARM (INC. 14-15)
  • 14
    2604-932 ...AXLE, FRONT ARM
    ...AXLE, FRONT ARM
  • 15
    3604-255 ...BUSHING, AXLE
    ...BUSHING, AXLE
  • 16
    8020-225 SCREW, CAP
    SCREW, CAP
  • 17
    1704-495 SHOCK ABSORBER, FRONT ARM
    SHOCK ABSORBER, FRONT ARM
  • 18
    1603-890 RETAINER, SPRING
    RETAINER, SPRING
  • 19
    0603-259 NUT, SPRING RETAINER
    NUT, SPRING RETAINER
  • 20
    0704-798 NUT, RETAINER - MACHINED
    NUT, RETAINER - MACHINED
  • 21
    1603-531 AXLE, SHOCK
    AXLE, SHOCK
  • 22
    1623-220 SCREW, CAP
    SCREW, CAP
  • 23
    2604-407 BUSHING, SHOCK
    BUSHING, SHOCK
  • 24
    0604-790 COVER, SHOCK
    COVER, SHOCK
  • 25
    2604-723 SPRING, COMPRESSION - TITANIUM
    SPRING, COMPRESSION - TITANIUM
  • 26
    0214-025 CLAMP, RESERVOIR
    CLAMP, RESERVOIR
  • 27
    1604-935 SUPPORT, HOSE
    SUPPORT, HOSE
