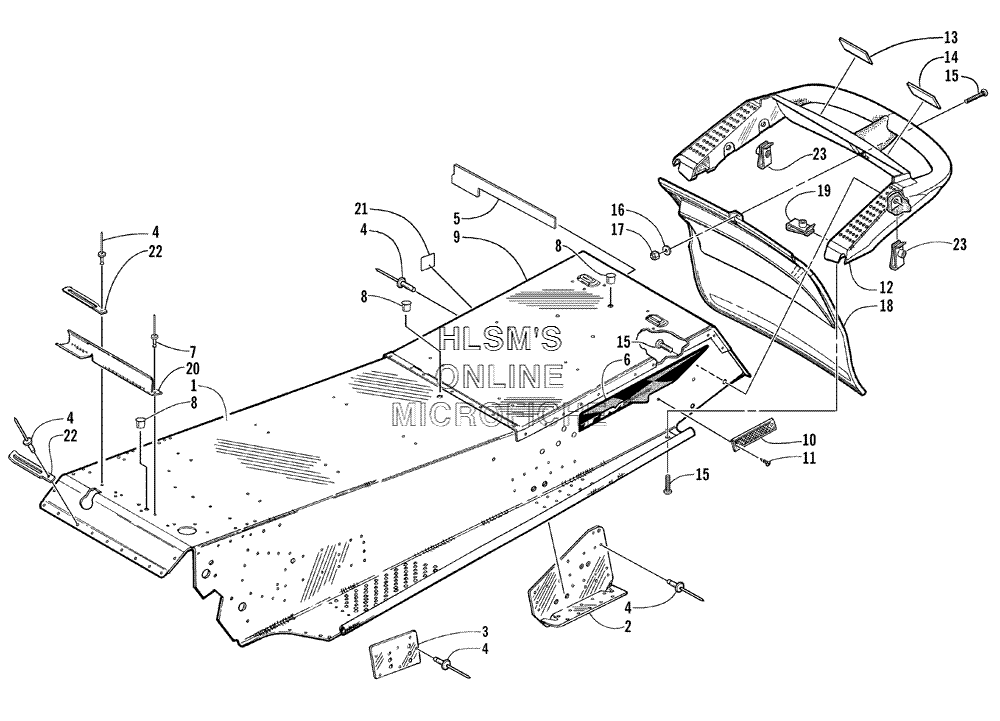

TUNNEL AND REAR BUMPER для Arctic Cat Powder Special 2K - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    0718-696 TUNNEL ASSEMBLY (INC. 2)
    TUNNEL ASSEMBLY (INC. 2)
  • 2
    0716-906 BRACKET, SUSPENSION MOUNTING - RIGHT REAR
    BRACKET, SUSPENSION MOUNTING - RIGHT REAR
  • 2
    0716-907 BRACKET, SUSPENSION MOUNTING - LEFT REAR
    BRACKET, SUSPENSION MOUNTING - LEFT REAR
  • 3
    1606-161 PLATE, SUSPENSION MOUNTING - FRONT
    PLATE, SUSPENSION MOUNTING - FRONT
  • 4
    8060-506 RIVET
    RIVET
  • 5
    2611-940 DECAL, TUNNEL - REAR
    DECAL, TUNNEL - REAR
  • 6
    3611-628 DECAL, TUNNEL - RIGHT
    DECAL, TUNNEL - RIGHT
  • 6
    3611-629 DECAL, TUNNEL - LEFT
    DECAL, TUNNEL - LEFT
  • 7
    0623-166 RIVET
    RIVET
  • 8
    0623-562 PLUG, HOLE
    PLUG, HOLE
  • 9
    1606-486 PLATE, END - REAR TUNNEL
    PLATE, END - REAR TUNNEL
  • 10
    0606-029 REFLECTOR, RED
    REFLECTOR, RED
  • 11
    0623-269 CLIP, RETAINING
    CLIP, RETAINING
  • 12
    1606-200 BUMPER, REAR
    BUMPER, REAR
  • 13
    1611-567 DECAL, WARNING - TOWING (FRENCH)
    DECAL, WARNING - TOWING (FRENCH)
  • 14
    1611-566 DECAL, WARNING - TOWING (ENGLISH)
    DECAL, WARNING - TOWING (ENGLISH)
  • 15
    8017-580 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    8050-217 WASHER
    WASHER
  • 17
    8040-366 NUT, LOCK
    NUT, LOCK
  • 18
    1606-202 SNOWFLAP
    SNOWFLAP
  • 18
    1606-507 SNOWFLAP, REVERSE*
    SNOWFLAP, REVERSE*
  • 19
    0623-427 NUT, U
    NUT, U
  • 20
    0607-488 BRACKET, MAIN HARNESS PROTECTOR
    BRACKET, MAIN HARNESS PROTECTOR
  • 21
    0411-053 DECAL, CE
    DECAL, CE
  • 22
    3002-964 CLAMP
    CLAMP
  • 23
    0623-771 NUT, U
    NUT, U
