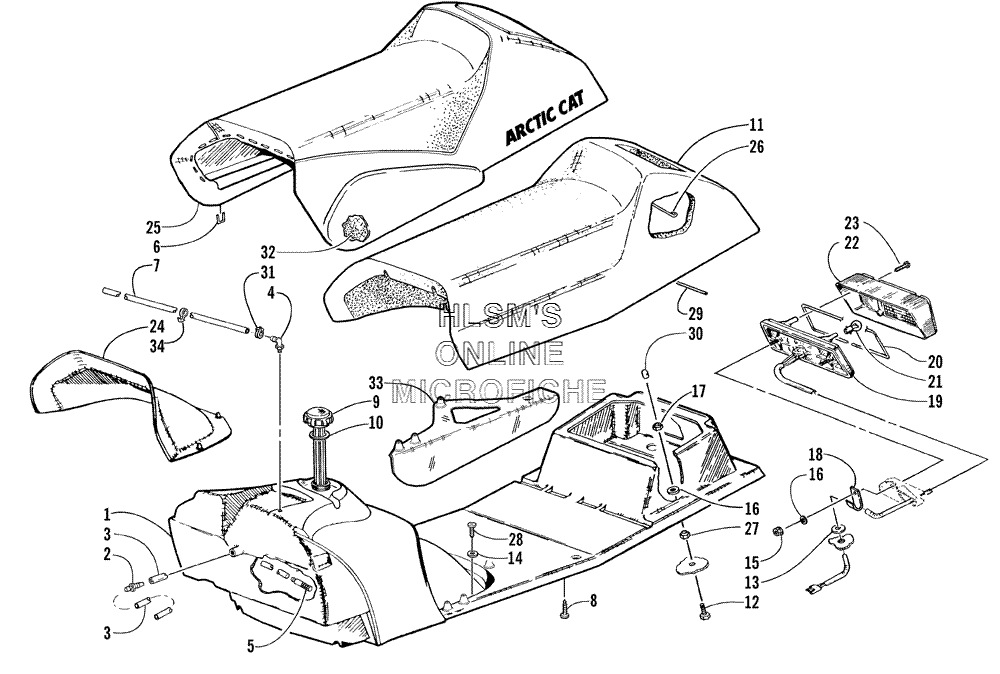

GAS TANK- SEAT AND TAILLIGHT ASSEMBLY для Arctic Cat Powder Special 2K - 2000 года выпуска`
-
№АртикулНазвание
-
-0718-777 COMPLETE SEAT ASSEMBLYCOMPLETE SEAT ASSEMBLY
-
10770-371 TANK, GAS/SEAT BASE (INC. 2-5)TANK, GAS/SEAT BASE (INC. 2-5)
-
20670-042 OUTLET, TANKOUTLET, TANK
-
30610-017 HOSE, GASLINE - 100 FTHOSE, GASLINE - 100 FT
-
30610-008 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
40670-572 VENT, GAS TANKVENT, GAS TANK
-
50510-358 STRAINER, GAS TANKSTRAINER, GAS TANK
-
60623-577 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
70610-015 HOSE, VENT - 100 FTHOSE, VENT - 100 FT
-
70610-016 HOSE, VENT - 25 FTHOSE, VENT - 25 FT
-
80623-783 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
90670-658 CAP, GAS TANK (INC. 10)CAP, GAS TANK (INC. 10)
-
100109-733 SEAL, GAS CAPSEAL, GAS CAP
-
110716-951 FOAM, SEAT CUSHIONFOAM, SEAT CUSHION
-
128002-042 SCREW, CAPSCREW, CAP
-
130617-136 SEAL, FOAM - SEAT BASESEAL, FOAM - SEAT BASE
-
148050-217 WASHERWASHER
-
150623-038 NUT, LOCKNUT, LOCK
-
160623-184 WASHERWASHER
-
178040-366 NUT, LOCKNUT, LOCK
-
183002-964 CLAMPCLAMP
-
190609-091 TAILLIGHT W/SOCKET ASSEMBLYTAILLIGHT W/SOCKET ASSEMBLY
-
200609-092 GASKET, TAILLIGHTGASKET, TAILLIGHT
-
210109-460 BULBBULB
-
220609-090 LENS, TAILLIGHTLENS, TAILLIGHT
-
230609-093 SCREW, RETAININGSCREW, RETAINING
-
241606-612 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
251706-058 COVER, SEATCOVER, SEAT
-
261606-150 WIRE, SEATWIRE, SEAT
-
278041-366 NUTNUT
-
280623-309 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
290606-057 WIRE, SEATWIRE, SEAT
-
300623-404 CAP, PROTECTORCAP, PROTECTOR
-
310623-063 HOSE, CLAMPHOSE, CLAMP
-
320617-391 FOAM, PAD - TUNNELFOAM, PAD - TUNNEL
-
331606-710 INSERT, SEAT PAD - RIGHTINSERT, SEAT PAD - RIGHT
-
331606-711 INSERT, SEAT PAD - LEFTINSERT, SEAT PAD - LEFT
-
340623-101 CLIP, ROUTINGCLIP, ROUTING
