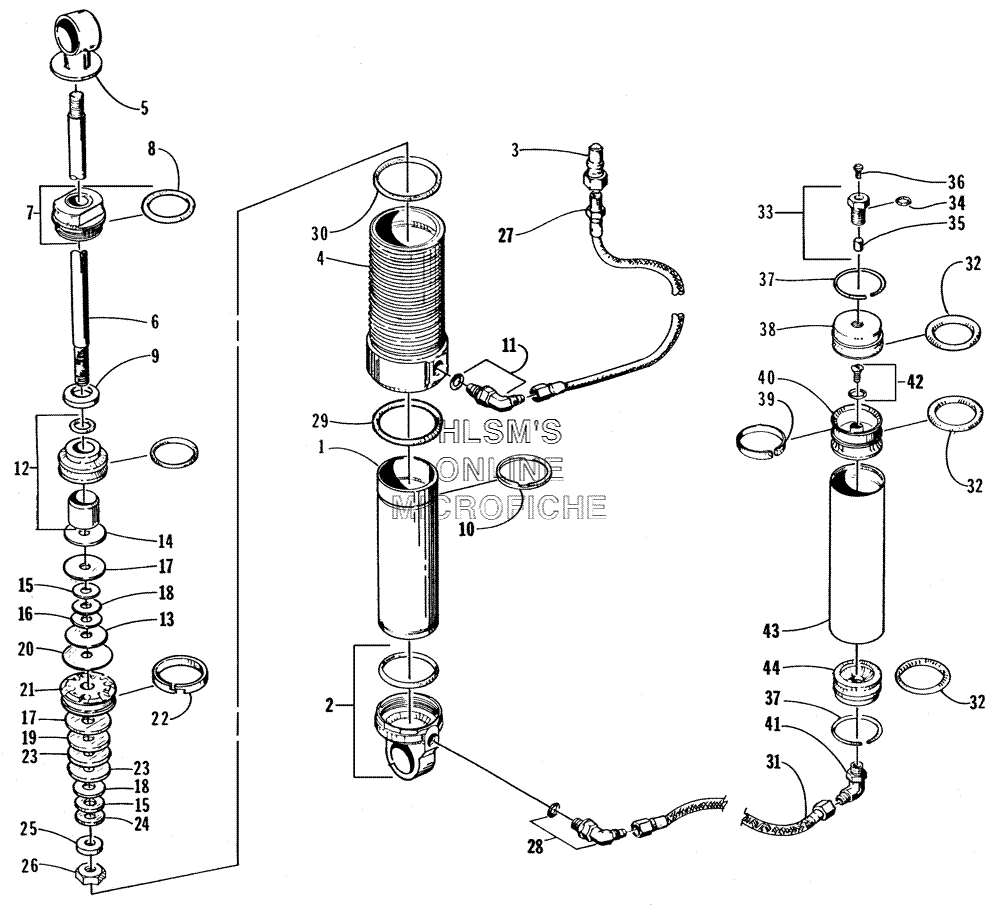

REAR SUSPENSION - FRONT ARM SHOCK ABSORBER для Arctic Cat Powder Special 2K - 2000 года выпуска

  • №
    Артикул
    Название
  • -
    1604-385 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • -
    0637-101 SHOCK REBUILD KIT
    SHOCK REBUILD KIT
  • 1
    1604-246 BODY, SHOCK
    BODY, SHOCK
  • 2
    0704-328 ENDCAP, SHOCK
    ENDCAP, SHOCK
  • 3
    1604-251 COUPLER, MALE - END
    COUPLER, MALE - END
  • 4
    1604-312 SLEEVE, THREADED - OUTER
    SLEEVE, THREADED - OUTER
  • 5
    0603-535 EYELET
    EYELET
  • 6
    1604-247 ROD, SHOCK
    ROD, SHOCK
  • 7
    0703-338 ENDCAP, SHOCK (INC. 8)
    ENDCAP, SHOCK (INC. 8)
  • 8
    0603-294 O-RING
    O-RING
  • 9
    0604-802 SPACER
    SPACER
  • 10
    0604-808 RING, SPLIT
    RING, SPLIT
  • 11
    1604-311 ELBOW, W/O-RING
    ELBOW, W/O-RING
  • 12
    1604-248 PISTON, SEPARATOR - ASSEMBLY
    PISTON, SEPARATOR - ASSEMBLY
  • 13
    0603-882 VALVE, 1.100 X 0.012 IN.
    VALVE, 1.100 X 0.012 IN.
  • 14
    0603-387 WASHER
    WASHER
  • 15
    0603-335 VALVE, 0.800 X 0.010 IN.
    VALVE, 0.800 X 0.010 IN.
  • 16
    0603-881 VALVE, 1.000 X 0.012 IN.
    VALVE, 1.000 X 0.012 IN.
  • 17
    0603-347 VALVE, 1.250 X 0.010 IN.
    VALVE, 1.250 X 0.010 IN.
  • 18
    0603-338 VALVE, 0.900 X 0.010 IN.
    VALVE, 0.900 X 0.010 IN.
  • 19
    0603-344 VALVE, 1.100 X 0.010 IN.
    VALVE, 1.100 X 0.010 IN.
  • 20
    0603-891 VALVE, 1.300 X 0.012 IN.
    VALVE, 1.300 X 0.012 IN.
  • 21
    0603-206 PISTON, ORIFICE 0.059 IN.
    PISTON, ORIFICE 0.059 IN.
  • 22
    0603-292 STRAP, PISTON - TEFLON
    STRAP, PISTON - TEFLON
  • 23
    0603-341 VALVE, 1.000 X 0.010 IN.
    VALVE, 1.000 X 0.010 IN.
  • 24
    0603-332 VALVE, 0.700 X 0.010 IN.
    VALVE, 0.700 X 0.010 IN.
  • 25
    0603-389 WASHER, BACKUP
    WASHER, BACKUP
  • 26
    0603-301 NUT, LOCK
    NUT, LOCK
  • 27
    1604-249 HOSE, ADJUSTER/SHOCK - 30 IN.
    HOSE, ADJUSTER/SHOCK - 30 IN.
  • 28
    0604-811 ELBOW, W/O-RING (SHOCK/RESERVOIR)
    ELBOW, W/O-RING (SHOCK/RESERVOIR)
  • 29
    0604-809 O-RING
    O-RING
  • 30
    0604-810 O-RING
    O-RING
  • 31
    1604-250 HOSE, RESERVOIR - ASSEMBLY
    HOSE, RESERVOIR - ASSEMBLY
  • 32
    0603-447 O-RING
    O-RING
  • 33
    0703-341 VALVE, PRESSURE - ASSEMBLY (INC. 34 AND 35)
    VALVE, PRESSURE - ASSEMBLY (INC. 34 AND 35)
  • 34
    1604-318 O-RING
    O-RING
  • 36
    0674-097 SCREW, MACHINE
    SCREW, MACHINE
  • 37
    0604-521 RETAINER
    RETAINER
  • 38
    0603-443 ENDCAP, RESERVOIR (VALVE SIDE)
    ENDCAP, RESERVOIR (VALVE SIDE)
  • 39
    0603-393 STRAP, PISTON - TEFLON
    STRAP, PISTON - TEFLON
  • 40
    0603-392 PISTON, INTERNAL FLOATING
    PISTON, INTERNAL FLOATING
  • 41
    0604-998 ELBOW
    ELBOW
  • 42
    0703-340 SCREW, RELIEF - W/O-RING
    SCREW, RELIEF - W/O-RING
  • 43
    1604-098 BODY, RESERVOIR
    BODY, RESERVOIR
  • 44
    0603-390 ENDCAP, RESERVOIR
    ENDCAP, RESERVOIR
