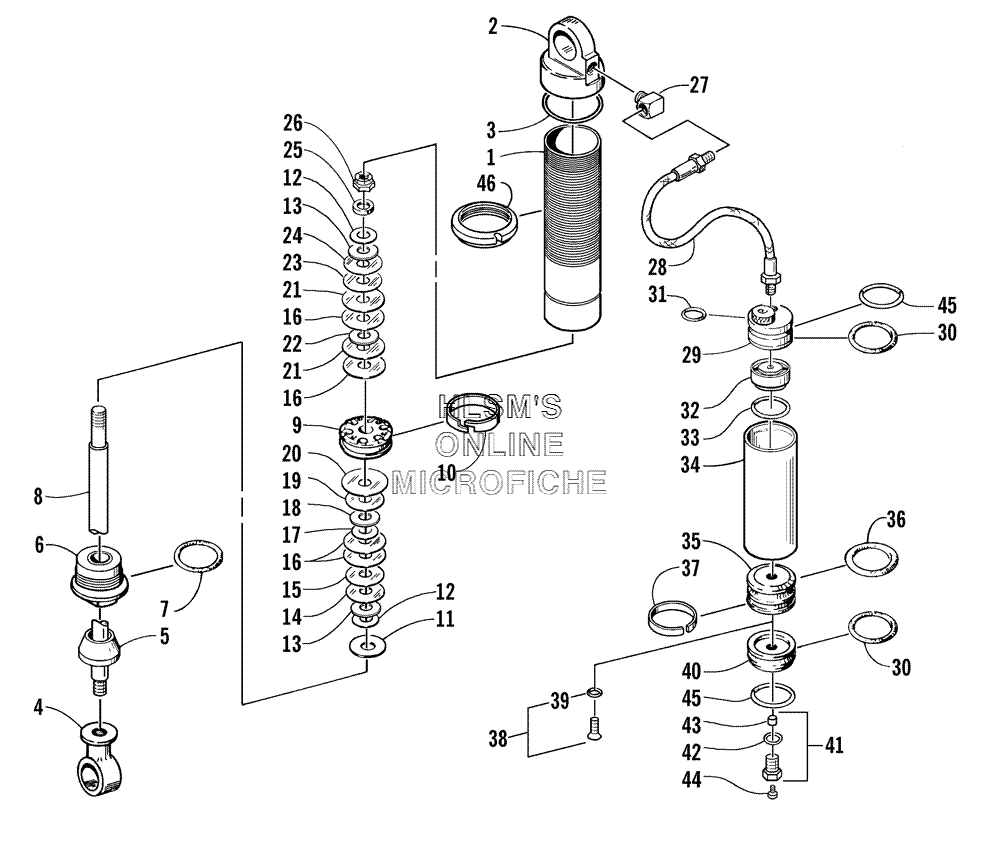

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat Powder Special 2K - 2000 года выпуска

  • №
    Артикул
    Название
  • -
    1603-341 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • -
    0637-102 SHOCK REBUILD SHOCK KIT
    SHOCK REBUILD SHOCK KIT
  • 1
    1603-359 BODY, SHOCK
    BODY, SHOCK
  • 2
    1603-234 END CAP, SHOCK (INC. 3)
    END CAP, SHOCK (INC. 3)
  • 3
    0603-438 O-RING, END CAP
    O-RING, END CAP
  • 4
    0603-920 EYELET
    EYELET
  • 5
    0603-290 BUMPER, SHOCK
    BUMPER, SHOCK
  • 6
    1604-419 CAP, SHOCK - ASSEMBLY (INC. 7)
    CAP, SHOCK - ASSEMBLY (INC. 7)
  • 7
    1604-420 O-RING
    O-RING
  • 8
    0603-923 ROD, SHOCK
    ROD, SHOCK
  • 9
    0604-741 PISTON, 0.093 IN. ORIFICE
    PISTON, 0.093 IN. ORIFICE
  • 10
    0603-292 STRAP, PISTON - TEFLON
    STRAP, PISTON - TEFLON
  • 11
    0603-540 WASHER, TOP OUT
    WASHER, TOP OUT
  • 12
    0603-355 VALVE, 0.800 X 0.010 IN.
    VALVE, 0.800 X 0.010 IN.
  • 13
    0603-338 VALVE, 0.900 X 0.010 IN.
    VALVE, 0.900 X 0.010 IN.
  • 14
    0603-340 VALVE, 1.000 X 0.008 IN.
    VALVE, 1.000 X 0.008 IN.
  • 15
    0603-343 VALVE, 1.100 X 0.008 IN.
    VALVE, 1.100 X 0.008 IN.
  • 16
    0603-345 VALVE, 1.250 X 0.006 IN.
    VALVE, 1.250 X 0.006 IN.
  • 17
    0603-331 VALVE, 0.700 X 0.008 IN.
    VALVE, 0.700 X 0.008 IN.
  • 18
    0603-336 VALVE, 0.900 X 0.006 IN.
    VALVE, 0.900 X 0.006 IN.
  • 19
    0603-339 VALVE, 1.000 X 0.006 IN.
    VALVE, 1.000 X 0.006 IN.
  • 20
    0603-349 VALVE, 1.300 X 0.008 IN.
    VALVE, 1.300 X 0.008 IN.
  • 21
    0603-346 VALVE, 1.250 X 0.008 IN.
    VALVE, 1.250 X 0.008 IN.
  • 22
    0603-894 VALVE, 0.900 X 0.004 IN.
    VALVE, 0.900 X 0.004 IN.
  • 23
    0603-344 VALVE, 1.100 X 0.010 IN.
    VALVE, 1.100 X 0.010 IN.
  • 24
    0603-341 VALVE, 1.000 X 0.010 IN.
    VALVE, 1.000 X 0.010 IN.
  • 25
    0603-389 WASHER, BACKUP
    WASHER, BACKUP
  • 26
    0603-301 NUT, CAP
    NUT, CAP
  • 27
    1603-349 FITTING, 90Ш ELBOW
    FITTING, 90Ш ELBOW
  • 28
    0603-922 HOSE, RESERVOIR TO SHOCK
    HOSE, RESERVOIR TO SHOCK
  • 29
    0603-669 END CAP, RESERVOIR (INC. 30 AND 31)
    END CAP, RESERVOIR (INC. 30 AND 31)
  • 30
    0603-671 O-RING
    O-RING
  • 31
    0603-670 O-RING
    O-RING
  • 32
    1603-352 PLATE, DAMPENING - ASSEMBLY
    PLATE, DAMPENING - ASSEMBLY
  • 33
    0604-808 RETAINER, DAMPENING ASSEMBLY
    RETAINER, DAMPENING ASSEMBLY
  • 34
    0603-672 BODY, RESERVOIR
    BODY, RESERVOIR
  • 35
    1603-354 PISTON, RESERVOIR (INC. 36)
    PISTON, RESERVOIR (INC. 36)
  • 36
    1603-236 O-RING
    O-RING
  • 37
    1603-235 STRAP, PISTON - TEFLON
    STRAP, PISTON - TEFLON
  • 38
    1604-316 SCREW, PISTON (INC. 39)
    SCREW, PISTON (INC. 39)
  • 39
    1604-425 O-RING
    O-RING
  • 40
    1603-353 END CAP, RESERVOIR (INC. 30 AND 41)
    END CAP, RESERVOIR (INC. 30 AND 41)
  • 41
    0703-341 VALVE, PRESSURE (INC. 42 AND 43)
    VALVE, PRESSURE (INC. 42 AND 43)
  • 42
    0603-680 O-RING, VALVE
    O-RING, VALVE
  • 44
    0624-097 SCREW, VALVE
    SCREW, VALVE
  • 45
    0604-992 RETAINER, END CAP
    RETAINER, END CAP
  • 46
    0603-805 NUT, SPRING ADJUSTER
    NUT, SPRING ADJUSTER
