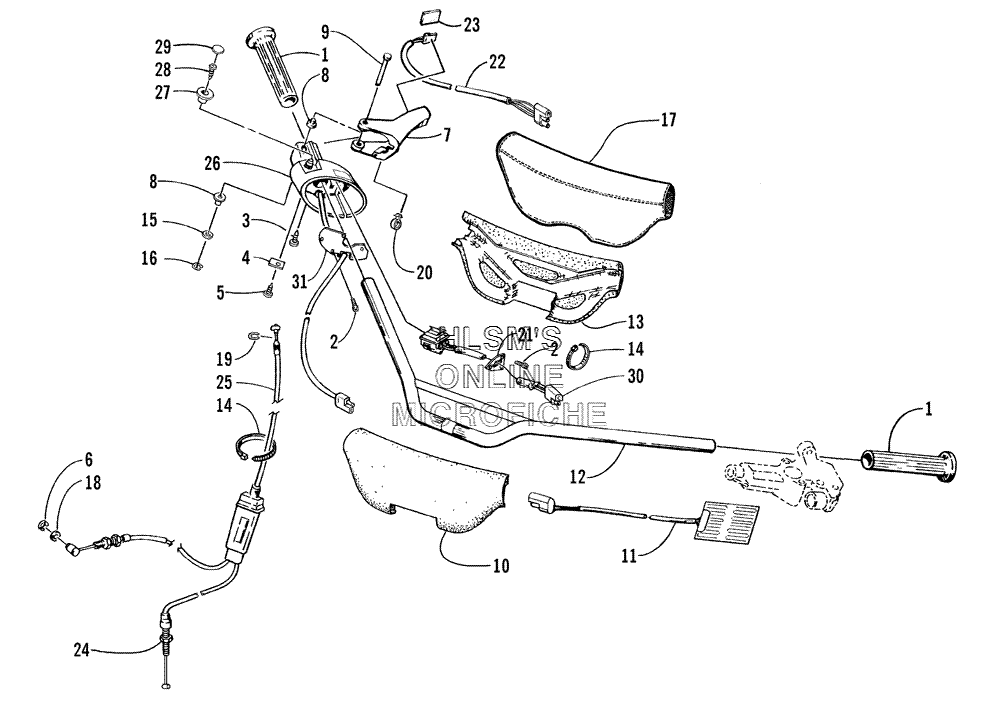

HANDLEBAR AND CONTROLS для Arctic Cat Powder Special 2K - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    0117-793 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 2
    0609-312 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 3
    0609-085 SCREW, MACHINE
    SCREW, MACHINE
  • 4
    0609-319 CLAMP, HARNESS - SINGLE
    CLAMP, HARNESS - SINGLE
  • 5
    0609-321 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 6
    0124-057 E-RING
    E-RING
  • 7
    0609-477 LEVER, THROTTLE
    LEVER, THROTTLE
  • 8
    0609-038 SEAL
    SEAL
  • 9
    0609-317 AXLE, LEVER - THROTTLE
    AXLE, LEVER - THROTTLE
  • 10
    0605-354 PAD, HANDLEBAR - FRONT
    PAD, HANDLEBAR - FRONT
  • 11
    0609-375 ELEMENT, HANDLEBAR HEATER
    ELEMENT, HANDLEBAR HEATER
  • 12
    0705-172 HANDLEBAR
    HANDLEBAR
  • 13
    0605-353 PAD, HANDLEBAR - REAR
    PAD, HANDLEBAR - REAR
  • 14
    0123-788 TIE, CABLE - 7 IN.
    TIE, CABLE - 7 IN.
  • 15
    0609-036 WASHER
    WASHER
  • 16
    0609-040 RING, RETAINING
    RING, RETAINING
  • 17
    0705-304 WRAP, HANDLEBAR
    WRAP, HANDLEBAR
  • 18
    0124-056 WASHER
    WASHER
  • 19
    0123-231 RING, RETAINING
    RING, RETAINING
  • 20
    0623-262 CLIP, WIRE
    CLIP, WIRE
  • 21
    0609-378 PLATE, COVER
    PLATE, COVER
  • 22
    0609-373 THUMBWARMER ASSEMBLY
    THUMBWARMER ASSEMBLY
  • 23
    0617-248 PAD, INSULATOR
    PAD, INSULATOR
  • 24
    0623-464 NUT
    NUT
  • 25
    0687-100 CABLE, THROTTLE
    CABLE, THROTTLE
  • 26
    0609-386 SWITCH, THROTTLE (INC. 2, 3, 21, AND 27-31)
    SWITCH, THROTTLE (INC. 2, 3, 21, AND 27-31)
  • 27
    0609-282 KNOB, EMERGENCY STOP
    KNOB, EMERGENCY STOP
  • 28
    0623-215 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 29
    0609-283 DECAL, MARK PLATE
    DECAL, MARK PLATE
  • 30
    0609-382 CONTROL, THUMBWARMER
    CONTROL, THUMBWARMER
  • 31
    0609-316 COVER, THROTTLE SWITCH
    COVER, THROTTLE SWITCH
