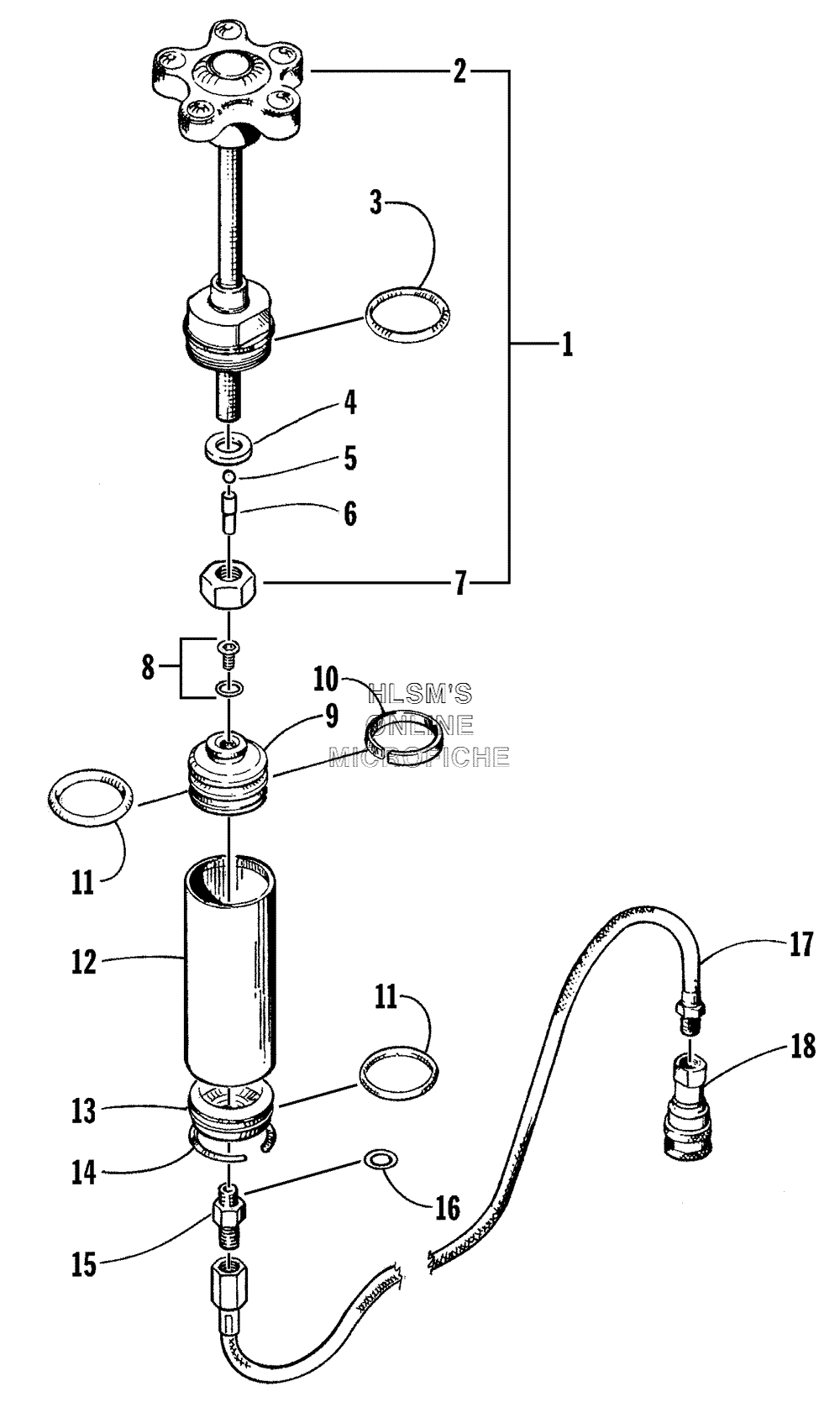

REMOTE SHOCK LIMITER ASSEMBLY для Arctic Cat Powder Special 2K - 2000 года выпуска

  • №
    Артикул
    Название
  • -
    1604-191 COMPLETE ASSEMBLY
    COMPLETE ASSEMBLY
  • 1
    1604-314 ENDCAP AND ADJUSTER KNOB ASSEMBLY (INC. 2-7)
    ENDCAP AND ADJUSTER KNOB ASSEMBLY (INC. 2-7)
  • 2
    1604-252 KNOB, ADJUSTER - W/SHAFT
    KNOB, ADJUSTER - W/SHAFT
  • 3
    0603-294 O-RING
    O-RING
  • 4
    0603-389 WASHER, BACKUP
    WASHER, BACKUP
  • 5
    1604-315 BALL, ADJUSTER
    BALL, ADJUSTER
  • 6
    1604-254 PIN, DOWEL
    PIN, DOWEL
  • 7
    1604-253 NUT, STOP - ADJUSTABLE KNOB
    NUT, STOP - ADJUSTABLE KNOB
  • 8
    1604-316 SCREW, RELIEF - W/O O-RING
    SCREW, RELIEF - W/O O-RING
  • 9
    0704-329 PISTON, INTERNAL FLOATING W/O STRAP
    PISTON, INTERNAL FLOATING W/O STRAP
  • 10
    0603-393 STRAP, PISTON
    STRAP, PISTON
  • 11
    0603-675 O-RING
    O-RING
  • 12
    0604-528 BODY, ADJUSTER - RESERVOIR
    BODY, ADJUSTER - RESERVOIR
  • 13
    1604-319 ENDCAP, RESERVOIR
    ENDCAP, RESERVOIR
  • 14
    1604-258 RETAINER
    RETAINER
  • 15
    1604-317 FITTING, RESERVOIR ENDCAP
    FITTING, RESERVOIR ENDCAP
  • 16
    1604-318 O-RING - ENDCAP FITTING
    O-RING - ENDCAP FITTING
  • 17
    1604-256 HOSE, EXTENSION - TEFLON
    HOSE, EXTENSION - TEFLON
  • 18
    1604-257 COUPLER, FEMALE - END
    COUPLER, FEMALE - END
