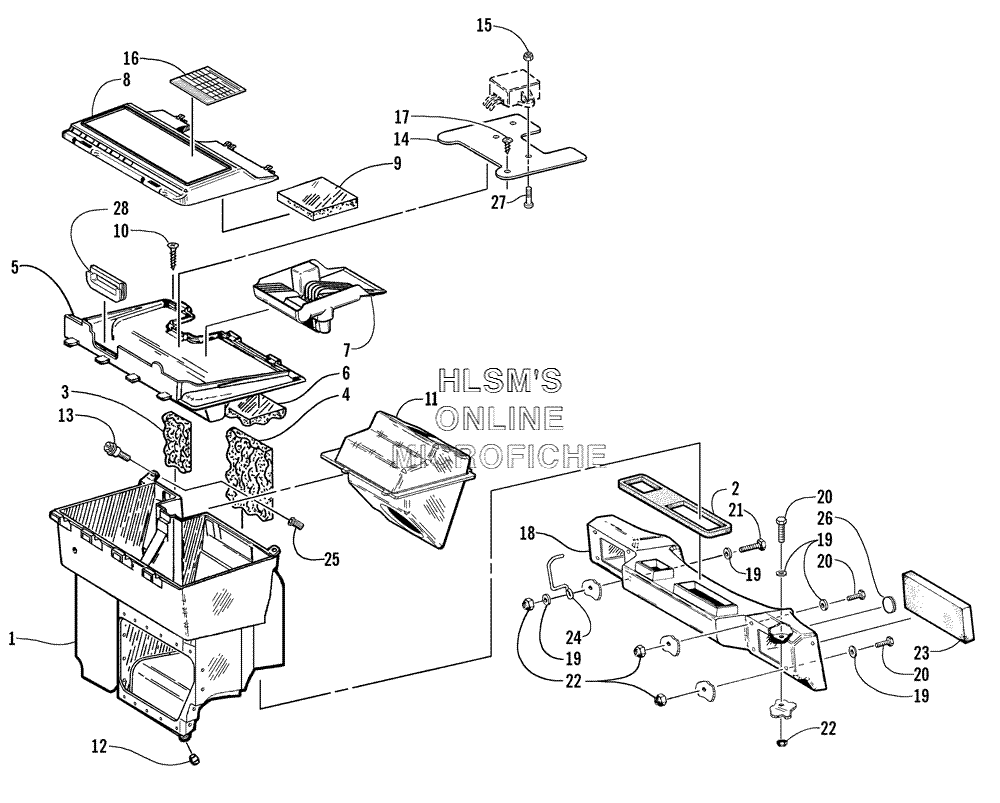

AIR SILENCER ASSEMBLY для Arctic Cat Powder Special 2K - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    0770-347 AIR SILENCER ASSEMBLY
    AIR SILENCER ASSEMBLY
  • 2
    0617-245 SEAL, AIR SILENCER PLENUM
    SEAL, AIR SILENCER PLENUM
  • 3
    0617-252 FOAM, AIR SILENCER - BACK MAG
    FOAM, AIR SILENCER - BACK MAG
  • 4
    0617-253 FOAM, AIR SILENCER - BACK PTO
    FOAM, AIR SILENCER - BACK PTO
  • 5
    0770-349 COVER, AIR SILENCER
    COVER, AIR SILENCER
  • 6
    0617-251 FOAM, AIR SILENCER - TOP LID
    FOAM, AIR SILENCER - TOP LID
  • 7
    0670-826 TRAY, MANUAL - TOOLBOX
    TRAY, MANUAL - TOOLBOX
  • 8
    0670-729 COVER, TOOLBOX
    COVER, TOOLBOX
  • 9
    0617-294 FOAM, TOOLBOX - UPPER
    FOAM, TOOLBOX - UPPER
  • 10
    0623-770 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 11
    0670-879 RESONATOR, Q-WAVE - INLET
    RESONATOR, Q-WAVE - INLET
  • 12
    1606-038 BUMPER, AIR SILENCER
    BUMPER, AIR SILENCER
  • 13
    0623-780 SCREW, HEX SHOULDER
    SCREW, HEX SHOULDER
  • 14
    1606-760 PLATE, CDI
    PLATE, CDI
  • 15
    8041-366 NUT, LOCK
    NUT, LOCK
  • 16
    3611-617 DECAL, JET CHART (POWDER SPECIAL)
    DECAL, JET CHART (POWDER SPECIAL)
  • 17
    0623-309 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 18
    0670-828 PLENUM, AIR SILENCER
    PLENUM, AIR SILENCER
  • 19
    8050-222 WASHER
    WASHER
  • 20
    8002-040 SCREW, CAP
    SCREW, CAP
  • 21
    8002-042 SCREW, CAP
    SCREW, CAP
  • 22
    8040-366 NUT, LOCK
    NUT, LOCK
  • 23
    0617-270 FOAM, PLENUM - INTAKE
    FOAM, PLENUM - INTAKE
  • 24
    0645-269 BRACKET, GUARD - HARNESS/ROPE
    BRACKET, GUARD - HARNESS/ROPE
  • 25
    0623-627 INSERT
    INSERT
  • 26
    0623-078 DISC, VELCRO
    DISC, VELCRO
  • 27
    8017-580 SCREW, MACHINE
    SCREW, MACHINE
  • 28
    0670-827 GROMMET, ECU
    GROMMET, ECU
