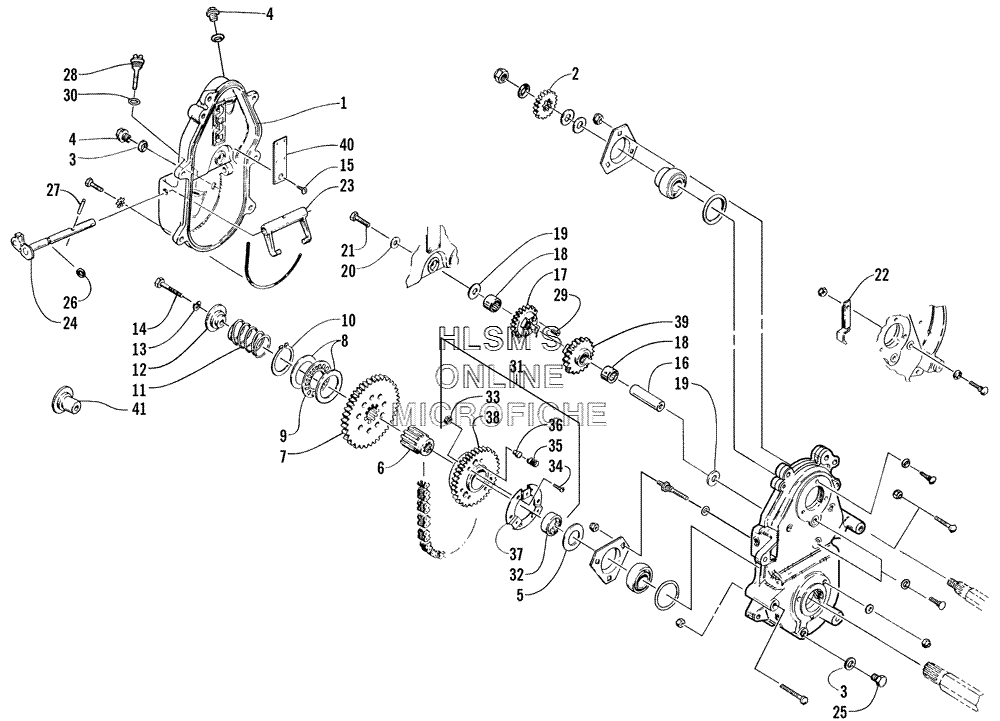

DRIVE/REVERSE DROPCASE ASSEMBLY для Arctic Cat Powder Special 2K - 2000 года выпуска

  • №
    Артикул
    Название
  • -
    1639-016 REVERSE OPTIONAL KIT
    REVERSE OPTIONAL KIT
  • 1
    0602-916 COVER, DROPCASE
    COVER, DROPCASE
  • 2
    0602-444 SPROCKET, 19T
    SPROCKET, 19T
  • 3
    0123-641 WASHER, FIBER
    WASHER, FIBER
  • 4
    0623-293 PLUG
    PLUG
  • 5
    0602-012 SPACER, SHAFT
    SPACER, SHAFT
  • 6
    0602-135 EXTENSION, DRIVESHAFT
    EXTENSION, DRIVESHAFT
  • 7
    0702-048 GEAR, REVERSE - 55T (INC. 8-10)
    GEAR, REVERSE - 55T (INC. 8-10)
  • 8
    0602-023 WASHER, THRUST
    WASHER, THRUST
  • 9
    0602-022 BEARING, THRUST
    BEARING, THRUST
  • 10
    0602-024 RING, RETAINING
    RING, RETAINING
  • 11
    0602-028 SPRING, RETURN
    SPRING, RETURN
  • 12
    0602-014 RETAINER, SHAFT
    RETAINER, SHAFT
  • 13
    8051-277 WASHER, LOCK
    WASHER, LOCK
  • 14
    8002-230 SCREW, CAP
    SCREW, CAP
  • 15
    0623-081 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 16
    0602-094 SHAFT, REVERSE
    SHAFT, REVERSE
  • 17
    0702-261 IDLER, REVERSE ASSEMBLY - 19T (INC. ONE NO.18)
    IDLER, REVERSE ASSEMBLY - 19T (INC. ONE NO.18)
  • 18
    0602-018 BEARING
    BEARING
  • 19
    0602-215 SPACER, REVERSE IDLER
    SPACER, REVERSE IDLER
  • 20
    8050-242 WASHER
    WASHER
  • 21
    8002-130 SCREW, CAP
    SCREW, CAP
  • 22
    0602-466 BRACKET, CHAIN BACKING
    BRACKET, CHAIN BACKING
  • 23
    0602-085 FORK, SHIFT
    FORK, SHIFT
  • 24
    0702-291 SHAFT, SHIFT FORK
    SHAFT, SHIFT FORK
  • 25
    0602-479 PLUG, DRAIN
    PLUG, DRAIN
  • 26
    0602-021 SEAL, O-RING
    SEAL, O-RING
  • 27
    0623-542 PIN, ROLL
    PIN, ROLL
  • 28
    0602-483 STICK, OIL LEVEL
    STICK, OIL LEVEL
  • 29
    0602-366 ALIGNER, IDLER
    ALIGNER, IDLER
  • 30
    0670-183 O-RING, OIL STICK
    O-RING, OIL STICK
  • 31
    0702-170 SPROCKET ASSEMBLY - 39T (INC. 32-38)
    SPROCKET ASSEMBLY - 39T (INC. 32-38)
  • 32
    0602-016 BEARING
    BEARING
  • 33
    0123-430 NUT
    NUT
  • 34
    0623-182 SCREW, CAP
    SCREW, CAP
  • 35
    0602-138 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 36
    0602-133 PIN, SLIP
    PIN, SLIP
  • 37
    0602-144 RETAINER, SPRING
    RETAINER, SPRING
  • 39
    0702-260 IDLER, REVERSE ASSEMBLY - 24T (INC. ONE NO.18)
    IDLER, REVERSE ASSEMBLY - 24T (INC. ONE NO.18)
  • 40
    0602-112 COVER, OIL VENT
    COVER, OIL VENT
  • 41
    0638-881 RETAINER, SHAFT EXTENSION
    RETAINER, SHAFT EXTENSION
