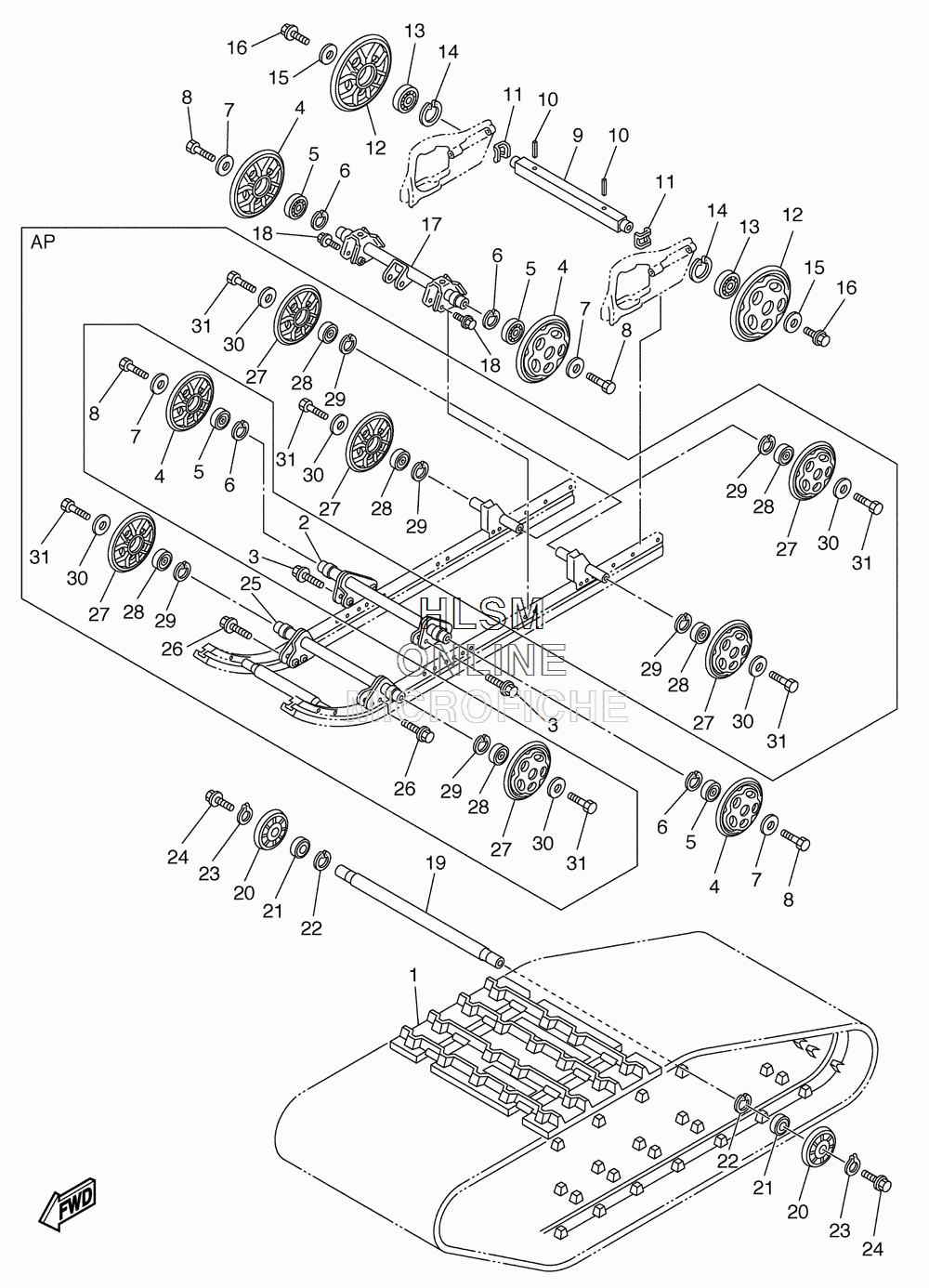

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha BRAVO T - 2010 года выпуска`
-
№АртикулНазвание
-
18BD-47110-00-00 TRACK ASSYTRACK ASSY
-
28T9-47451-00-00 BAR, SUSPENSIONBAR, SUSPENSION
-
390101-06348-00 BOLTBOLT
-
487M-47320-00-00 SUSPENSION WHEEL COMP.SUSPENSION WHEEL COMP.
-
593306-00444-00 BEARINGBEARING
-
699009-42500-00 CIRCLIPCIRCLIP
-
790201-08681-00 WASHER, PLATEWASHER, PLATE
-
890109-08559-00 BOLTBOLT
-
98E3-47521-00-00 AXLE, REARAXLE, REAR
-
1091609-40040-00 PIN, SPRINGPIN, SPRING
-
118E3-47384-00-00 WASHERWASHER
-
128L4-47530-00-00 GUIDE WHEEL COMP.GUIDE WHEEL COMP.
-
1393306-20469-00 BEARINGBEARING
-
1499009-47500-00 CIRCLIPCIRCLIP
-
1590201-083A8-00 WASHER, PLATEWASHER, PLATE
-
1695827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
178V5-47451-00-00 BAR, SUSPENSIONBAR, SUSPENSION
-
1890119-08008-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
198L1-47461-00-00 IDLERIDLER
-
208H8-47320-00-00 SUSPENSION WHEEL COMP.SUSPENSION WHEEL COMP.
-
2193306-00444-00 BEARINGBEARING
-
2299009-42500-00 CIRCLIPCIRCLIP
-
2399009-20400-00 CIRCLIPCIRCLIP
-
2495827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
258T9-47451-00-00 BAR, SUSPENSIONBAR, SUSPENSION
-
2690101-06348-00 BOLTBOLT
-
2787M-47320-00-00 SUSPENSION WHEEL COMP.SUSPENSION WHEEL COMP.
-
2893306-00444-00 BEARINGBEARING
-
2999009-42500-00 CIRCLIPCIRCLIP
-
3090201-08681-00 WASHER, PLATEWASHER, PLATE
-
3190109-08559-00 BOLTBOLT
