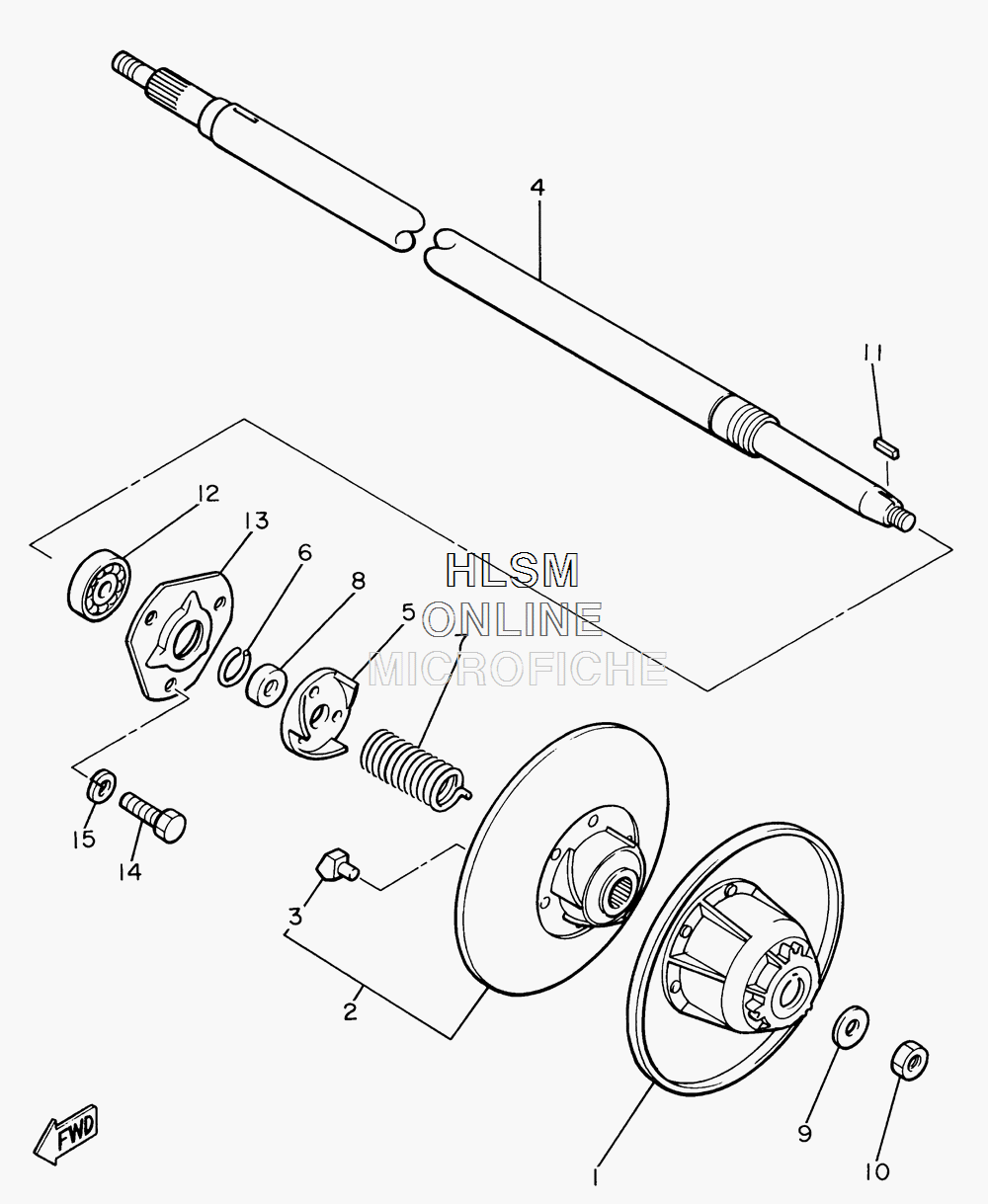

CLUTCH - DRIVEN W/ DRIVE AXLE для Yamaha BRAVO T - 2010 года выпуска`
-
№АртикулНазвание
-
18R4-17660-00-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
28R4-17670-01-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
38R4-17688-00-00 SHOE, RAMPSHOE, RAMP
-
48R4-17681-01-00 SHAFT, SECONDARYSHAFT, SECONDARY
-
58R4-17684-00-00 SEAT, SECONDARY SPRINGSEAT, SECONDARY SPRING
-
693440-25100-00 CIRCLIPCIRCLIP
-
790508-40080-00 SPRING, TORSIONSPRING, TORSION
-
890387-260W3-00 COLLARCOLLAR
-
990201-122H1-00 WASHER, PLATEWASHER, PLATE
-
1090185-12061-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1190282-05047-00 KEY, STRAIGHTKEY, STRAIGHT
-
1293306-20582-00 BEARINGBEARING
-
138R4-47631-00-00 HOUSING, BEARINGHOUSING, BEARING
-
1497027-08016-00 BOLTBOLT
-
1592907-08600-00 WASHER, PLATEWASHER, PLATE
